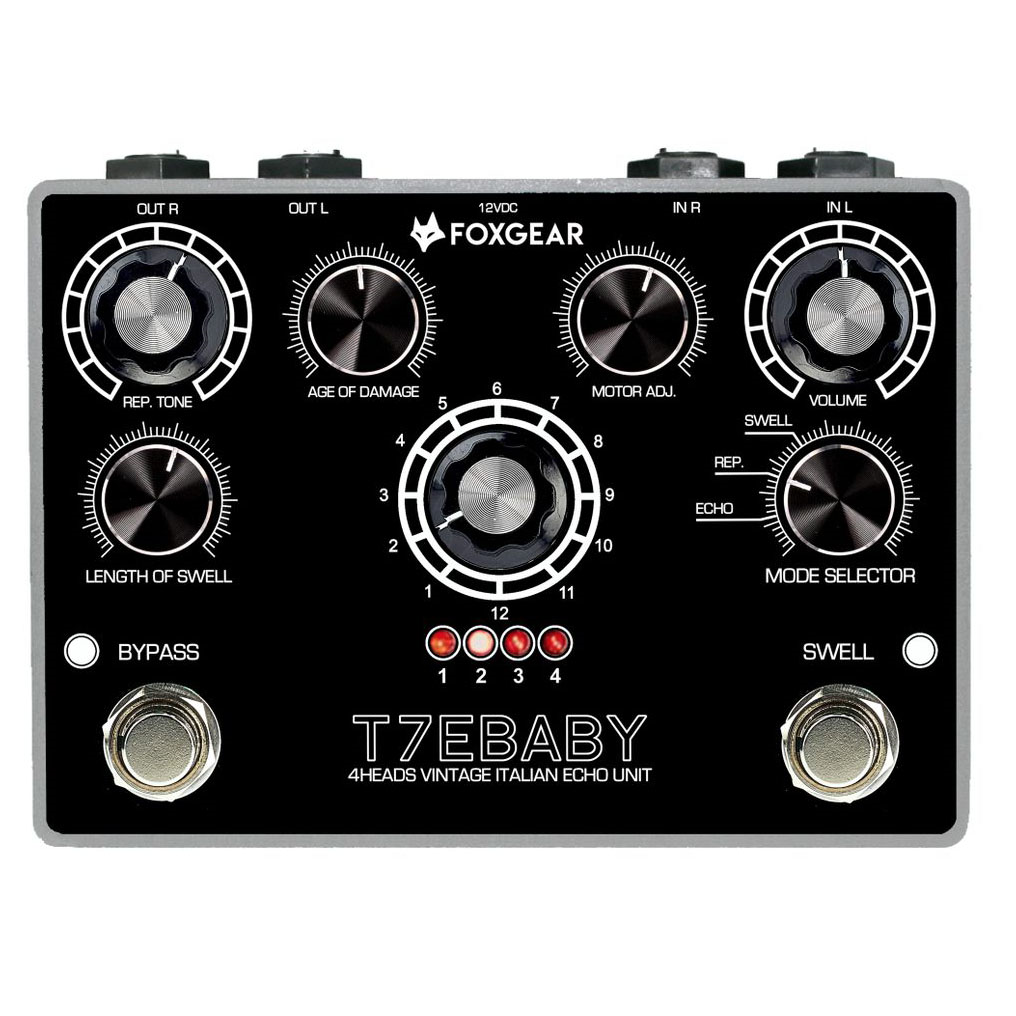

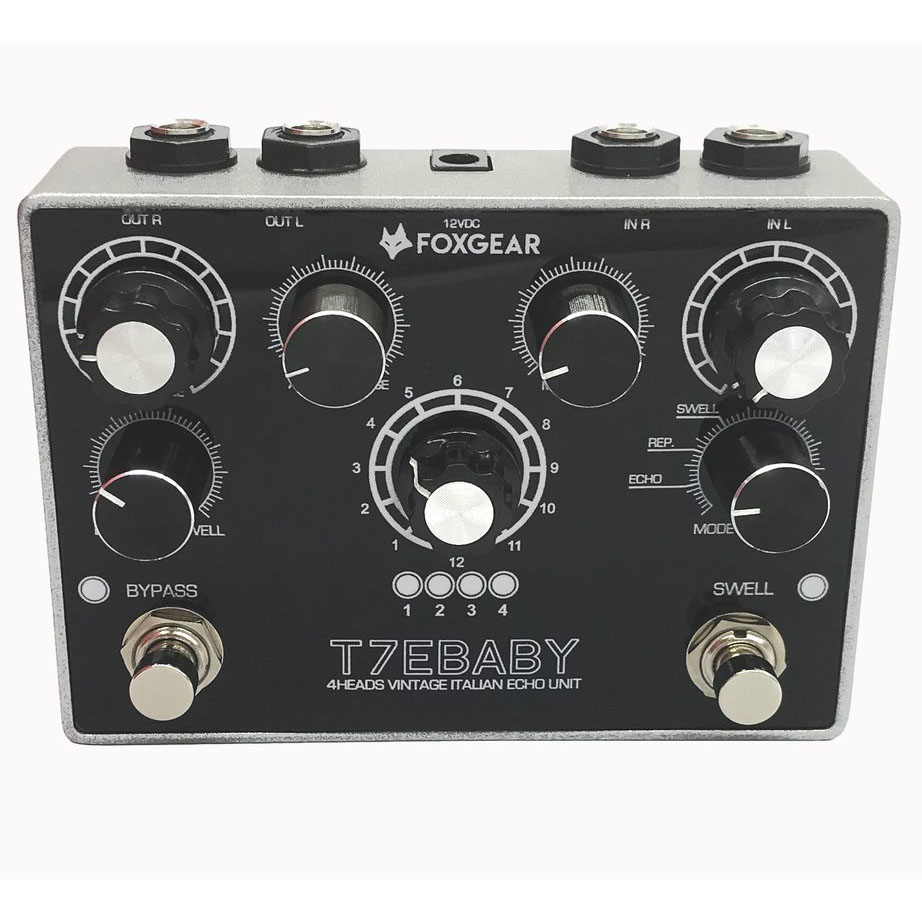

After the big success of the small Echosex Baby, FoxGear pushed the project to its max, expanding the features of our famous “Binson-inspired” circuit, with the complete palette of options that the old Binson Echorec T7E offered, with full 4 Heads combinations, STEREO ENGINE, Three working mode Echo, Rep, Swell, and the ability to recall the Swell mode as a “preset” with a dedicated footswitch.
Features
-Size: the new enclosure make it very pedalboard-friend: only 3,5” x 5”!! ( 9 x 13cm.)
- Connections: the FOXGEAR T7EBABY is equipped with full Stereo Input & output, and an internal stereo engine that works on a phase and split-frequency resulting in an unbelievable stereo 3D effect for an outstanding and lush ambient tone.
- Switching: Now available with 2 footswitches handling bypass, that is a real True Bypass assisted by relay, that lets you put it at the end of your chain between stereo pedals, and a very useful SWELL footswitch, to immediately recall the swell mode (reverb) in order to have two different presets for your ambient/echo tone.
- Motor Speed adjust: along with the other cool features of the old Echosex Baby, we’ve added this control, that let you increase the overall delay time, you can mimic a slowed speed of the magnetic drum. This allows the FOXGEAR T7EBABY over 880ms of long, lush delay, keeping the 4 heads in sync, no matter what combination of head you are using.
- Working mode Selector: Lee in the old Binson you can select the operating mode: ECHO, REP, SWELL: ECHO gives only one tap to the selected head/combination of heads, with no feedback at all. REP (Repeats) Apply the feedback to the selected head/combination of Heads, settled by the “length of swell” control. SWELL: was the Reverb setting, applying feedback to all the 4 heads. It was very used by David Gilmour of Pink Floyd in many popular songs like “time” and it can be recalled by the dedicated foot switch “SWELL” to be used as a second preset.
- Heads combinations: the Main selector let you choose the Head/combination of heads you want to use, they are settled in a very musical way, (for example, like 1/4-1/8 or dotted eight) and you are allowed to select single heads, couple, triplets, or all the 4 heads simultaneously. The useful 4 red LEDs shows the head/combination of heads in use. (this is bypassed when using Swell mode.) Refer to following Matrix for combinations/time references.
TECH SPECIFICATIONS.
Power In 12VDC (negative TIP)
Consumption at 9V 140mA
Delay Time: (H1:86ms, H2:172ms, H3:258ms, H4:344ms)
Speed Motor Adj: From 344ms to 882ms
Input Impedance <=1M Ohm
Output Impedance <=10K Ohm
