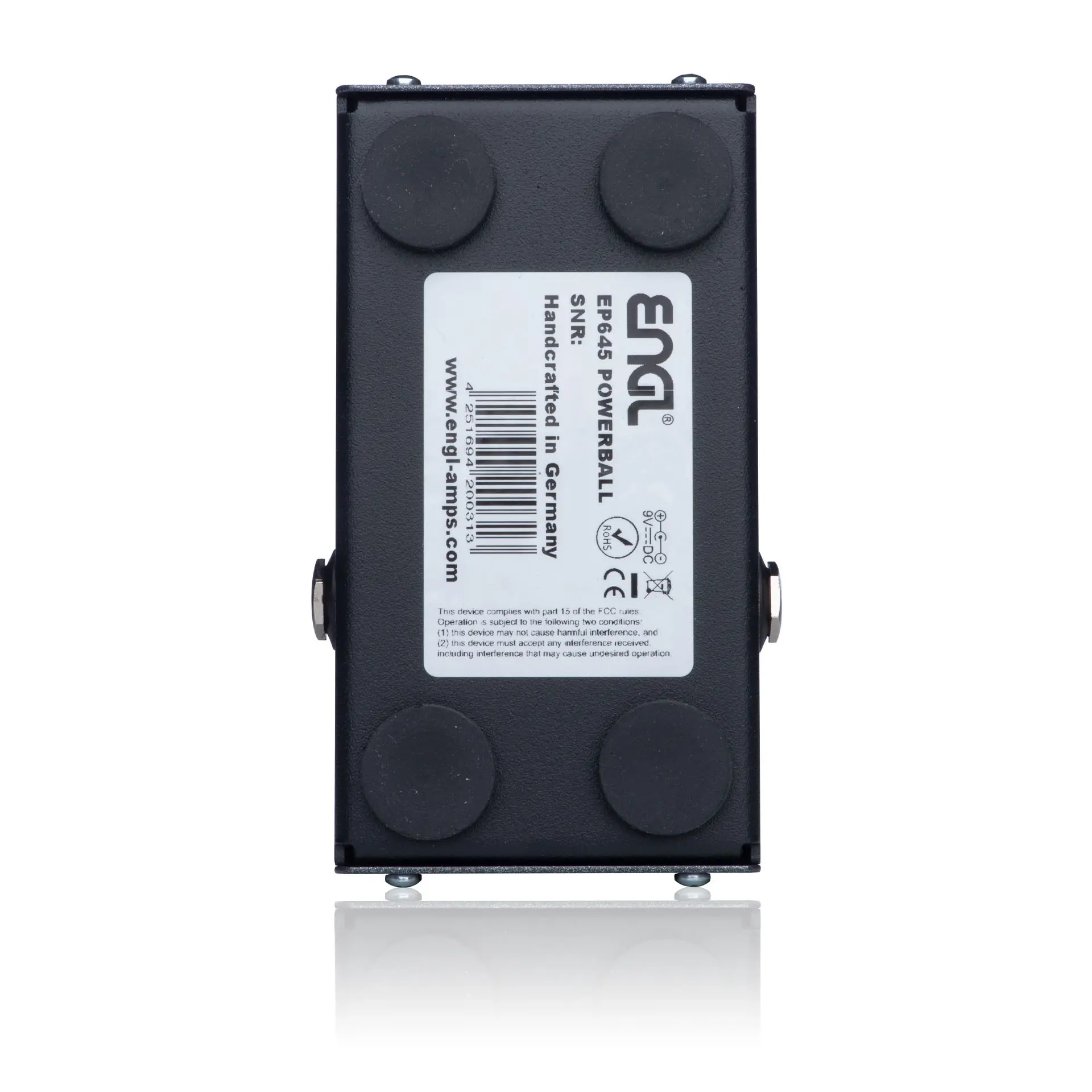

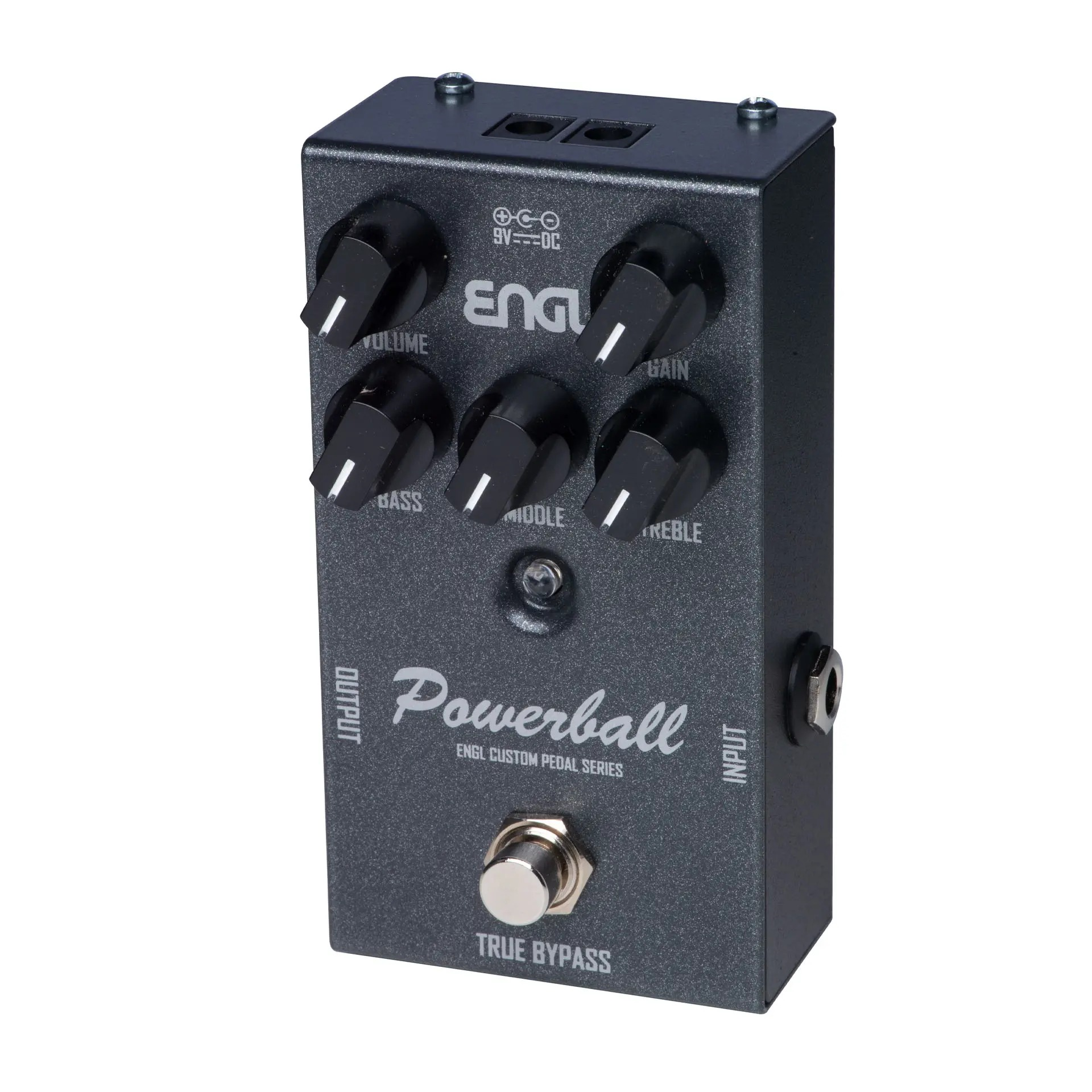

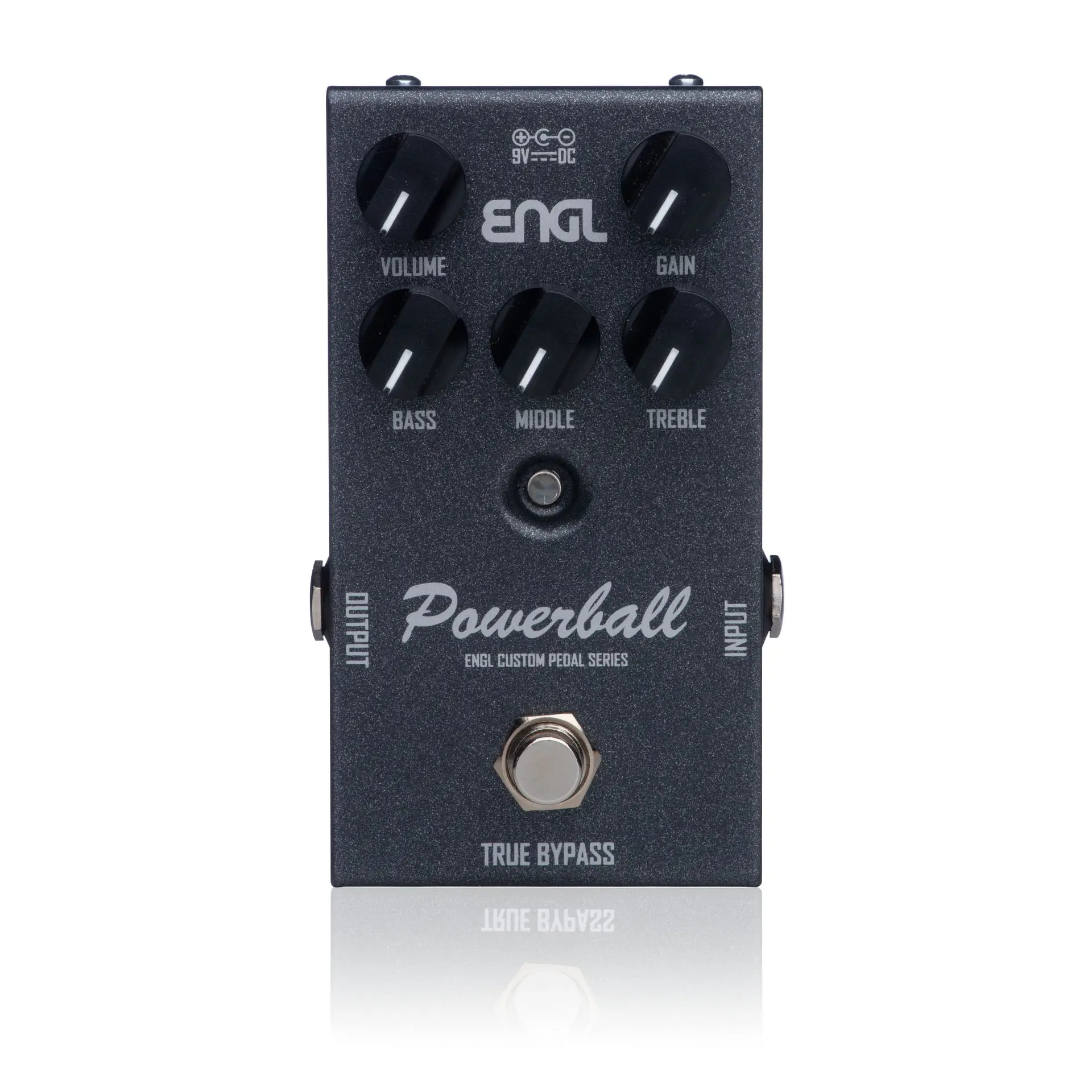

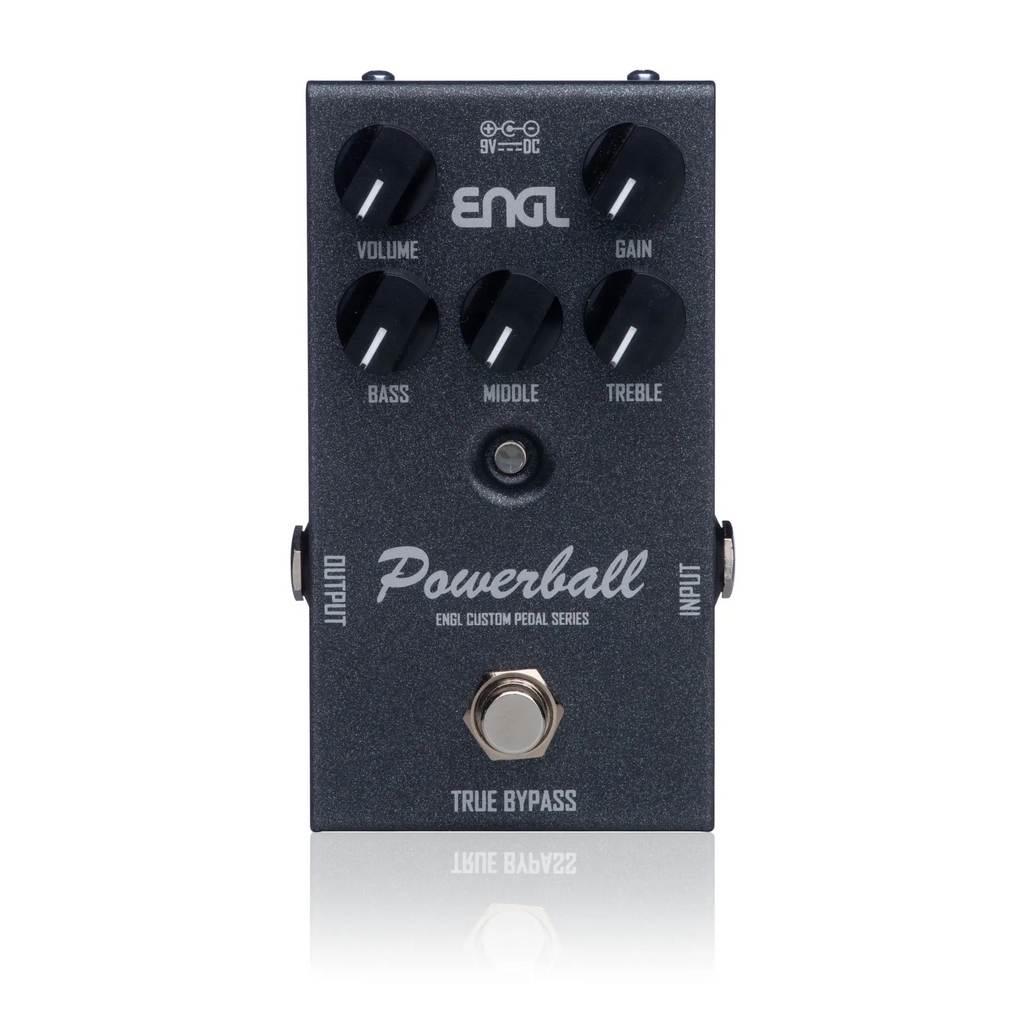

ENGL EP645 Powerball Pedal

The Powerball Pedal faithfully captures the crushing high-gain tone of the Lead 2 channel from the ENGL Powerball II head, meticulously recreating its gain stages in a fully analog circuit. Designed with true bypass and premium components, this pedal ensures uncompromising sound quality and responsiveness. Encased in an ultra-rugged housing, it’s built to withstand years of heavy use—delivering relentless power and precision every time you step on it. Whether on stage or in the studio, the Powerball Pedal brings searing ENGL tone straight to your pedalboard!

Features

• The Lead2 channel of the ENGL Powerball II in a pedal format
• Completely analog circuit
• Volume, gain, bass, middle, and tremble controls
• True bypass
• 9V DC power with negative center, protected by a zero loss reverse polarity protection circuit
• Second DC jack to supply power to additional effect devices
• 18mA power consumption

Specifications

• GAIN Controls the amount of gain. Left is less, right is more
• BASS Controls the amount of low frequencies. Left is -7.5db, right is +7.5db
• MIDDLE Controls the amount of middle frequencies. Left is -7.5db, right is +7.5db
• TREBLE Controls the amount of middle frequencies. Left is -7.5db, right is +7.5db
• VOLUME Controls the output volume. Left is less, right is more.
• VTRUE BYPASS (This footswitch turns the pedal effect on and off. When the effect is off, the signal is routed directly form the input to the output jack)
• Power: This pedal uses 9V DC negative center and is protected by a ZERO LOSS REVERSE POLARITY PROTECTION circuit. With the second DC jack you can supply additional effect devices (daisy chaining). Due to ecological reasons, the pedal does not accept batteries. Power consumption is 18 mA.
