EFNOTE PRO 704 Technical 6-piece electronic drum kit with drum pads, cymbals, and control module for electronic stage drumming.

Brand: Efnote

EFNOTE PRO 704 Technical 6pc Electronic Stage Drum Kit

SKU: 200810-TECHNICAL
$14,499.00
Enquire now
Price Match
  • Rent from

  • $1,208.25/mth for 12 months interest free

    Fees apply

  • $30–$4000 Pay in 4 interest-free

    Late fees apply

  • $30–$2000 Pay in 4 interest-free

    No fees or interest

Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!

Description

With EFNOTE PRO, you no longer need to worry about mic choice or placement, drum tuning, head replacement, or maintenance before your gig. Simply assign it's 12-channel balanced outputs as you please, using stereo or mono sends for signals like kick, snare, toms, cymbals, click, and even an external sampling pad. Each channel boasts a High Pass Filter, 2-band EQ, dedicated compressors for Bus 1-6, and ground lift switches, giving you an incredible amount of control over your sounds. The stage box also features a 2-channel XLR balanced Monitor In connector for a monitoring return from FOH, and a 2-channel TS balanced Line In for connecting an external sampling/percussion pad.


No More Acrylic Panel

EFNOTE PRO drums negate the need to isolate your drummer from the rest of the band on stage, leaving them to freely engage with their bandmates and audience - eliminating mic bleed and feedback issues on stage to deliver sounds to FOH with impressive articulation, balance, and control.

Flexibility for All Music

Capable of supporting up to 7 shells and 8 cymbals, all pads of the EFNOTE PRO are individually wired, so users can adapt to any musical environment or situation. Save and load all sound settings quickly and easily to suit changes in player or set-lists at any time, and with 12-channel multitrack USB audio and 16-channel USB MIDI running simultaneously, you get convenient and instant access to editing for writing and production sessions, or perfecting your performance. Bluetooth connectivity provides convenient wireless connection for you to jam along to your favorite songs in your music library.

Design

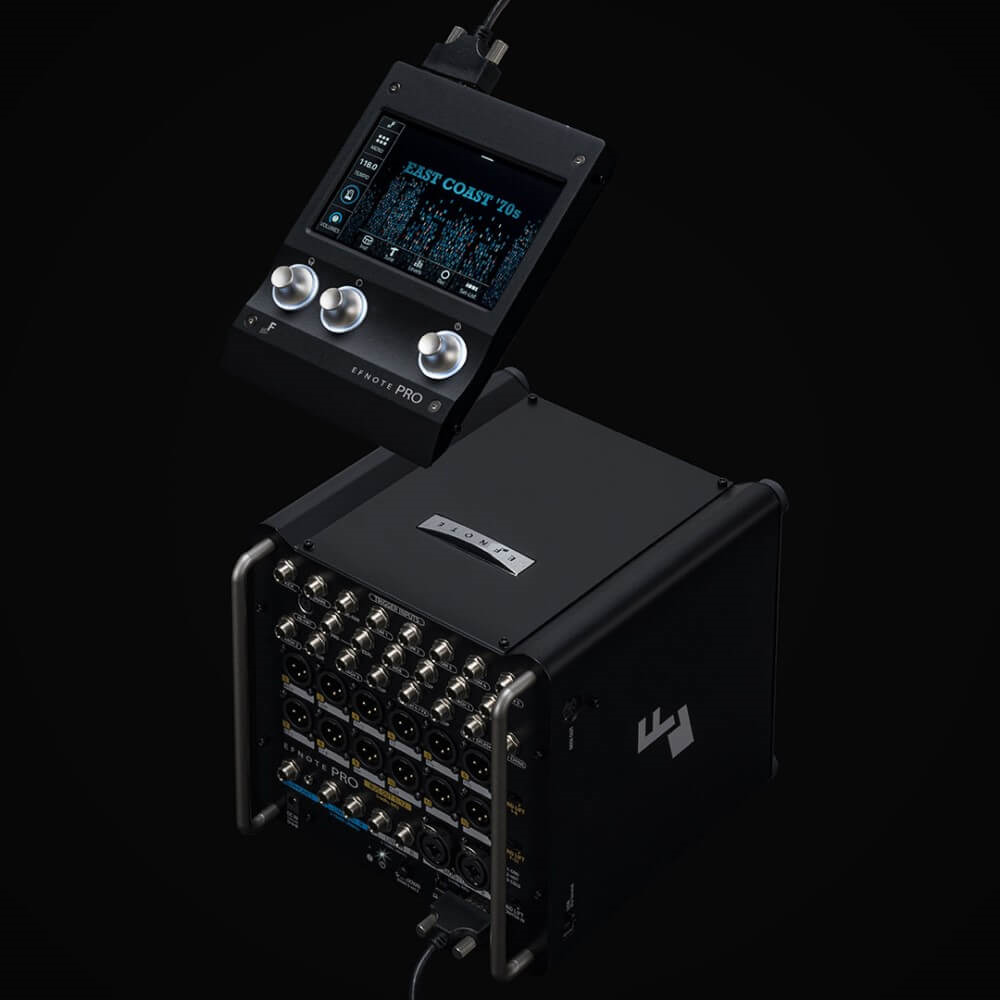

The innovative sound module boasts a two-piece design that delivers unmatched performance and expandability for working professionals. The robust floor-standing base unit features a heavy-duty construction and rugged, reliable cable connections, and the compact, low-profile touch screen LCD features a streamlined, high-definition interface design that's bright enough to navigate on even the darkest of stages. The underneath of the control surface is equipped with a discrete foot stage light with adjustable brightness to assist with the setup and adjustment of the stage box - perfect for setting up on dark stages.

Sound

EFNOTE PRO drums features a collection of iconic drum sets, which faithfully recreate every nuance and subtlety of aged shells with raw and organic sounds that don't sound synthetic or electronic. With shell sounds like Maple, Birch, acrylic, steel, aluminum, brass, titanium, and even a towel-muted shell sound, and a diverse library of cymbals that range from bright and modern, to dark and vintage, EFNOTE drums cover a lot of sonic ground. With modern trash, effect, and stacked cymbal sounds, and the ability to layer elements such as tambourines and EDM drums over the fundamental drum sounds, you can reinforce the attack of your drums, or create immersive new textures for your songs to live in.

The high-powered headphone amplifier features both a ¼" and a ⅛" headphone jack, which can be used simultaneously, with a dedicated 2x headphone amp circuit for increased loudness and a high-quality DA converter and audio circuit to provide drummers with pristine audio to play along with.

Playability

With five 2-zone inputs for toms, six 3-zone and two 2-zone inputs for cymbals, and individual traditional TRS connectors for triggers, the EFNOTE PRO drums let you build custom configurations to suit any style or stage. The Birch shells employ 2-ply mesh drum heads for a silent stroke and gratifying playing experience, and feature multi-sensors to deliver realistic, high-fidelity sound. EFNOTE PRO drums also feature a full lineup of cutting-edge cymbals, ranging from 8" to 20", with a new 18" china cymbal and 17" effect cymbal with stackable STAK mount - the first of their kind.

Driven by an evolved version of the exclusive ELISE Sensing Processor 2.0, EFNOTE PRO drums deliver greater sensitivity for capturing every nuance and detail of your playing. Featuring a groundbreaking multi-optical design, the three dimensional movement of the hi-hats are captured using Tru-Motion technology and a 360° free-swinging top and bottom cymbal design - providing drummers with an unparalleled level of expressiveness.

Operation

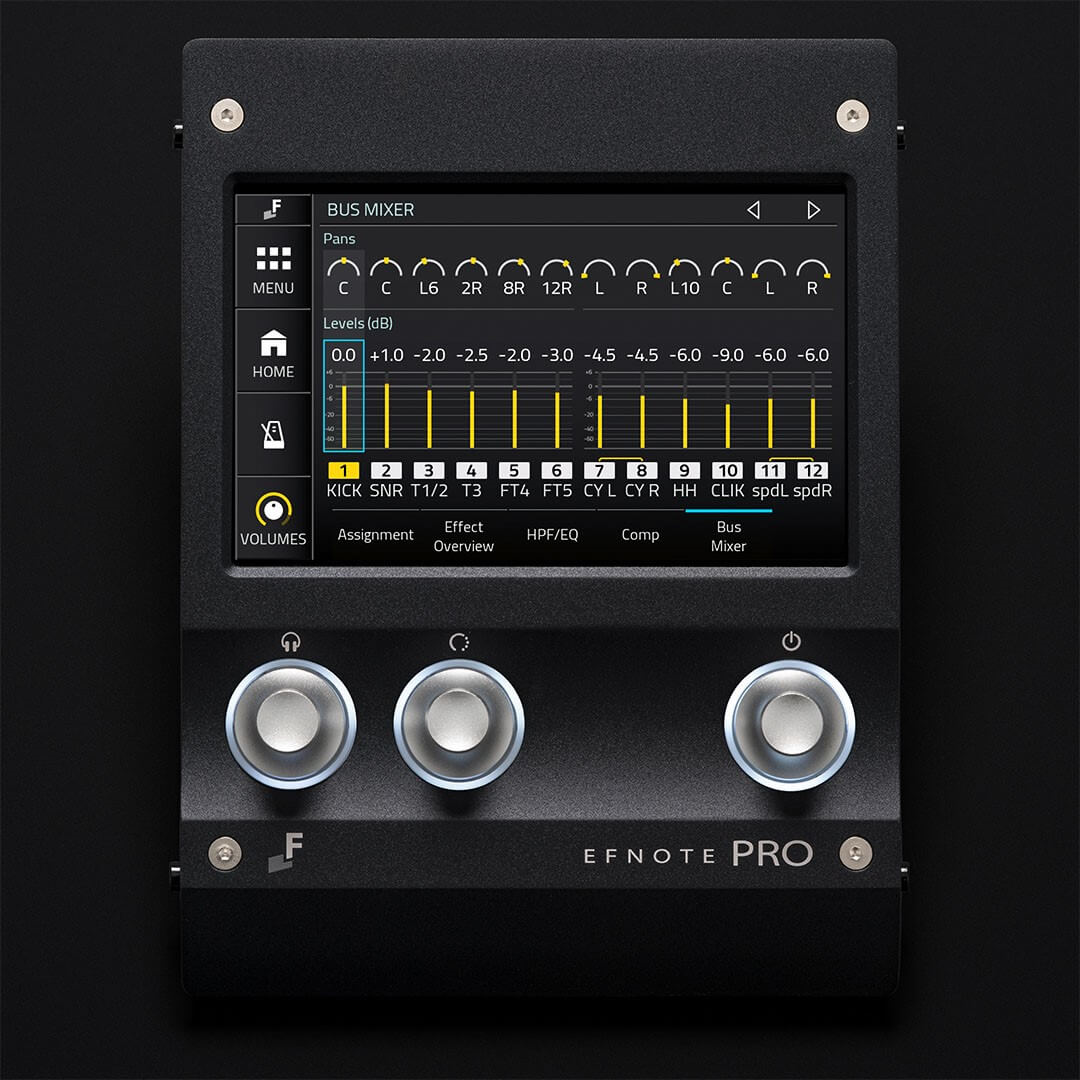

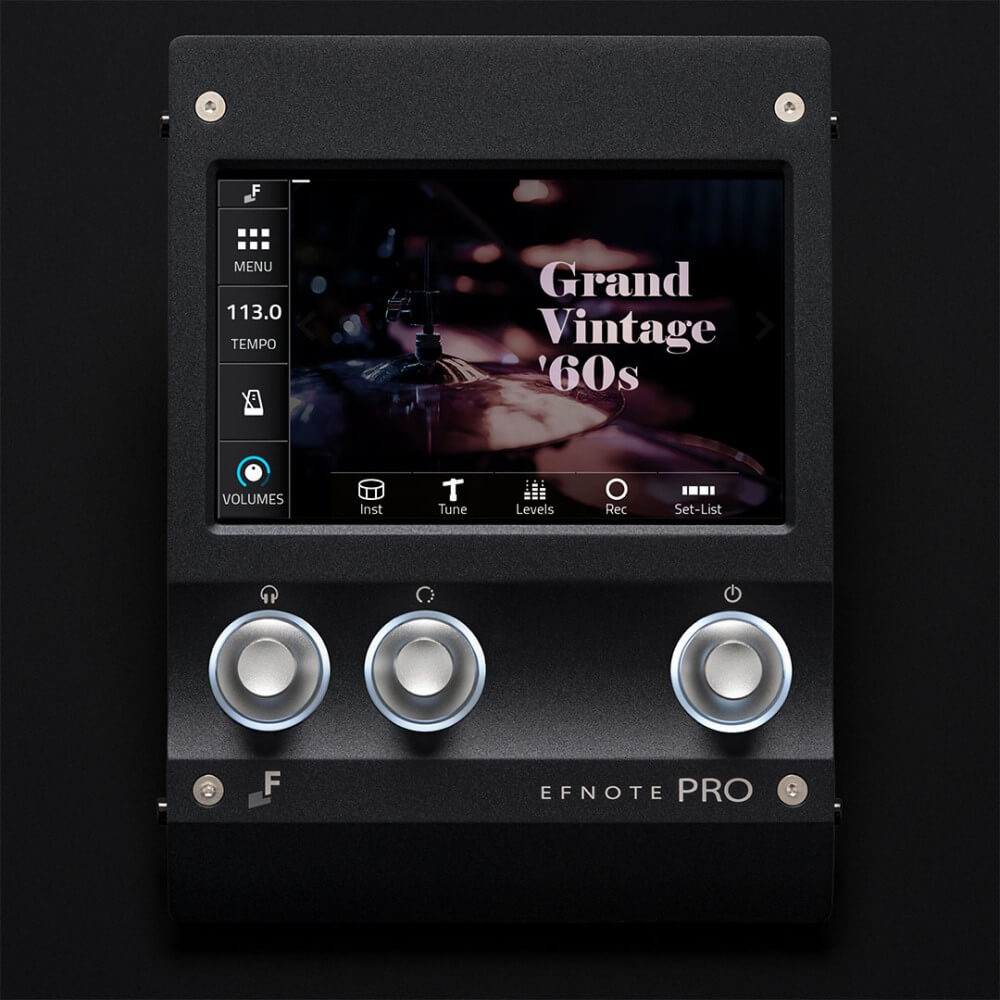

Using the high-definition LCD touch screen, you get instant control over drum tuning and muffling and cymbal pitch and sustain - even while playing - and you even have the ability to change kits completely with a simple swipe of the screen. Pad levels are displayed in decibels for easy adjustment, and Global Pan gives you total control over your stereo image. With One-Touch Recording and Playback, you can effortlessly record grooves and fills as you please - an incredibly handy feature during sound check - allowing you to record a beat, and then play it back to check the sound out front, or store/recall recorded drum-play data to a USB flash drive.

The versatile metronome is adjustable in 0.1 bpm increments, and features 7 different click sounds to find one that works for you. The convenient Set-List feature allows you to configure kits and tempo for each song, with customizable descriptions and colors for easy navigation. Finally, an intuitive Trigger adjustment gives you a streamlined graphical interface to find the perfect sensitivity for your triggers.

Specifications

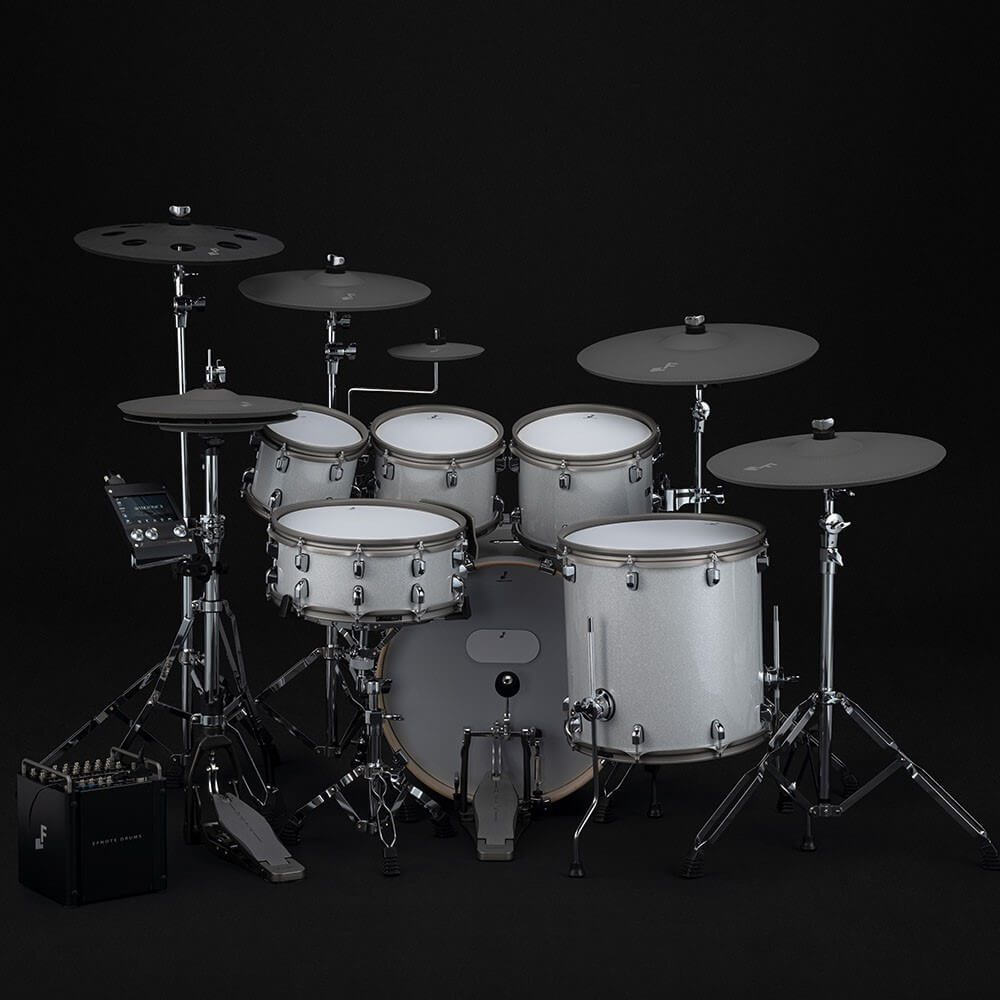

  • Configuration
    • 20" Kick Drum
    • 8", 10", 11" Tom Toms
    • 15" Floor Tom
    • 14" Snare Drum
    • 14" Hi-Hats
    • 16", and 18" Crash Cymbals
    • 17" FX Cymbal
    • 8" Splash Cymbal
    • 20" Ride Cymbal
  • User Interface
    • Full Color, Capacitive Touchscreen Display
  • Trigger Interface
    • 3-Zone: 7x (Snare, Crash, 1/2/3/4 [FX], Ride, Hi-Hat)
    • 2-Zone: 7x (Tom 1/2/3/4/5, Crash 5 [Splash], Crash 6 [China])
    • 1-Zone: 1x (Kick Drum)
    • ELISE 2.0 Trigger Sensing Chip

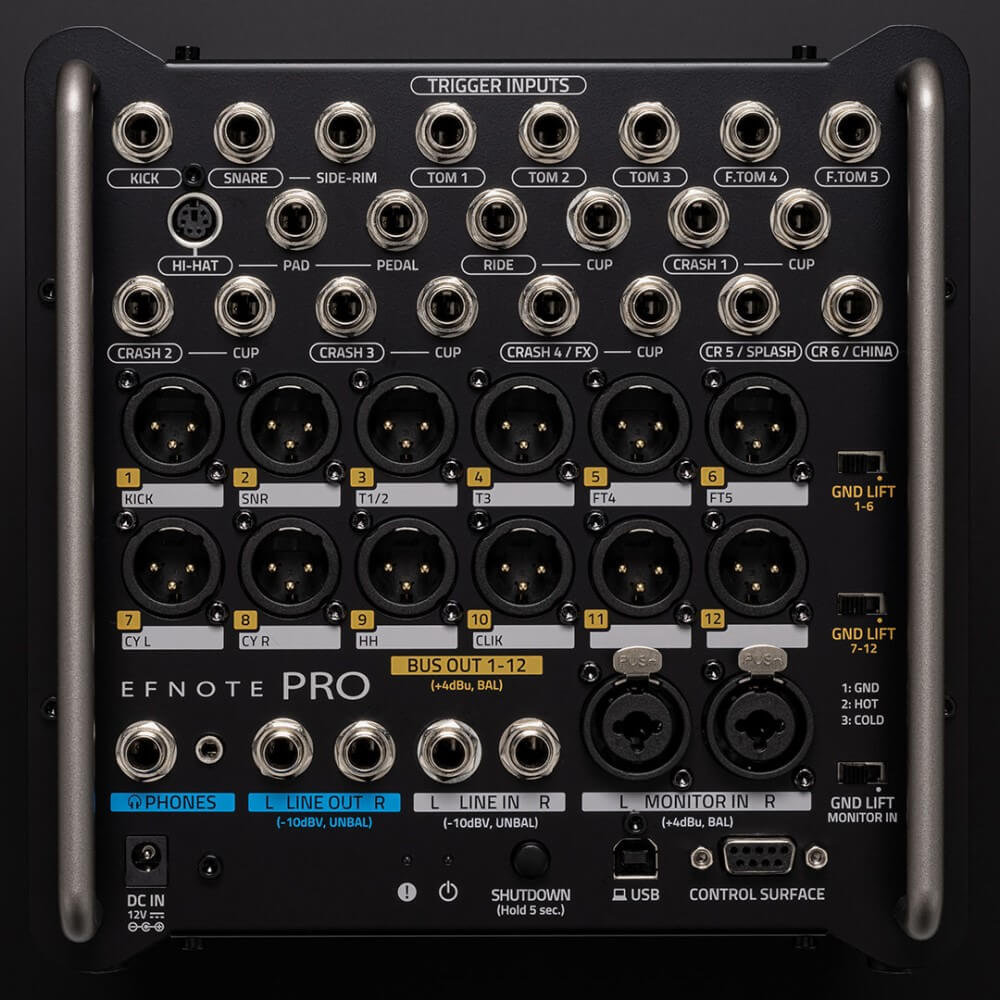

  • Audio/MIDI Interface
    • Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)
    • Line Out: 2x ¼" TS Phone (-10dBV, Unbalanced, +14dBV Max)
    • Phones Out: 1x ¼" Stereo (320 + 320mW @ 32Ω), 1x ⅛" Stereo (320 + 320mW @ 32Ω)
    • Monitor In: 2x XLR(F) + ¼" TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw
    • Line In: 2x ¼" TS Phone (-10dBV, Unbalanced, +10dBV Max)
    • USB: USB Type-B Port (USB 2.0 Hi-Speed), Audio 12ch Out/2ch In, MIDI In/Out
    • Bluetooth: Audio Input (A2DP)
    • Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)
    • MIDI Out: 5-pin DIN
  • Other Interfaces
    • Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)
    • USB (Flash Drive): USB Type-A Port (USB 2.0) (supports flash drive only)
    • USB (For Service): USB Type-B Port (for service purpose only)
  • Drum Kits/Instruments
    • Preset Drum Kits: 23 (editable)
    • User Drum Kits: 100
    • Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements
    • Tru-Aco Sound Technology
  • Edit Parameters
    • Level, Pan, Tuning, Muffling (for each pad)
    • 2-Band EQ (for each pad)
    • Overlay Tone (for each zone)
    • Global Pan (for all drum kits in common)
    • Changable Kit Name Color and Background Kit Image (for each user drum kit)
  • Metronome
    • 4x Click Setup Memory
    • Tempo (BPM): 40.0-240.0 (0.1 Step)
    • Beat (Time Signature): 1/4 - 13/4, 2/8 - 13/8
  • Set-List: 15x Set-Lists (20 Slots for Each List)
  • Recorder
    • Tracks: 15
    • Resolution: 480 TPQN
  • Buses
    • 16-Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)

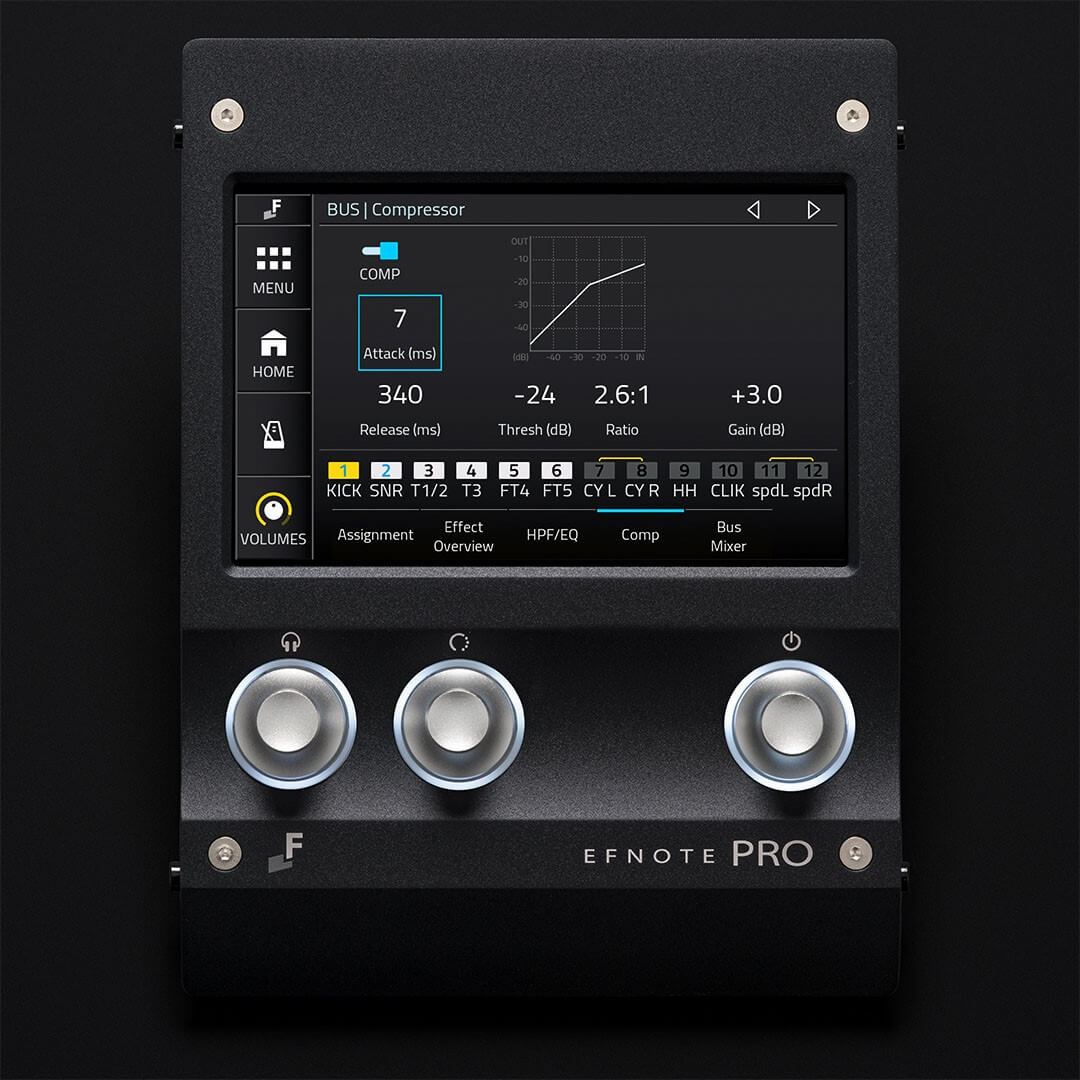

    • Bus HPF and EQ (Bus 1 - 12), Bus Compressor (Bus 1 - 6)
    • 12x Bus Outputs (12x XLR Analog and 12-Channel USB Audio)
    • Bus Mixer
    • Main HPF and EQ (Main L/R)
  • Other Features
    • Inst Expansion
    • Foot Light
    • Ground Lift Switches (for Bus Out and Monitor In)
    • Full-Metal Cabinet
    • Guard Handles
  • Power: AC Adaptor (FJ-SW1202000N-EFNOTE) 12V DC, 1.5A
  • What's in the Box?
    • 1x Link Cable 2.0m (EFD-DSUB9-2)
    • 1x AC Adapter (FJ-SW1202000N-EFNOTE)
    • 10x Trigger Cable 3.0m (EFD-TRS-LL3)
    • 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)
    • Module Mount Set
    • Smartphone Tray Set
    • Tuning Key
    • Cable Ties
    • Cable Labels
    • Quickstart Guide
  • Dimensions
    • Control Surface: 128mm (W) x 172mm (D) x 30mm (H) / 700g
    • Base Unit: 206mm (W) x 210mm (D) x 238mm (H) / 3.25kg
