Specifications

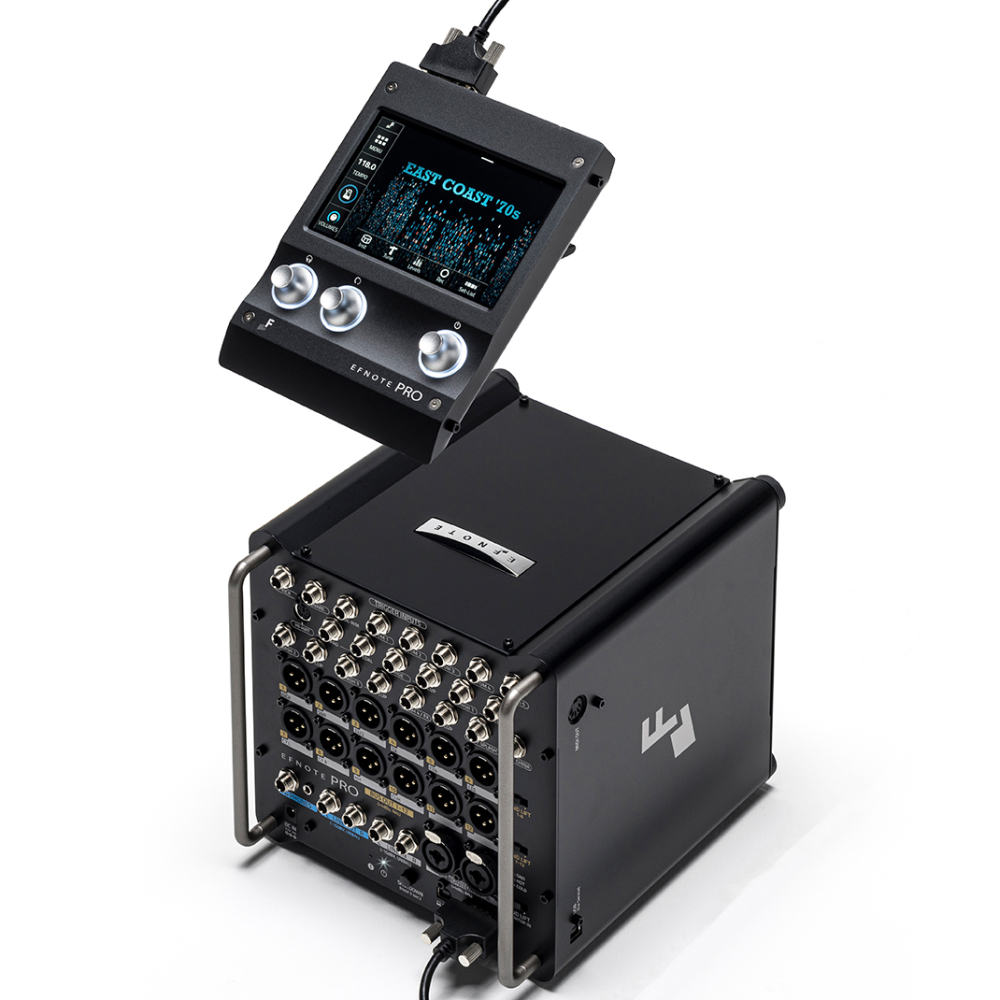

EFNOTE PRO Sound Module: EFD-PRO
User Interface
Full Color, Capacitive Touchscreen Display
2x Multi-Function Knob (with Ring LED)
1x Value Knob (with Ring LED)
Trigger Interface
3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat
2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China)
1-Zone (1x): Kick
ELISE™ 2.0 Trigger Sensing Chip

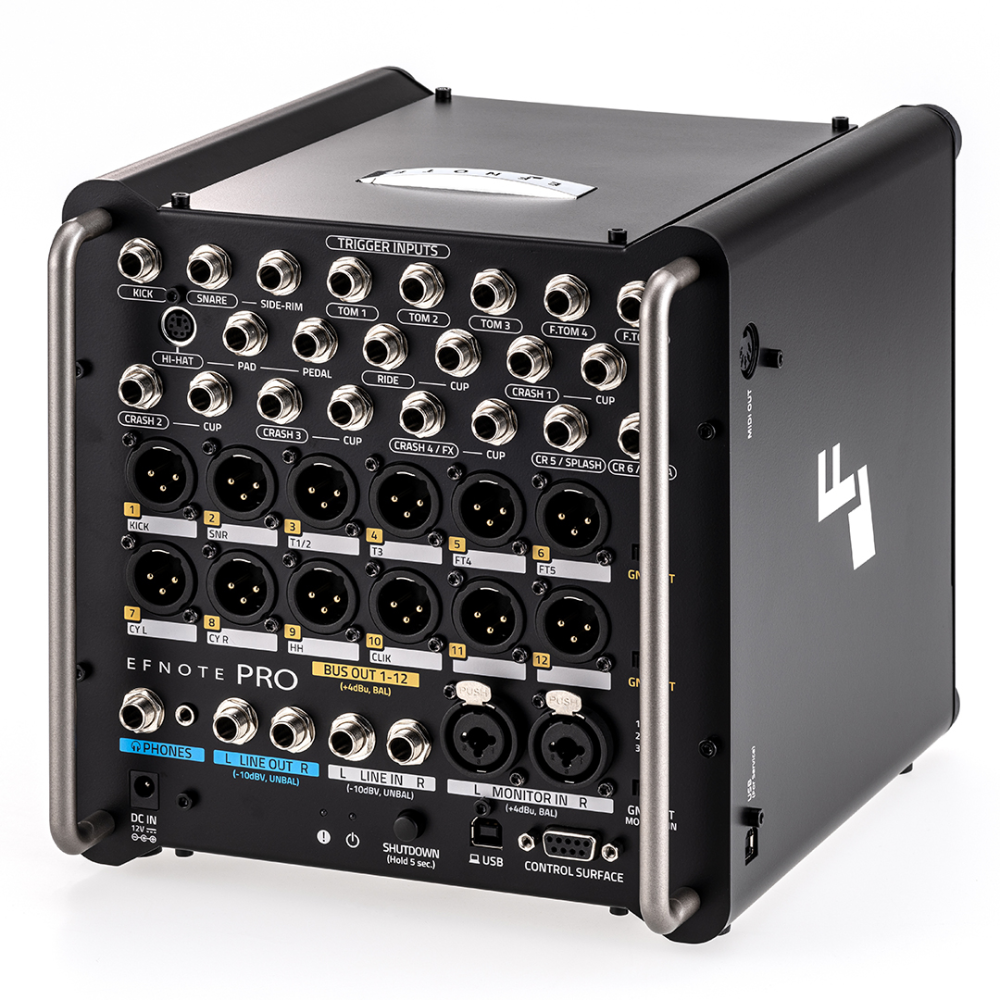

Audio / MIDI Interface
Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)
Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max)
Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω)
Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw
Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max)
0dBu = 0.775Vrms, 0dBV = 1.0Vrms
USB: B Type USB 2.0 Hi-Speed
Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth: Audio Input (A2DP)
Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)
Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP
MIDI Out: 5-pin DIN
Other Interfaces
Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)
USB (Flash Drive): A Type USB 2.0 (supports flash drive only)
USB (For Service): B Type (for service purpose only)
Drum Kits / Instruments
Preset Drum Kits: 23 (editable)
User Drum Kits: 100
Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements
Tru-Aco™ Sound Technology
Edit Parameters
Level, Pan, Tuning, Muffling (for each pad)
2-Band EQ (for each pad)
Overlay Tone (for each zone)
Global Pan (for all drum kits in common)
Changable Kit Name Color and Background Kit Image (for each user drum kit)
Click
4x Click Setup Memory
Tempo (BPM): 40.0-240.0 (0.1 Step)
Beat (Time Signature): 1/4-13/4, 2/8-13/8
Set-List
15x Set-List (20 slots for each list)
Array-style 20 slot buttons
Slot Tag Color and Slot Notes feature
Tempo and Beat Settings for each slot
Each set-list can be saved to a USB flash drive
Recorder
Tracks: 15
Resolution: 480 TPQN
Buses
16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)
Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6)
12x Bus Outputs (12x XLR Analog and 12ch USB Audio)
Bus Mixer
Main HPF and EQ (Main L/R)
Other Features
Inst Expansion
Foot Light
Ground Lift Switches (for Bus Out and Monitor In)
Full Metal Cabinet
Guard Handles

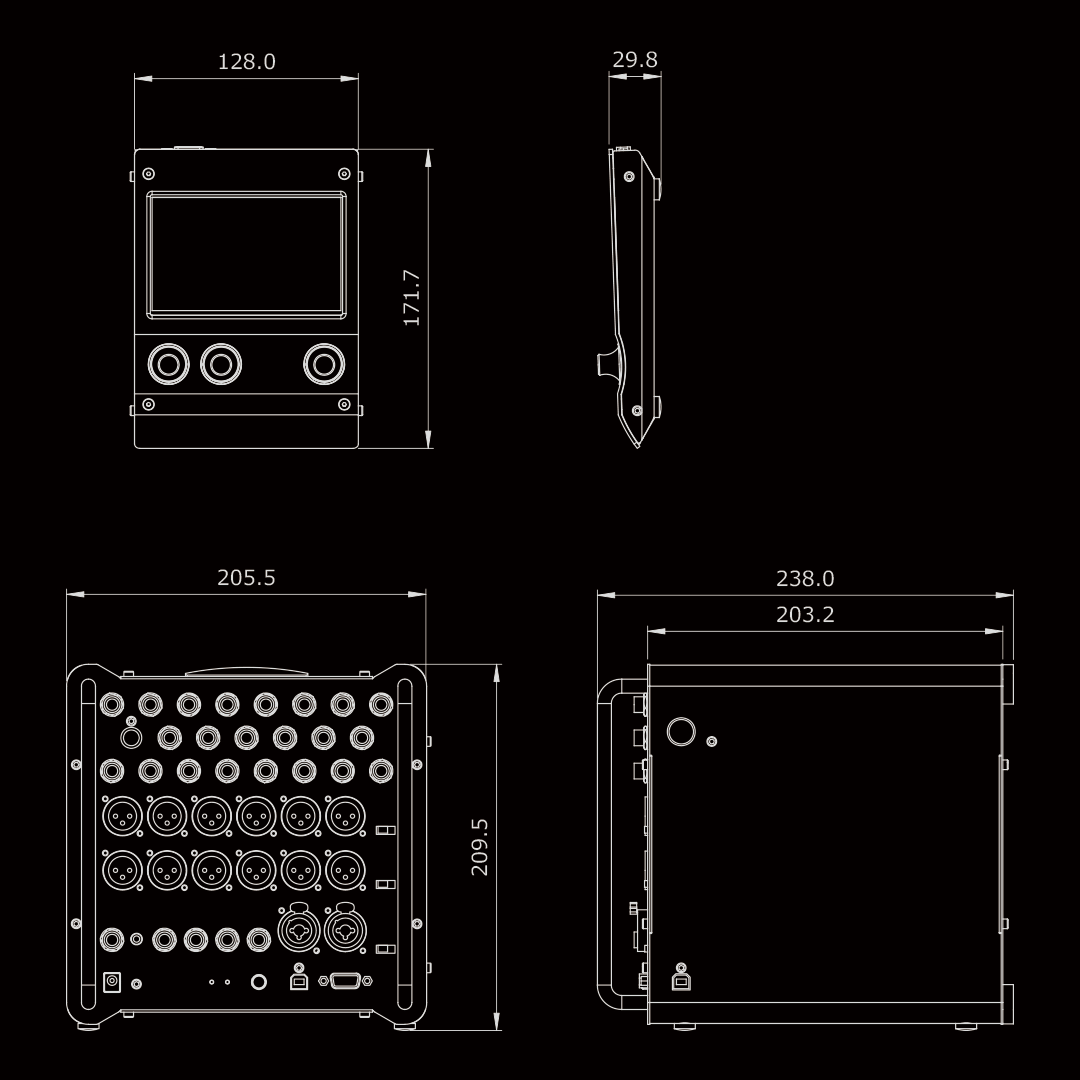

Products Dimensions / Weight
Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g
Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g
Excluding protrusions
Power Supply / Current Draw
AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A
Accessories
1x Link Cable 2.0m (EFD-DSUB9-2)
1x AC Adapter (FJ-SW1202000N-EFNOTE)
10x Trigger Cable 3.0m (EFD-TRS-LL3)
1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)
Module Mount Set
Smartphone Tray Set
Tuning Key
Cable Ties
Cable Labels
Quickstart Guide
