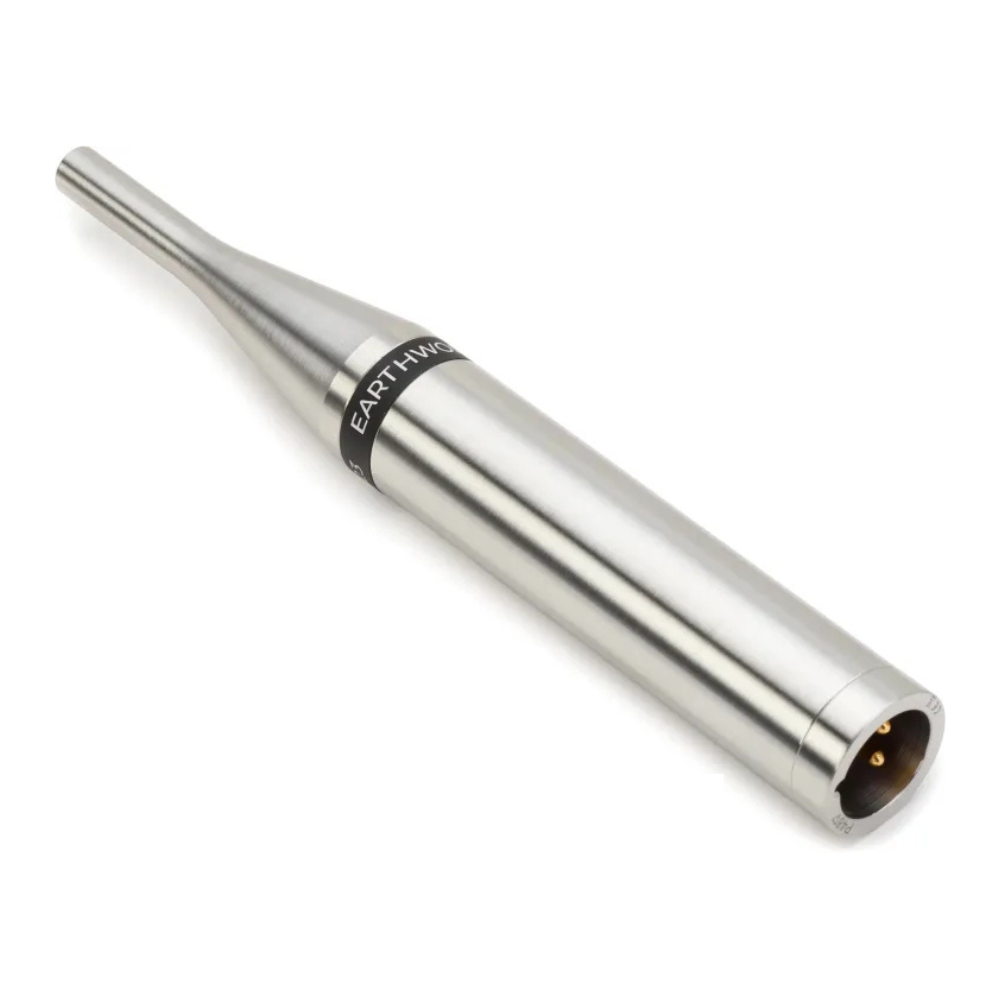

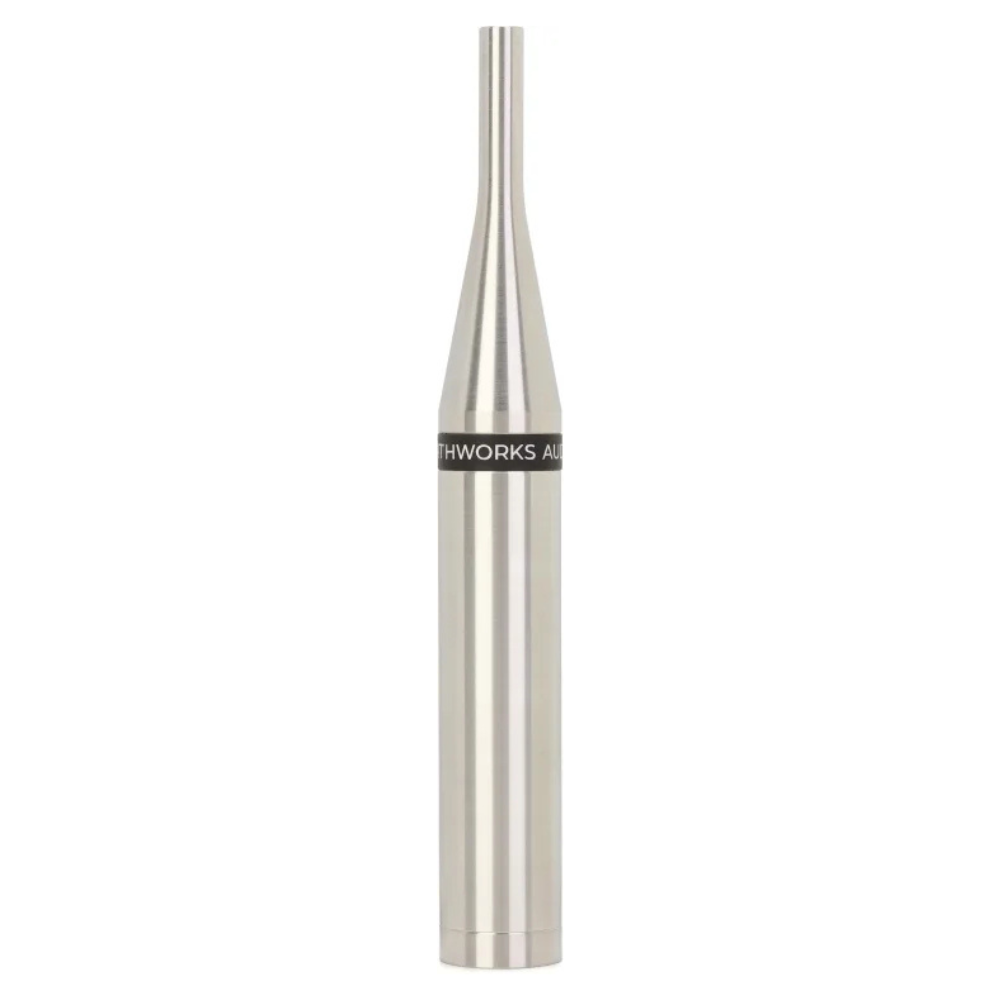

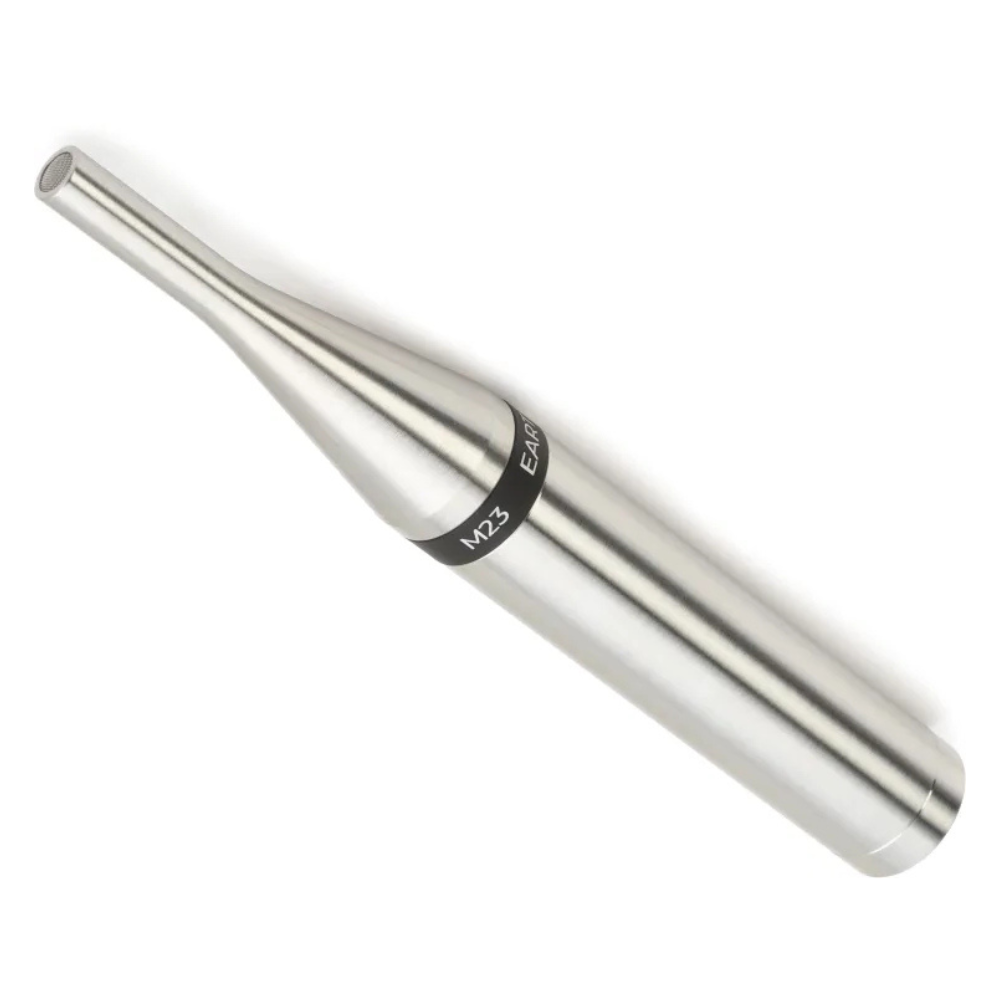

Earthworks M23 measurement microphone with wired connection, featuring a compact design and 23kHz frequency response for precise audio capture.
  • Earthworks M23 measurement microphone with wired connection, featuring a compact design and 23kHz frequency response for precise audio capture.
  • Earthworks M23 measurement microphone with wired connection, 23kHz frequency response, designed for professional audio and live sound use.
  • Earthworks M23 measurement microphone with wired connection, designed for precise live sound and audio analysis.
  • Wired Earthworks M23 Measurement Microphone with 23kHz frequency response on a stand, used for precise audio measurements.
  • Earthworks M23 measurement microphone with wired connection, capturing high-frequency sounds up to 23kHz for professional audio analysis.
  • Earthworks M23 measurement microphone with wired connection, 23kHz frequency, used for professional audio and live sound testing.
Earthworks M23 Measurement Microphone 23khz

Brand: EARTHWORKS

Earthworks M23 Measurement Microphone 23khz

SKU: M23
$919.00
Available to Order
Price Match

  • Rent from

  • $76.58/mth for 12 months interest free

    Fees apply

  • $229.75 Pay in 4 interest-free

    Late fees apply

  • $229.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 0 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description

The Earthworks M23 is a precision-engineered small-diaphragm condenser microphone with an ultra-flat frequency response extending up to 23kHz. Designed for uncompromising accuracy, it is the go-to choice for room acoustics analysis, sound system calibration, loudspeaker design, and quality control. This omnidirectional measurement mic is trusted by top pro audio companies and is a staple in high-end acoustic measurement systems. Available individually or as a matched pair, the M23 delivers exceptional performance at an unbeatable value, making it the perfect tool for professionals who demand precision and reliability.

Features

  • Flat frequency response to 23kHz
  • Fast impulse response and excellent polar characteristics
  • Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
  • Includes individual mic calibration chart with measured open-circuit sensitivity and frequency response curve
  • Electronic Calibration File (ECF) available upon registration

Specifications

  • FREQUENCY RESPONSE: 3Hz -23kHz
  • POLAR PATTERN: Omnidirectional
  • SENSITIVITY: 36mV/Pa (-28.9dBV/Pa)
  • POWER REQUIREMENTS: 24-48V Phantom, 10mA
  • MAX ACOUSTIC INPUT: 140dB SPL
  • OUTPUT XLR: (pin 2+)
  • OUTPUT IMPEDANCE: 65Ω balanced (between pins 2 & 3)
  • MIN OUTPUT LOAD: 600Ω between pins 2 & 3
  • NOISE: 20dB SPL equivalent (A weighted)
