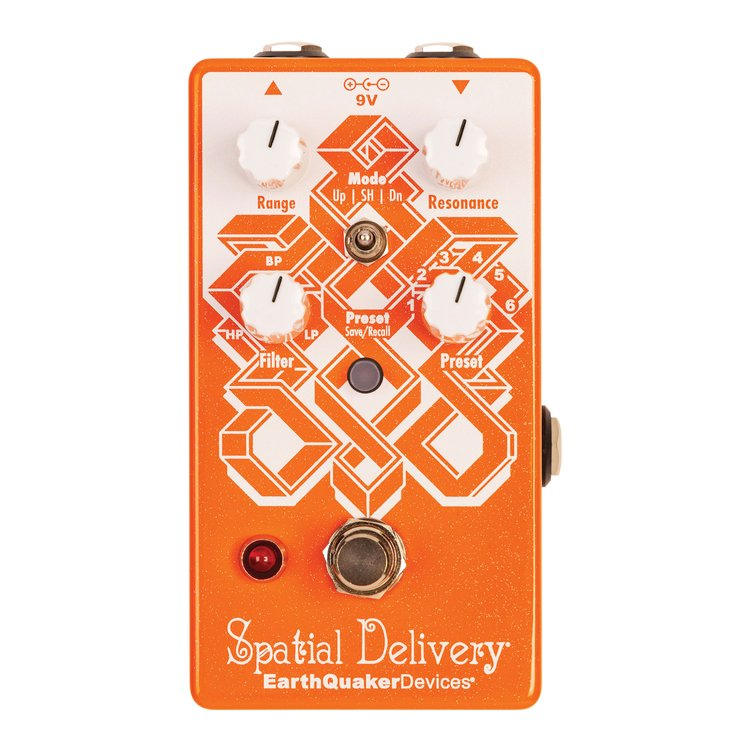

Earthquaker Devices Spatial Delivery V3 Envelope Filter Effects Pedal

Take your tone on a cosmic ride with the Spatial Delivery—a voltage-controlled envelope filter that pushes past standard auto-wah into a realm of wild, expressive modulation. Equipped with Up Sweep, Down Sweep, and Sample & Hold modes via a simple toggle switch, it delivers everything from funky filter swells to unpredictable, glitchy textures. The Range, Resonance, and Filter knobs give you detailed control over sensitivity, sweep intensity, and filter character—whether sweeping from high-pass to low-pass or blending both for unique timbres.

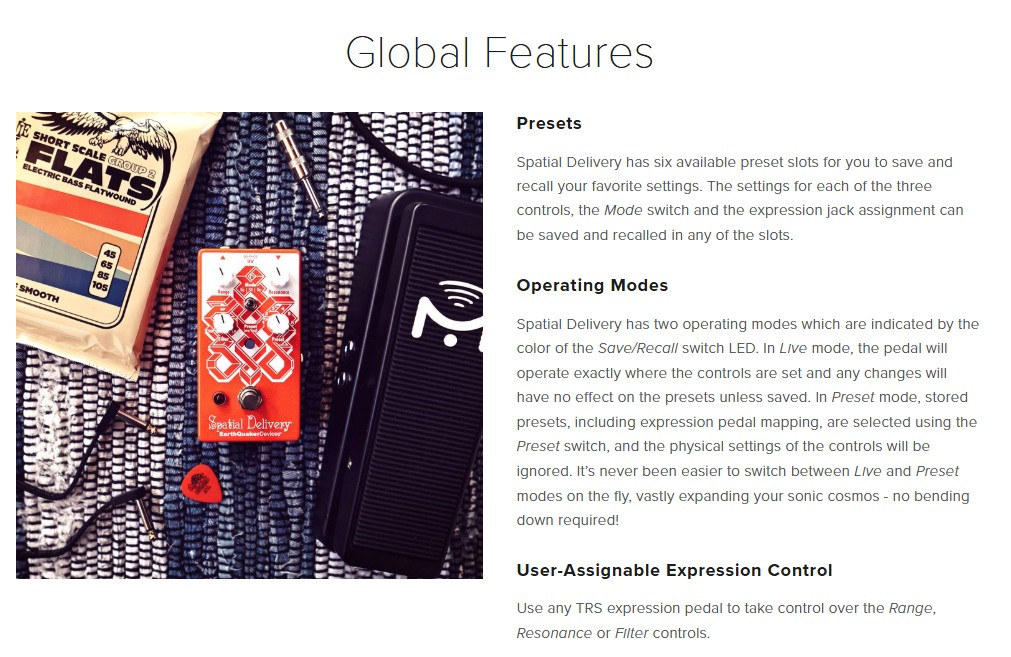

Built for live performance, the Spatial Delivery adds onboard flexibility with six preset slots that store your preferred knob settings, envelope modes, and even expression pedal assignments. Two LED-backlit modes make switching between live play and preset recall effortless; Live Mode for hands-on tweaking with no preset interference and Preset Mode to instantly load saved sounds without altering the pedals on the fly.

With an expression pedal input, you can map real-time control to Range, Resonance, or Filter, further expanding your sonic options. Whether you’re layering overdrive or fuzz, this pedal delivers punchy, resonant tones that slice through any mix—minimum effort, maximum impact.

• Three selectable modes: Up Sweep, Down Sweep, and Sample & Hold.
• Six programmable preset slots for saving and recalling custom settings.
• Range control adjusts envelope sensitivity and speed in Sample & Hold mode.
• Filter knob blends between high-pass, low-pass, and band-pass settings.
• Resonance control adds filter feedback for enhanced tonal depth.
• User-assignable TRS expression pedal input for real-time control over Range, Filter, or Resonance.
• Live and Preset operating modes with LED color indication.
• Relay-based true bypass switching for signal integrity.
• Compact and rugged enclosure built for pedalboard use.
• Flexi-Switch® Technology
• Current Draw: 75 mA
• Input Impedance: 500 kΩ
• Output Impedance: 100 Ω

Please note: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES.
