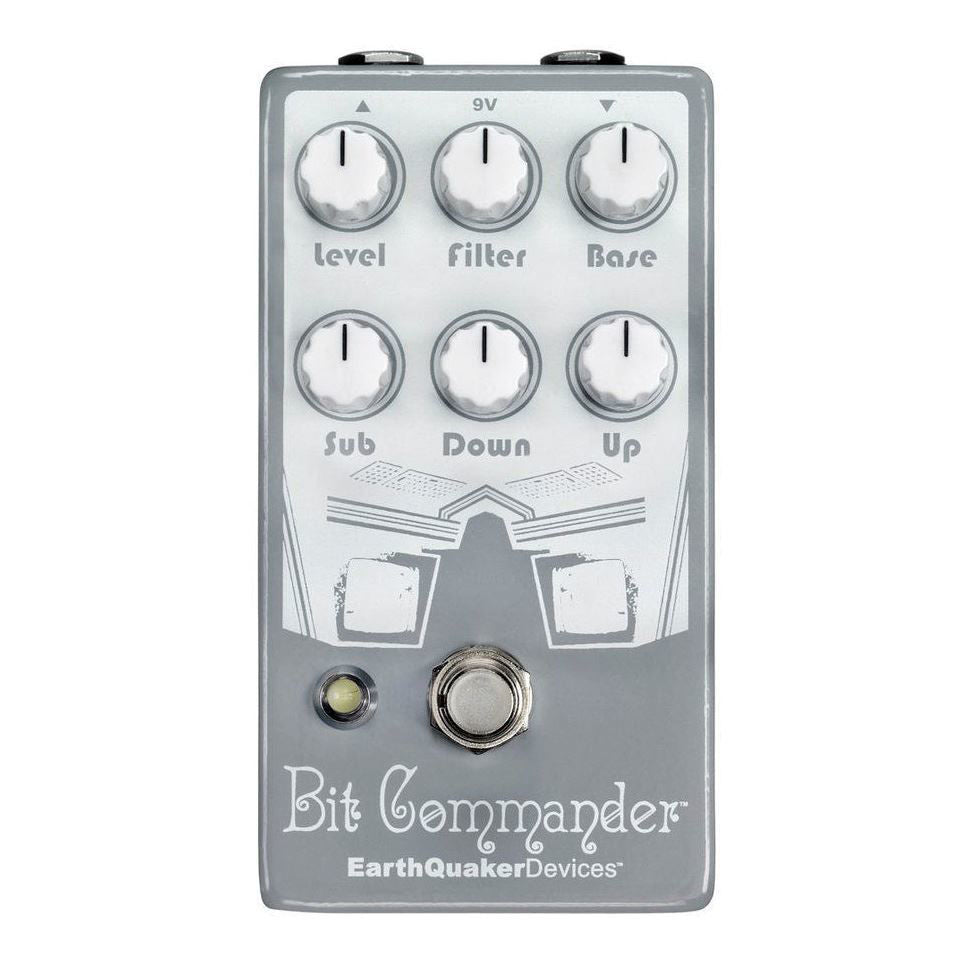

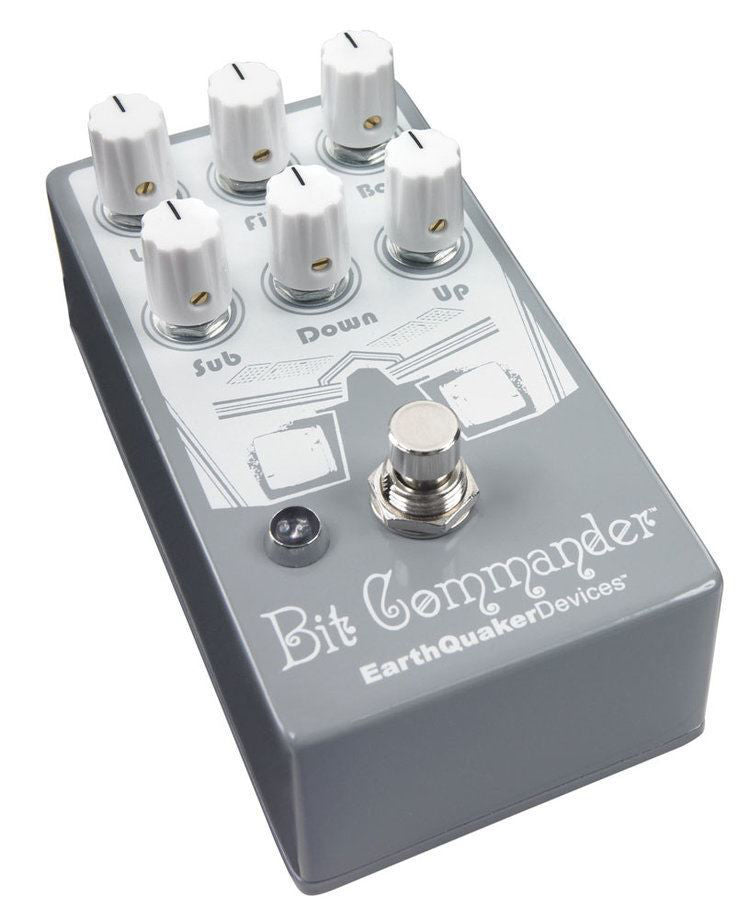

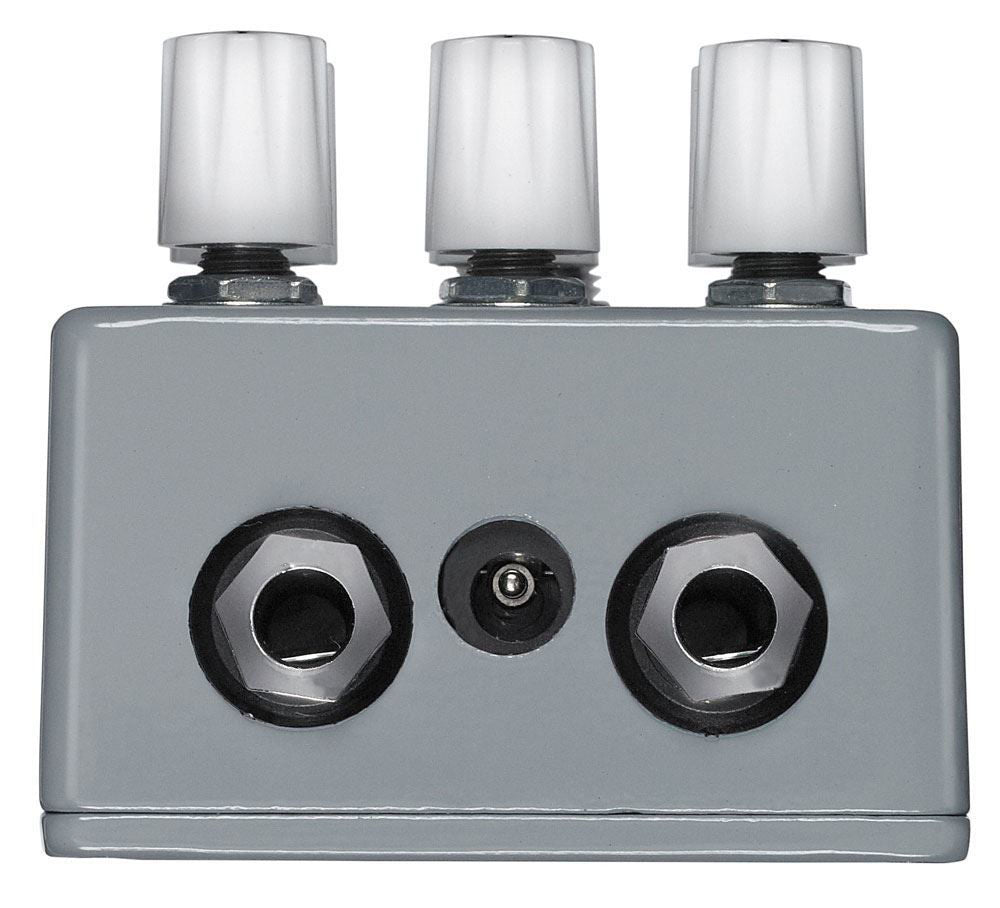

EarthQuaker Devices Bit Commander Analog Octave Synth V2 Effects Pedal

Bit Commander is a monophonic analog guitar synthesizer with 4 octaves of classic square wave synthesizer tones. A simple user interface allows you to easily add or remove octaves to create a plethora of sounds without having to adjust envelopes or oscillators. A chesty sub-octave thump, a pulsating octave down, a slightly squared tone, and a swelling transformer based octave up combine to create a single guitar tone like an army of vintage synths. Controls Level - Master volume Filter - Tone control more highs clockwise, more warmth counterclockwise Base - Squared input signal level Sub - Two octaves down level Down 1 - One octave down level Up 1 - One octave up level Specifications Dimensions: 121mm x 64mm x 57mm with knobs Current Draw: 25mA Input Impedance: 50kO Output Impedance: <500O Switching: True Bypass, Electronic Relay-Based Switching Power: Standard 9V DC Power Supply, 2.1mm Center Negative Barrel
