DL Mini 192 Channel DMX Controller for professional lighting control, featuring multiple DMX control channels and compact design.
  • DL Mini 192 Channel DMX Controller for professional lighting control, featuring multiple DMX control channels and compact design.
  • DL Mini 192 Channel DMX Controller for professional stage lighting and effects, featuring multiple control channels and interface.
  • DL Mini 192 Channel DMX Controller for professional lighting control, featuring multiple DMX control channels and sleek design.
DL Mini 192 Channel DMX Controller

Brand: DL

Clearance

DL Mini 192 Channel DMX Controller

SKU: 80102
$115.00 (28% off RRP)
RRP $159.00
In stock
Price Match

  • Rent from

  • $9.58/mth for 12 months interest free

    Fees apply

  • $28.75 Pay in 4 interest-free

    Late fees apply

  • $28.75 Pay in 4 interest-free

    No fees or interest
Shipping Calculator

Enter a suburb for a more accurate quote. Final shipping cost is confirmed at checkout with the full delivery address.

Stock Availability

  • 1 Mega Music Myaree
  • 0 Mega Music Wangara
  • 0 Mega Music Warehouse
Want to click & collect, or try in-store?

Both our Myaree and Wangara stores are open 9–5:30pm Monday – Friday, with Myaree open 9–7pm Thursdays, both stores 9–5pm on Saturday and closed on Sundays.

Stock is live across all three locations and updates as stock is sold, however we still encourage you to call ahead to the store if stock indicated here is low at your preferred location.

Click and collect is a service offered at both store locations, which may require stock to be moved between stores or from the warehouse, as such we request that if you have ordered online, to please wait for a confirmation message before heading to the store.

If stock is only indicated at our warehouse location it can still be transferred to your desired store, even if you just want to try it, just get in touch with your desired store during store opening hours and make a request!

Please also be aware that unless you have paid a deposit to hold an item, it will remain free for sale on the web even if it has been set aside in-store. To avoid disappointment we always recommend a 10% deposit, this can be done in-store or online, just get in touch!
Description
The DL DMX Controller 192 is an extremely compact, straightforward DMX lighting controller ideal for small venues, mobile DJs, touring bands, live venues and more. The compact controller is capable of controlling up to 12 separate intelligent lights with up to 16 DMX channels per fixture. The compact and affordable DMX Operator features up to 6 programmable chases, 8 individual faders, and 1 channel fader. The DMX Operator 192 has 8 sliders for direct control of channels, as well as MIDI control. Connectors include DMX in/out, 90-240 VAC adapter input and a MIDI input port for external triggering of banks and chases using a MIDI device. There is also a 5V USB input for an optional gooseneck LED lamp. Features:
  • An affordable solution for controlling DMX products
  • Control up to 192 DMX channels
  • 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
  • Fixtures with less than 16 DMX channels may be combined on 1 Channel Fader
  • Record up to 6 programmable chases with fade times and different speeds
  • 8 individual faders provide easy programmability for Intelligent lighting or Dimmer Packs
  • MIDI controllable
  • DMX-512 3 pin XLR signal
  • Built-in microphone
  • 5V USB input for LED Lamp
  • Blackout button
Technical Parameter：
  • Protocols: DMX 512/ USITT
  • DMX Channels: 12 Fixtures with 16 channels per fixture, total up to 192 channels
  • Chases: 6 Chases with fade time and speeds
  • Scene: 30 banks, each with 8 scenes total of 240 programmable scenes
  • Microphone: Built in Microphone

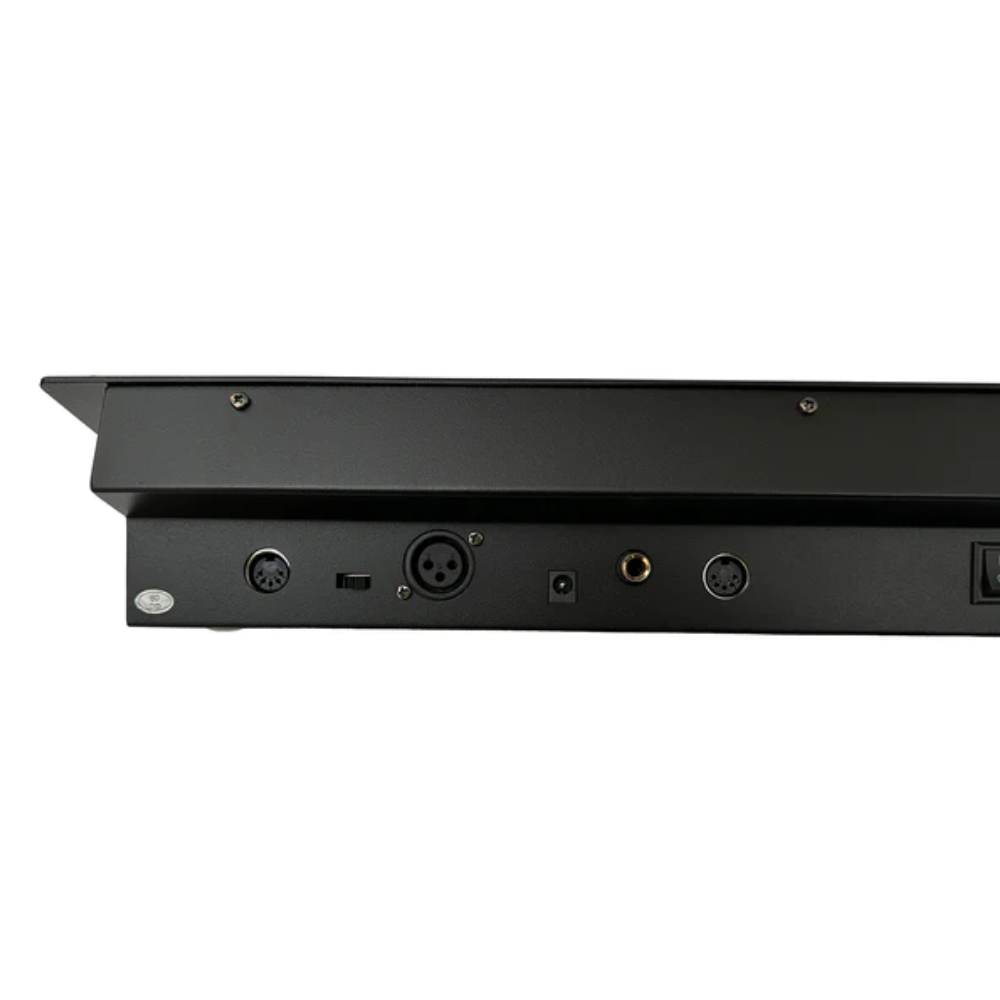

  • Connectors:
    • 3 pin DMX XLR in/out
    • 5 pin MIDI input
    • DC Input jack
    • Data pin configuration: pin 1 shield, pin 2 (-), pin 3 (+)
    • 5V USB Input
  • Display: 4 Digits LED Screen
  • Operating Temperature: 45 °C
  • Power: DC 9V-12V 500mA
  • Dimensions: 510 x 200 x 80mm
  • Weight: 1.14 kg
