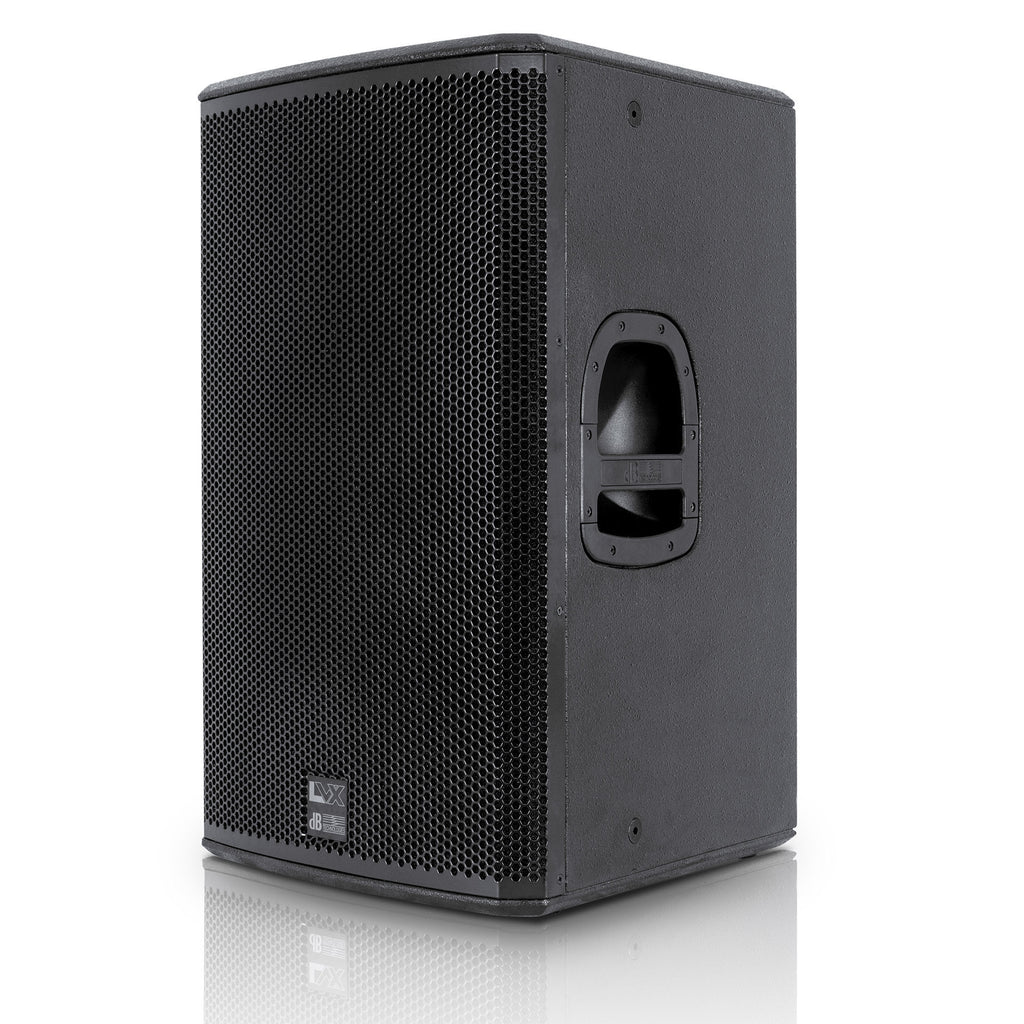

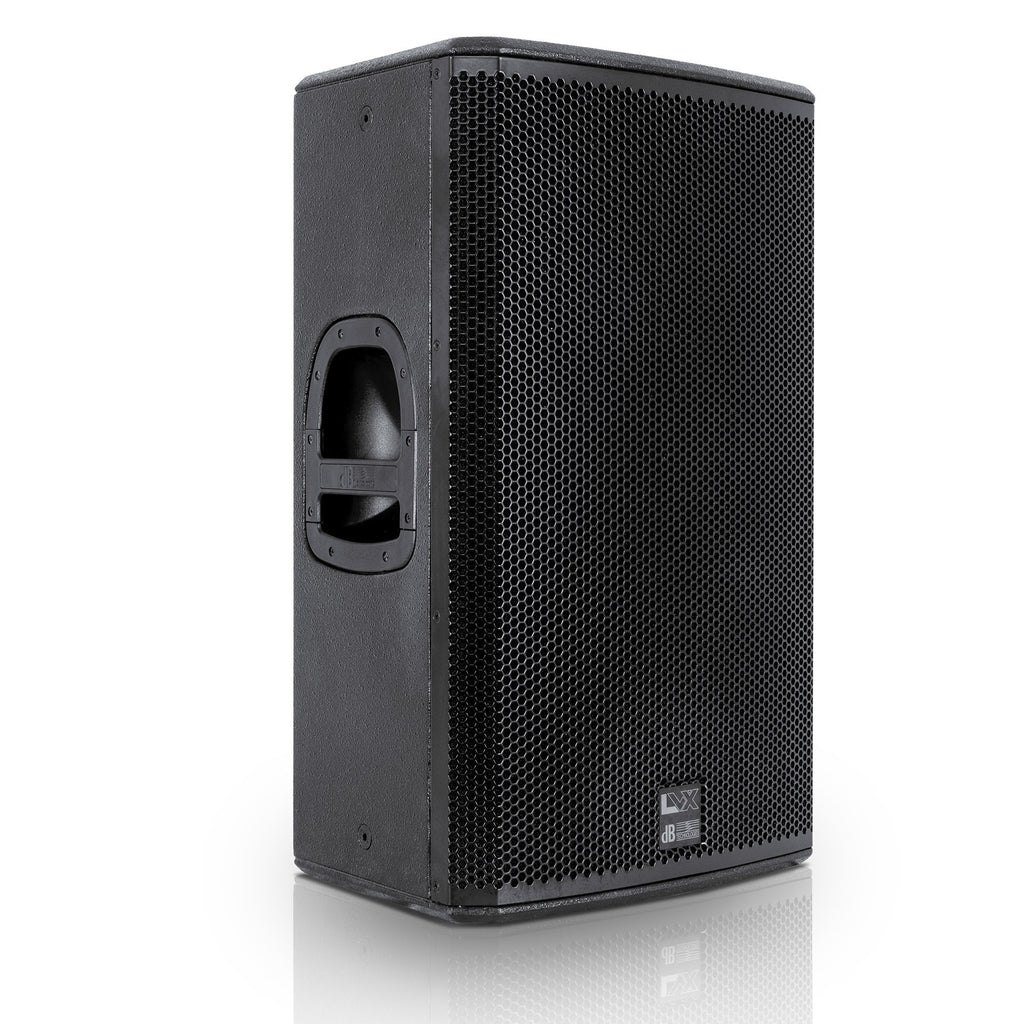

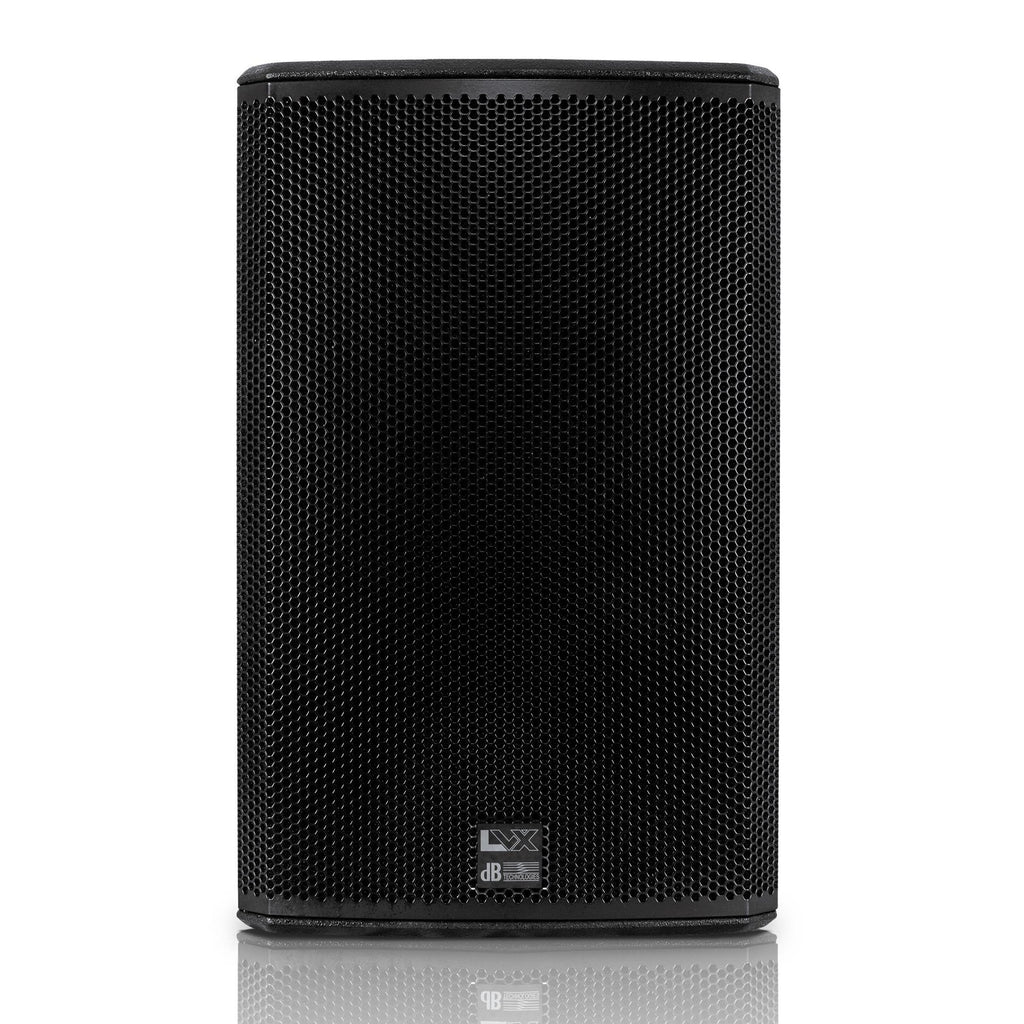

dB Technologies LVX15 15 inch Powered PA Speaker

As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

Specifications

Technical Data

• Speaker: 2-Way Active Speaker

Acoustical data

• Frequency Response: 49 - 20.000 Hz
• Frequency Response: 54 - 19.000 Hz
• Max SPL: 128 dB
• HF: 1 "
• Directivity: 90 x 40 °
• Horn: Rotatable CD Horn
• LF: 15"

Amplifier

• Amp Technology: Digipro® G2
• Amp Class: Class-D
• Peak Power: 1600 W
• PRG Power: 800 W

Processor

• Controller: DSP 24bit/48kHz
• System Presets: Flat, Processed
• Limiter: Dual Active Peak, RMS, Thermal
• Crossover Frequency LF-HF: 1800 Hz
• Slope LF-HF: 24 db/Octave

Mechanics

• Housing: Multiplex
• Angles Up: Monitor use 44 °
• Handles: 3 (1x top side, 1x side)
• Rigging points: 12 x M10
• Pole mount: D36 mm
• Width: 430 mm (16.93 in)
• Height: 680 mm (26.77 in)
• Depth: 430 mm (16.93 in)
• Weight: 20.7 kg (45.64 lbs)
