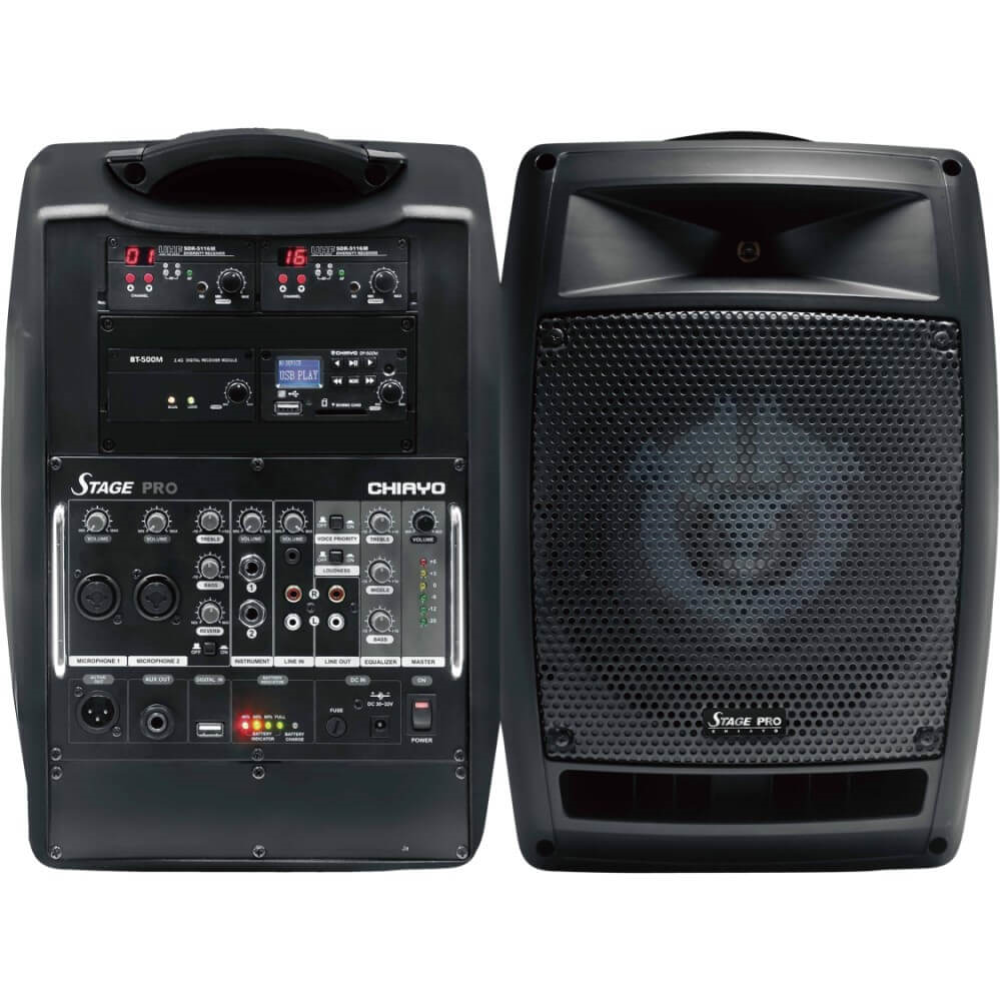

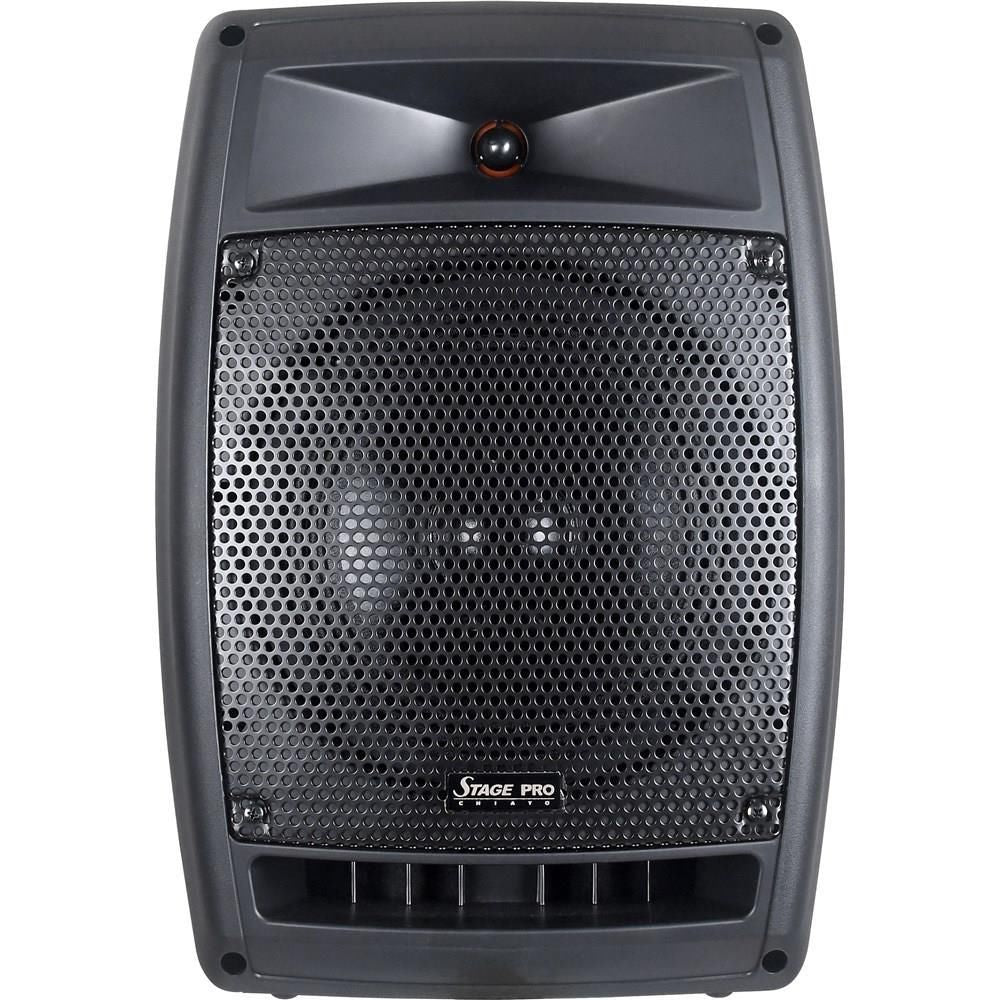

Chiayo STAGE PRO 200W Portable PA System - Open Box

STAGE MAN features four module slots to install receiver, transmitter and MP3 recorder player modules. Play back music by pairing the smartphone with the in-built Bluetooth receiver, or play audio via the RCA, 3.5mm audio input, or two ¼" instrument jacks with independently adjustable volume. Send audio outputs to an external amplifier or recorder via the ¼" or RCA jacks, or to an external active speaker via the XLR jack.

• Includes an Electronic Crossover and Class-D digital power amplifier delivering 100W to the LF driver and 50W to the HF driver; 150W of pure Class-D power.
• 2 power modes: Internal Rechargeable battery & DC jack.
• Up to 6 hours with Lead-Acid battery.
• User friendly battery compartment design for simple battery replacement.
• High efficiency 2-way system; compact cabinet and efficient 8″ + 1″ HF speaker for professional live performance.
• Optional CD/USB/SD/Digital video player modules (including remote control) and a digital recorder/player module.
• Up to 4 diversity receiver modules with 100 selectable frequencies in each system (optional).
• Automatic Digital limiter with 6 LED indicators prevents output distortion.
• 3-band equalizer, BASS/MID/TREBLE and MASTER volume control.
• VOICE PRIORITY function automatically ducks music during speech (switchable).
• LOUDNESS function boosts bass/treble performance (switchable).
• LINE OUT (RCA) for external audio recording.
• Multiple LINE IN options, 3.5mm jack/RCA, with individual volume controls (stereo).
• INSTRUMENT IN provides two 6.3mm jacks for up to two instrument level inputs.
• MICROPHONE 1 and 2 are XLR/6.3mm combo jack connectors for wired microphone inputs with individual volume control.
• BASS/TREBLE and REVERB control for wired microphones.
• REVERB with ON/OFF switch for wired and wireless microphone channels.
• DIGITAL IN allows playing audio files directly from computer via USB cable.
• ACTIVE IN and ACTIVE OUT (XLR) for multi-unit audio linking.
• Smart charging circuit with 4-step LED battery indicators and charging LED.

Exceptional listening experience

Built-in 200W class-D power amplifiers drives an 8” woofer and 1" tweeter to handle the amplification requirements of large events with a 500-1000 person crowd with ease. It can also connect to CHIAYO 12" subwoofers, bringing an immersive, unprecedented sound quality experience.

Multiple musical sensations

Features Volume, Treble and Bass EQ to dial music or voices exactly as you need.

Show personal unique sound

The Chaiyo STAGE MAN provides exceptional sound quality with incredible depth, regardless of if you're singing or speaking with a wired or wireless microphone. Delivering rich sound that sits great in any room.

Loudness Compensation

Loudness compensation boosts high and low frequencies automatically. Even at low volumes, the treble and bass is enhanced for a more natural sound playback.

• Max Power Output: 200W, 4Ω Load (class-D)
• Speaker: 8" LF + 1" HF with Electronic Crossover
• Audio Input: Mic In x2 (¼"/XLR Combo), Line In x2 (3.5mm, RCA L/R), Inst In x2 (¼"), Digital In (USB), BLUETOOTH In
• Audio Output: Line Out (RCA L/R), ACTIVE Out (XLR)
• THD: <0.5%
• Frequency Response: 50Hz - 20kHz ±3dB
• Antenna: Built-In
• Power Supply: 100-240V AC, 30-32V DC/4A
• Standby Time: 5-6 Hours in Music, >10 Hours in Speech
• Charging Time: Approx. 6-8 Hours
• Dimensions
  • 424mm (H) x 290mm (W) x 250mm (D)
  • 12.5kg
