BOSS WL-60 Wireless Guitar System

The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries.

Features

• Premium audio performance with lightning-fast BOSS wireless technology
• Automatic 14-channel scanning makes set up quick and uncomplicated
• Large LCD shows channel status, wireless strength, battery life, and more

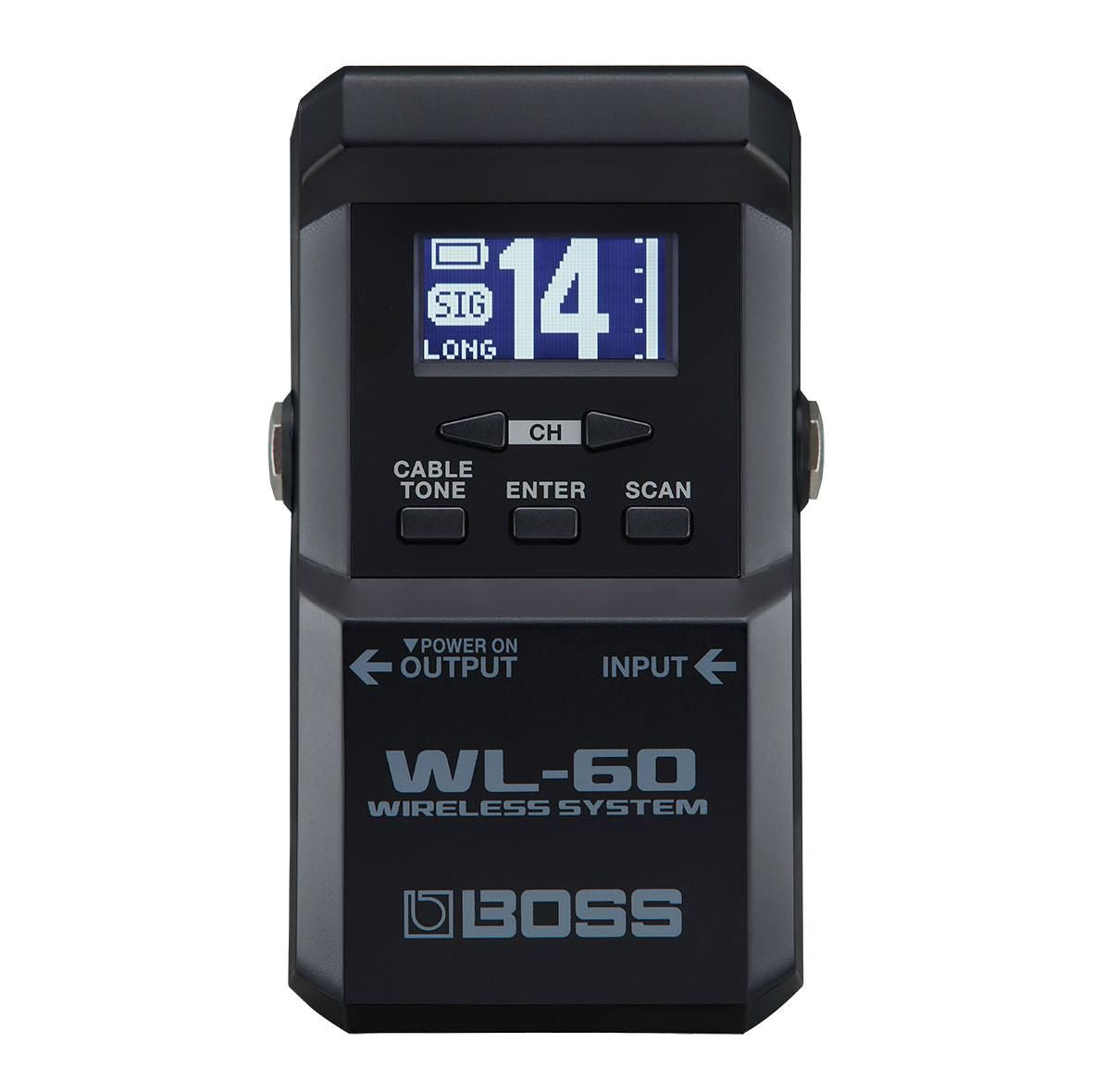

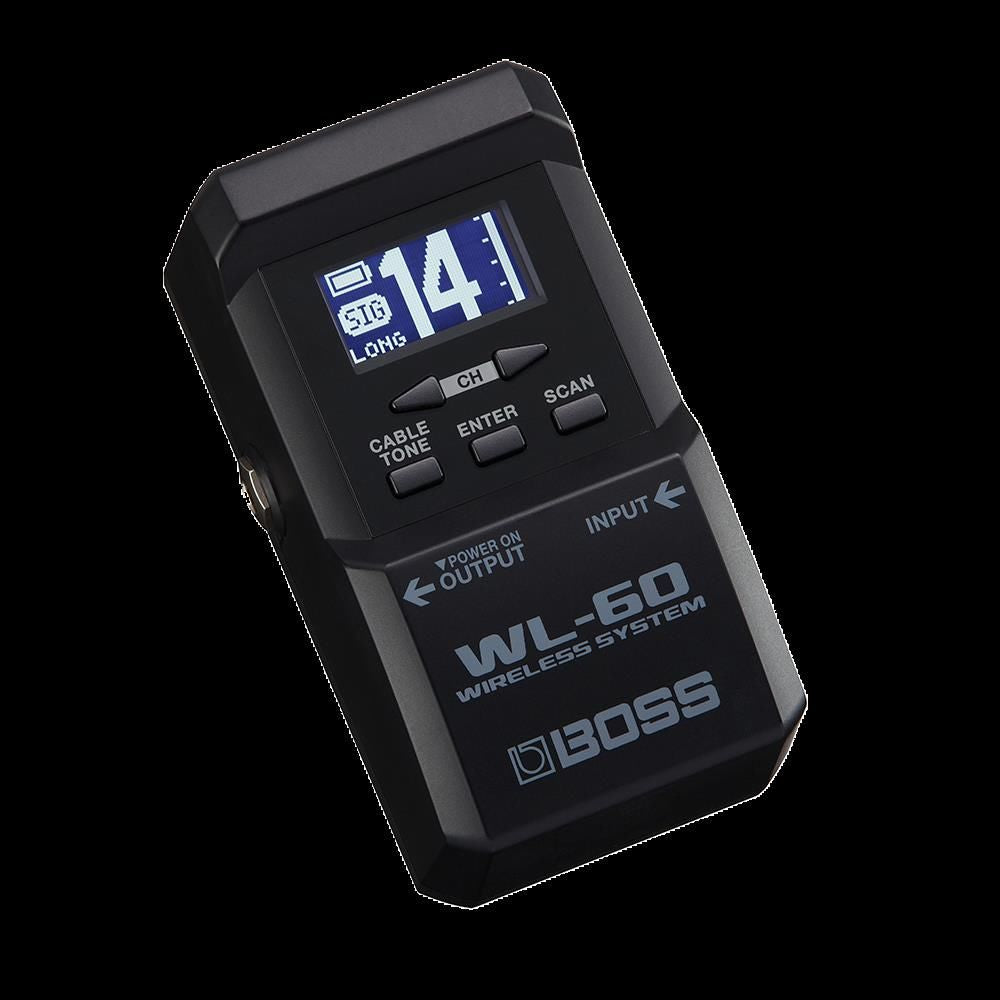

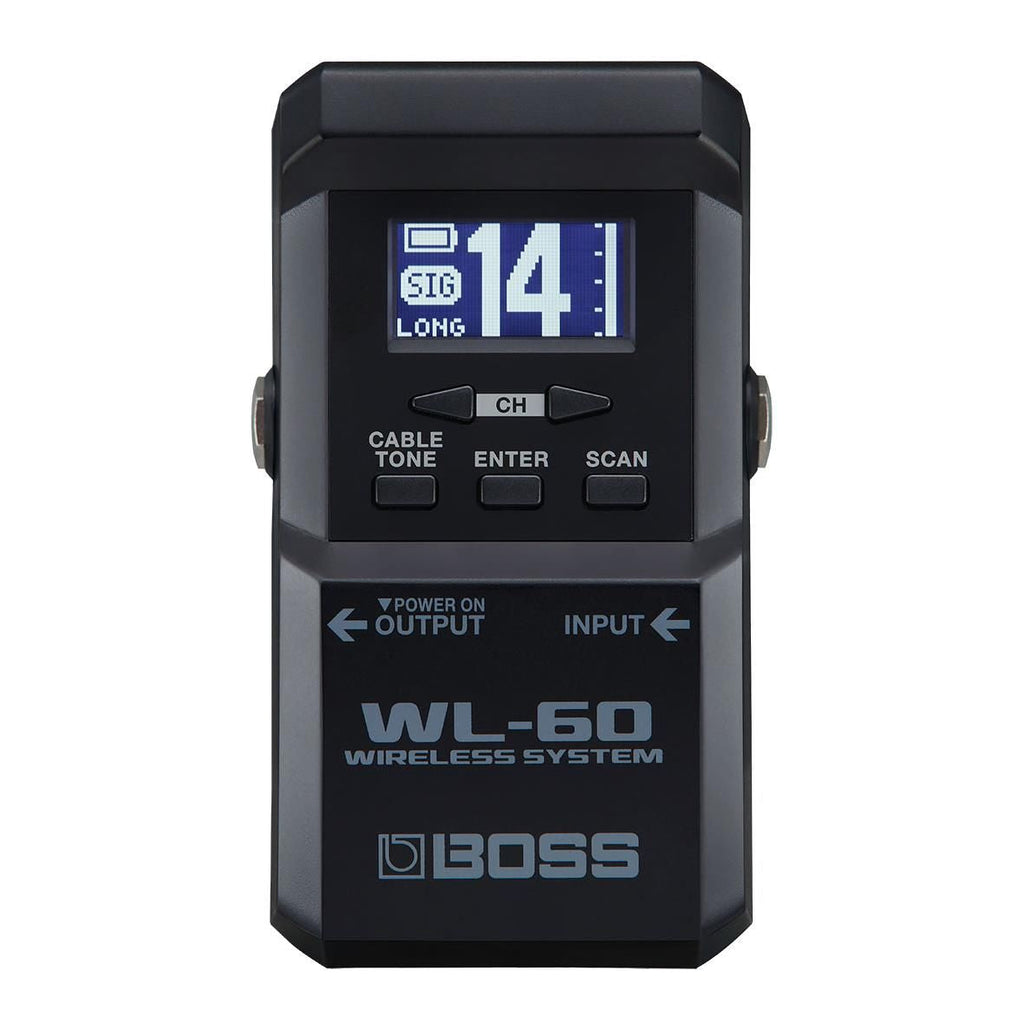

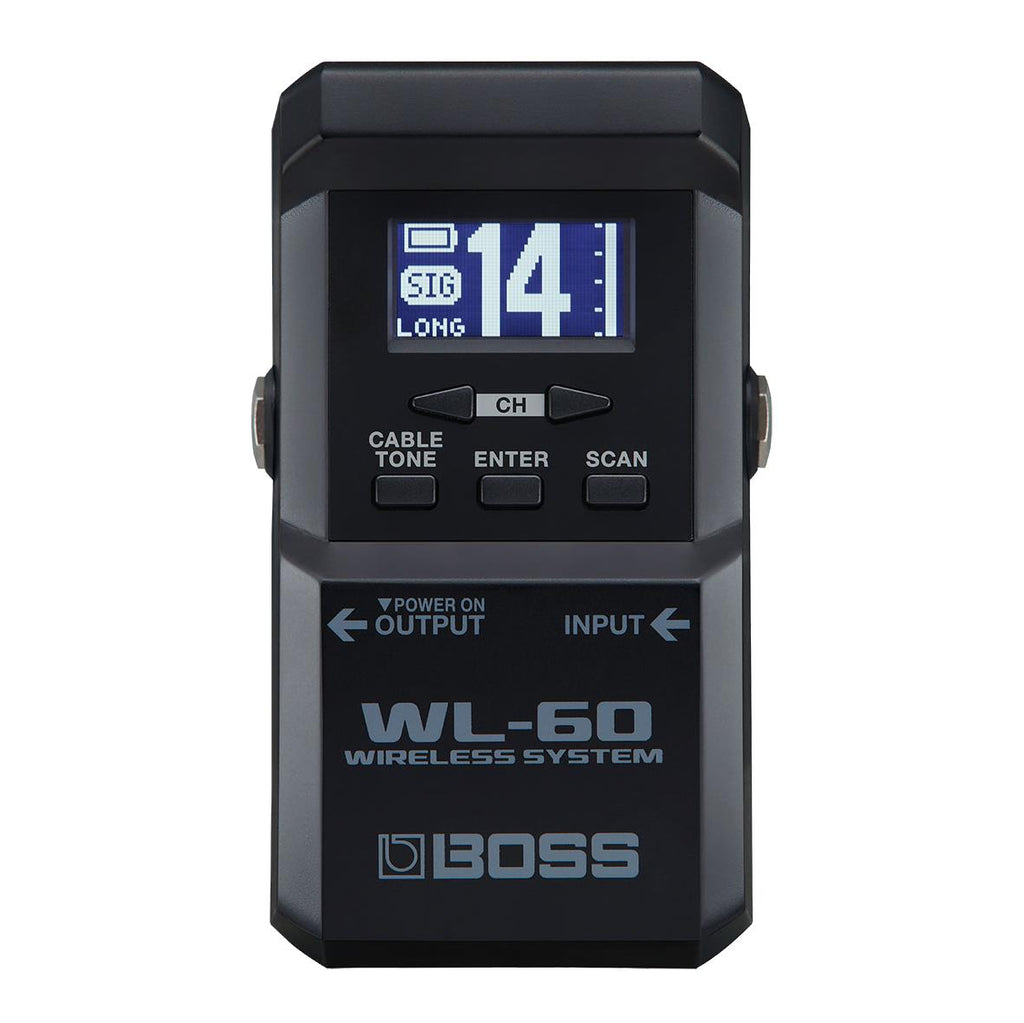

• Stompbox-size receiver fits easily on your pedalboard
• Bodypack transmitter works with nearly any instrument and runs for up to 25 hours on two AA alkaline batteries
• Transmission range: 20 meters/65 feet line of sight (may vary due to local conditions)
• Short high-quality cable included for connecting the transmitter to a guitar or bass
• Receiver powered by AC adaptor or two AA alkaline batteries

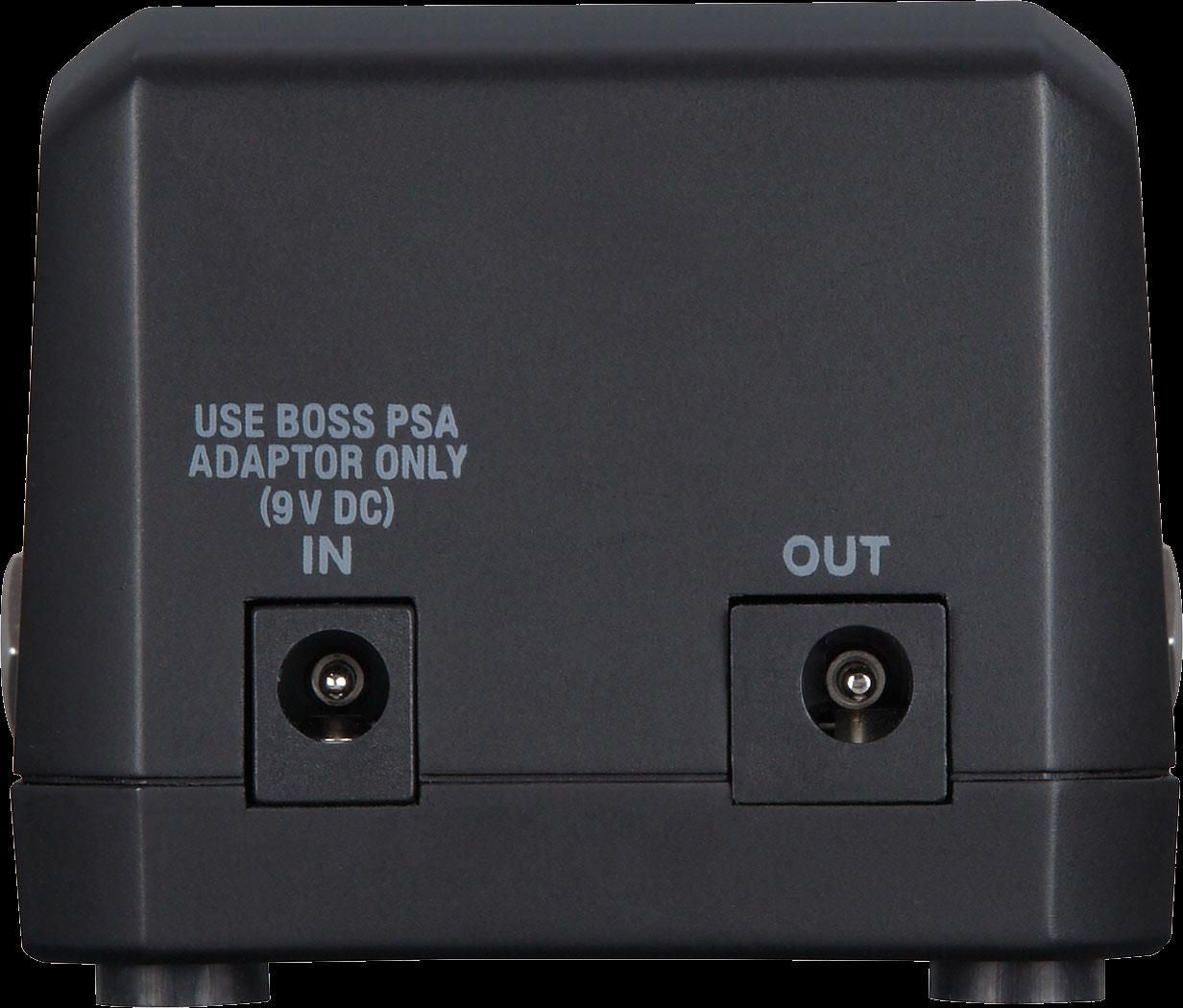

• Convenient DC output on receiver for powering other pedals (when using AC adaptor)
• Instrument input for using a standard cable without removing the receiver from a pedalboard
• Included WL-60T Transmitter also available separately for backup and outfitting additional stage instruments

Specifications

Wireless Format
BOSS proprietary digital audio format

Wireless carrier frequency
2.4 GHz

Compatible Channels
14 (May vary due to local conditions)

Transmission Range
65 feet line-of-sight (May vary due to local conditions)

Latency
2.3 ms

Dynamic Range
110 dB or greater

Frequency Response
20 Hz--20 kHz

Nominal Input Level
-10 dBu

Input Impedance
1 M ohm

Nominal Output Level
-10 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Controls
CH button
SCAN button
ENTER button
CABLE TONE button

Indicators
Graphic LCD 64 x 32 dots

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
IN jack
OUT jack

Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)

Current Draw
70 mA

Expected battery life under continuous use
Alkaline battery (AA, LR6): Approximately 10 hours
* These figures will vary depending on the actual conditions of use.

Accessories
Owner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Guitar cable
Rubber foot x 4
Alkaline battery (AA, LR6) x 2

Options (sold separately)
AC adaptor: PSA-S series
Parallel DC cord: PCS-20A (DC Plug x8)

Width
70 mm
2-13/16 inches

Depth
120 mm
4-3/4 inches

Height(excluding rubber foot)
54 mm
2-1/8 inches

Height(including rubber foot)
57 mm
2-1/4 inches

Weight (excluding battery)
180 g
7 oz

Weight (including battery)
220 g
8 oz
* 0 dBu = 0.775 Vrms
