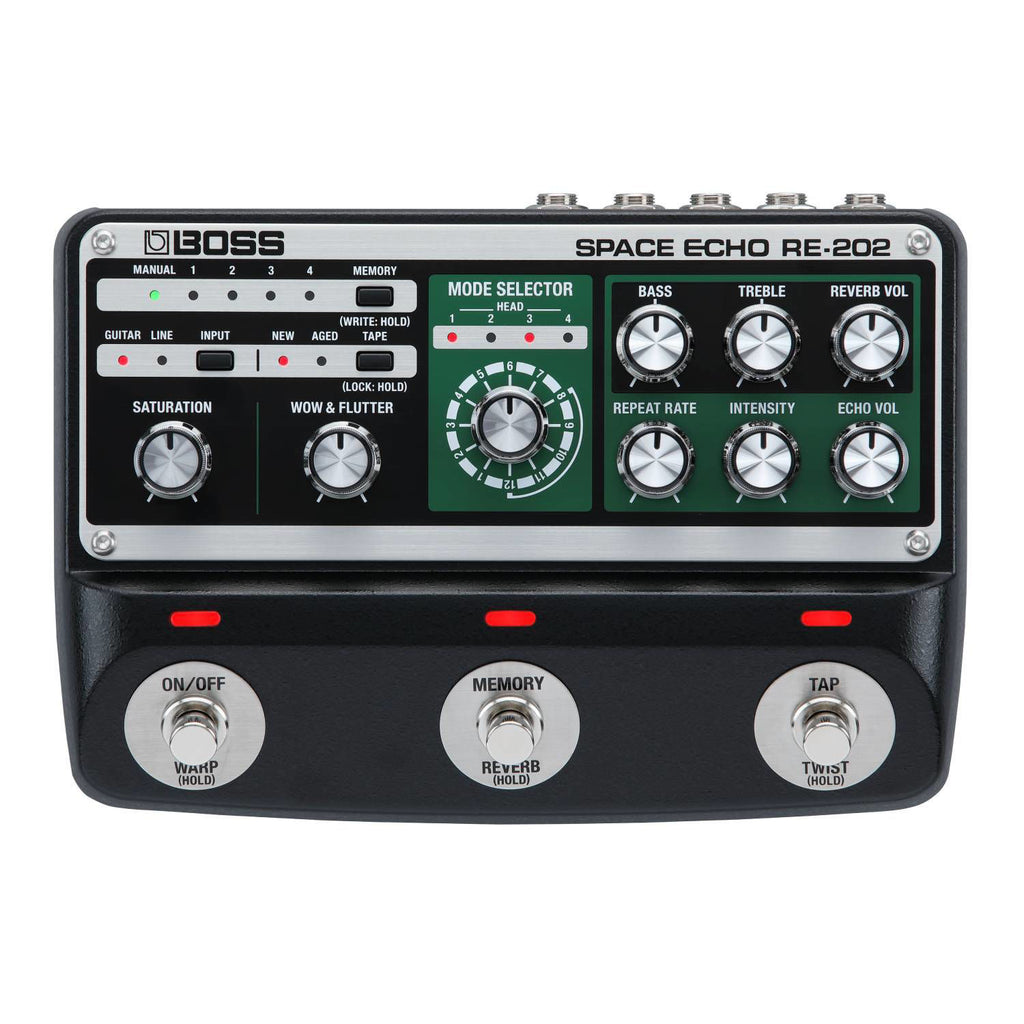

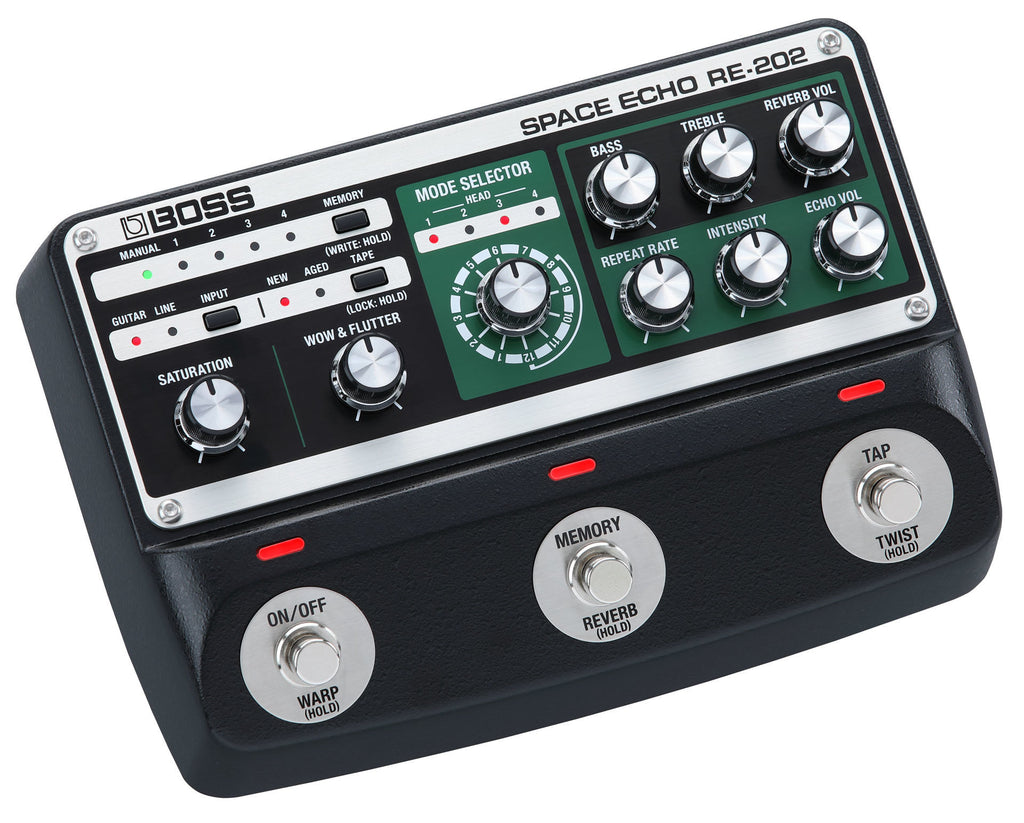

BOSS RE202 Space Echo Guitar Effects Pedal

Introduced in 1974, the Roland RE-201 Space Echo stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.

Backed by intensive R&D and our latest innovations, the RE-202 faithfully delivers the authentic sound and behavior of the Space Echo like never before. Built by the company that designed the original, this advanced pedal captures the RE-201’s magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colorful preamp circuit. And to take things even further, we’ve expanded the vintage Space Echo experience with lots of new features tuned for today’s music.

Features

• Authentically recreates the sound and behavior of the legendary Roland RE - 201 Space Echo
• Classic multi - head tape echo sound with expanded delay time
• Original three - head configuration plus additional tape head for 12 unique echo combinations
• Independent stereo reverb section with original spring reverb type plus hall, plate, room, and ambience
• Saturation control for adding magnetic tape compression and preamp coloration
• Wow & Flutter control for introducing varying levels of natural tape modulation
• Choose between new and aged tape conditions
• Selectable input modes for optimum performance with instrument s and line - level gear
• Warp and Twist effects with footswitch control
• Select between the unprocessed analog dry signal or the modeled sound of the original Space Echo preamp
• Four onboard memories plus the curren t panel settings
• Save and select 127 memories via external MIDI program change
• Tap tempo and carryover functions
• True stereo input and output
• Expandable control via external footswitches, an expression pedal , or MIDI

Specifications

• Sampling Frequency: 48 kHz
• AD Conversion:

  • 24 bits + AF method
  • AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.
• DA Conversion: 32 bits
• Processing: 32-bit floating point
• Modes: 12 modes
• Memory: 127 + Manual
• Nominal Input Level: INPUT A/MONO, INPUT B: -10 dBu
• Maximum Input Level: INPUT A/MONO, INPUT B: +7 dBu
• Input Impedance: INPUT A/MONO, INPUT B: 1 M ohm
• Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu
• Maximum Output Level: OUTPUT A/MONO, OUTPUT B: +7 dBu
• Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm
• Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:

  • ON/OFF switch, MEMORY switch, TAP switch
  • SATURATION knob, WOW & FLUTTER knob, MODE SELECTOR knob, BASS knob, TREBLE knob, REVERB VOL knob, REPEAT RATE knob,
  • INTENSITY knob, ECHO VOL knob
  • MEMORY button, INPUT button, TAPE button

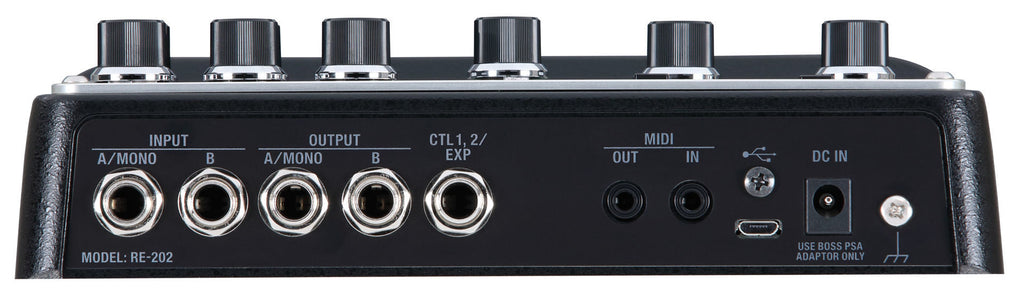

• Connectors:

  • INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
  • CTL 1, 2/EXP jack: 1/4-inch TRS phone type
  • MIDI (IN, OUT) jacks: Stereo miniature phone type
  • DC IN jack
  • USB port: USB micro B-type (program update only)
• Power Supply: AC adaptor
• Current Draw: 140 mA
• Dimensions:

  • 192 (W) x 133 (D) x 52 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/64 (H) inches
  • 192 (W) x 133 (D) x 53 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/32 (H) inches (including rubber foot)
• Weight (including battery): 860 g; 1 lb 15 oz
• Accessories:

  • AC adaptor
  • Owner's Manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  • Rubber foot
• Options (sold separately):

  • Footswitch: FS-5U
  • Dual footswitch: FS-6, FS-7
  • Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
  • MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

* 0 dBu = 0.775 Vrms
