This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills.
Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI.
A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.
Features
- Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
- Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
- Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
- Straightforward Drive, Tone and Level controls
- BOSS five-Year Warranty
Specifications
SPECIFICATIONS (LOOPER)
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Recording/Playback:
- Maximum Recording Time: Approx. 6 hours (stereo)
- Maximum Phrase Memory: 99
- Number of Tracks: 2
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
SPECIFICATIONS (RHYTHM)
- Rhythm Type: 280 types or greater
- Rhythm Control: Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
- Rhythm Kit: 16 types
- Maximum Polyphony: 24 voices
- Effect: Reverb (only for rhythm part)
SPECIFICATIONS (COMMON)
- Memory: 99
- Nominal Input Level: INPUT A/MONO, B: -10 dBu
- Maximum Input Level: INPUT A/MONO, B: +8 dBu
- Input Impedance: INPUT A/MONO, B: 1 M ohm
- Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass

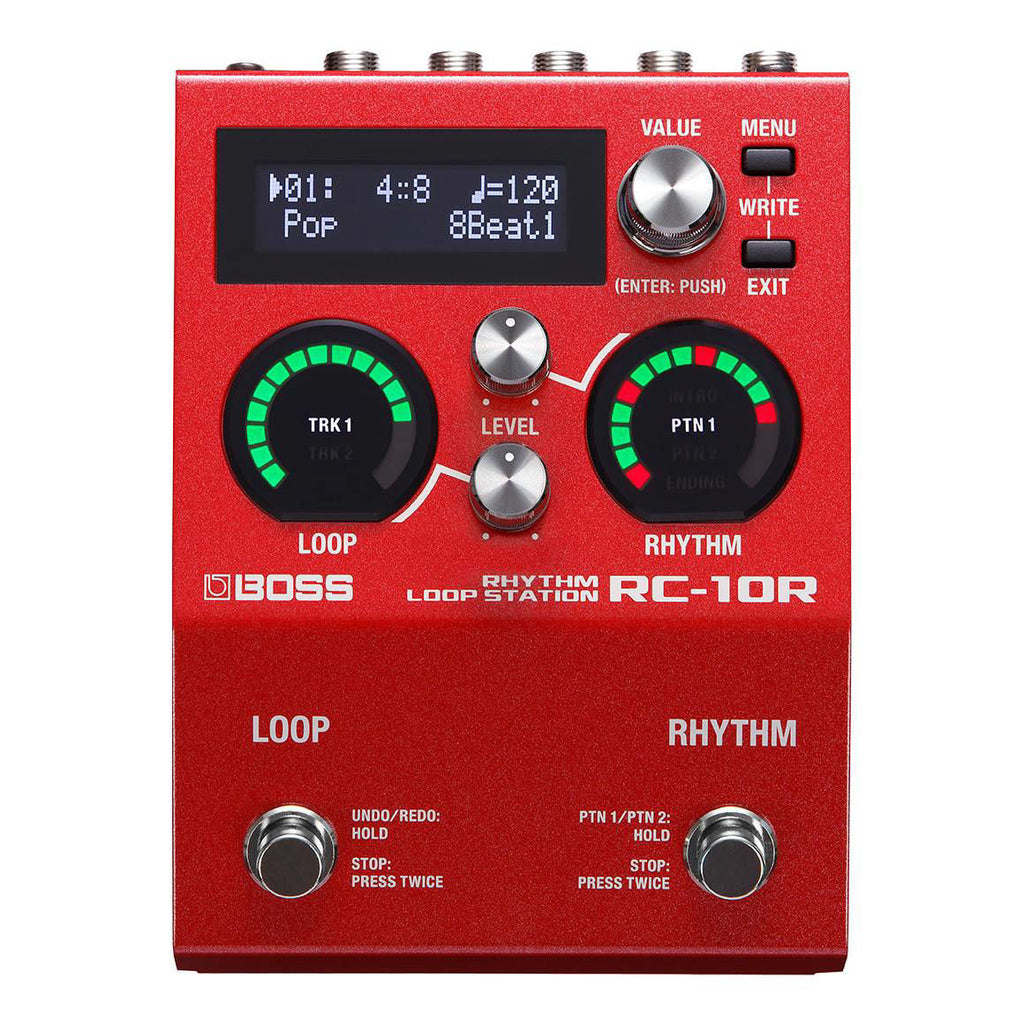

- Controls:
- RHYTHM switch, LOOP switch
- VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
- MENU button, EXIT button
- Display: 16 characters x 2 lines LCD (with backlit)
- Indicator: RHYTHM indicator, LOOP indicator

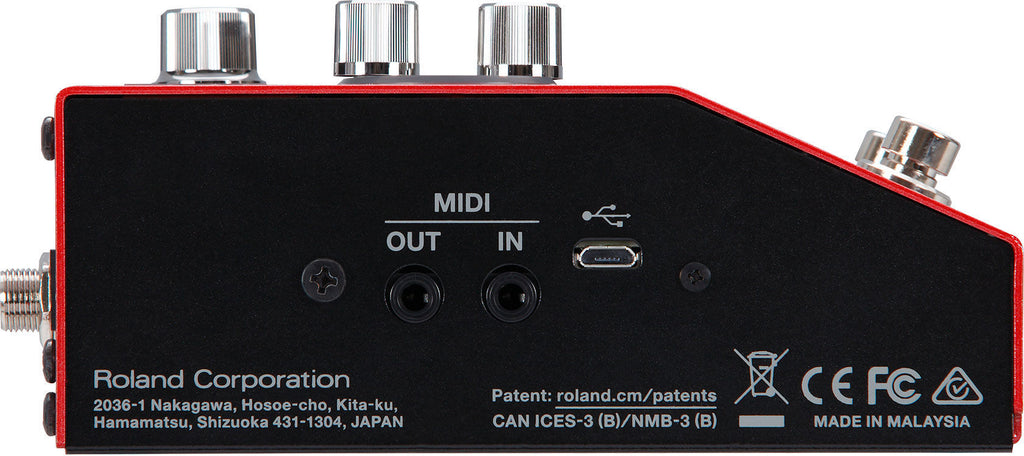

- Connectors:
- INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
- CTL 1, 2/EXP jack: 1/4-inch TRS phone type
- MIDI (IN, OUT) jacks: stereo miniature type
- DC IN jack
- USB COMPUTER port: USB micro B type
- Power Supply: AC adaptor
- Current Draw: 250 mA
- Accessories:
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor
- Rubber foot x 4
- Options (sold separately):
- Footswitch: FS-5U
- Dual footswitch: FS-6, FS-7
- Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35
- Width: 101 mm; 4 inches
- Depth: 138 mm; 5-7/16 inches
- Height (excluding rubber foot): 63 mm; 2-1/2 inches
- Height (including rubber foot): 65 mm; 2-9/16 inches
- Weight (excluding AC adaptor): 620 g: 1 lbs 6 oz
