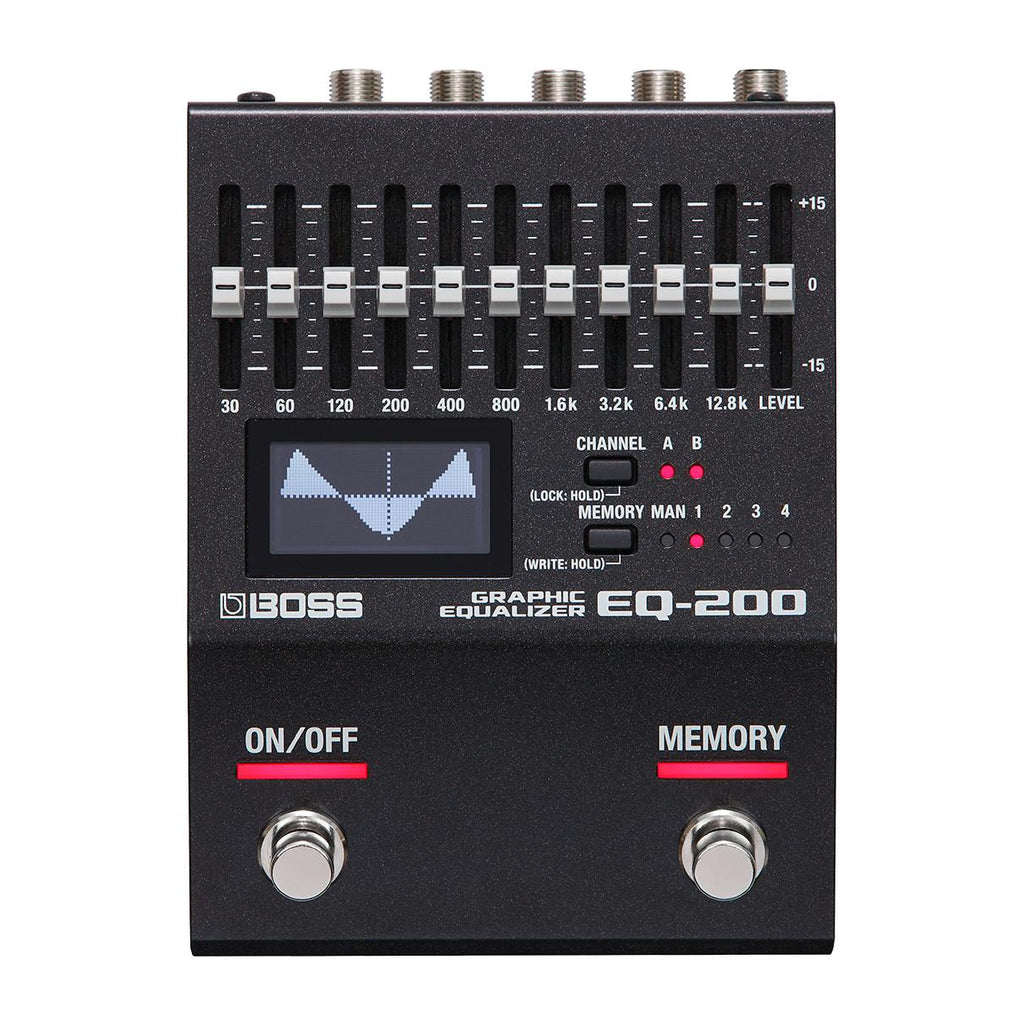

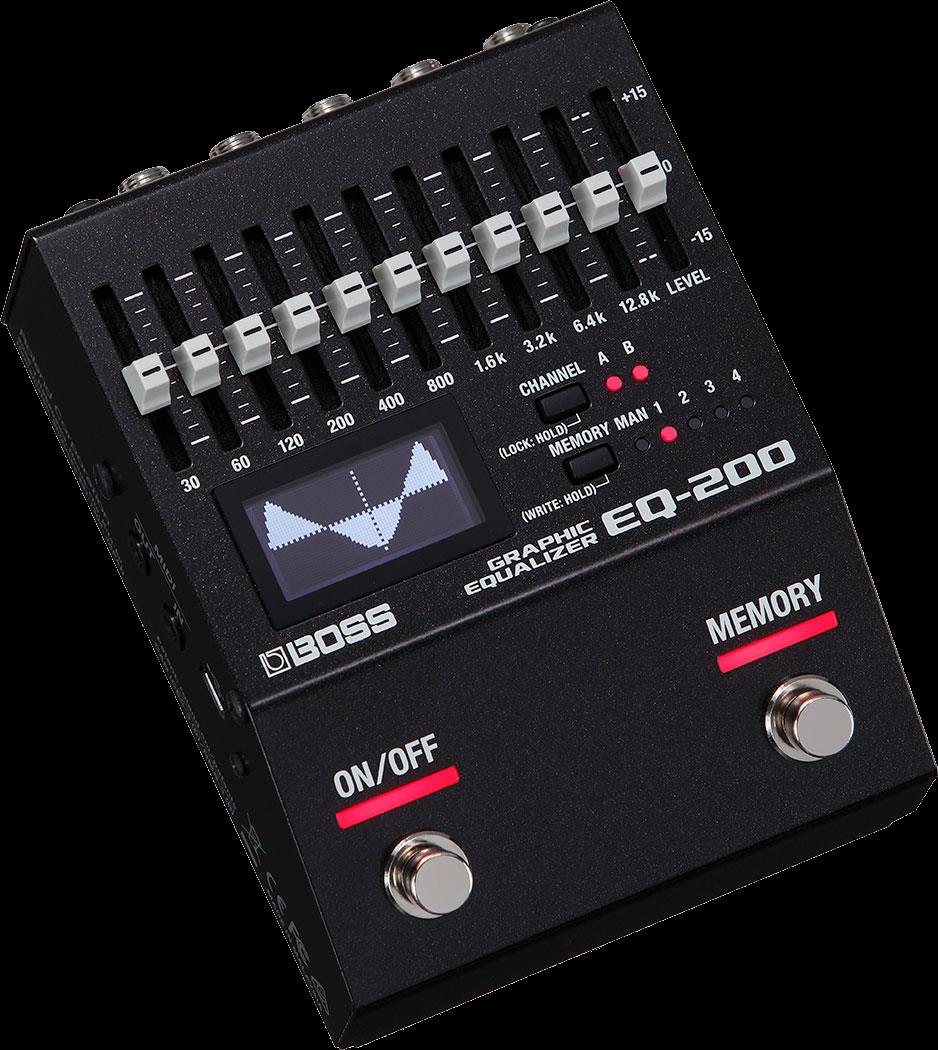

BOSS EQ-200 Graphic Equalizer Guitar Effects Pedal

Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI. The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments. Features Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate Dual 10-band EQs that can be used in stereo, parallel, or series Insert function for processing external effects with pre and/or post tone shaping Three different range settings: 30 Hz to 12.8 kHz, 32.1 Hz to 16 kHz, and 28 Hz to 14 kHz 15 dB boost/cut on each band, plus overall level control for each channel Stereo link function for operating both EQ channels together Intuitive interface with hands-on sliders and graphic EQ display Real-time panel setting and four memories for storing favorite sounds Panel Lock function disables controls to prevent unwanted changes Two onboard footswitches with customizable assignments Support for expanded control via external footswitches, an expression pedal, or MIDI Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately) Micro USB jack for firmware updates Runs on PSA-series AC adaptor or three AA-size batteries Specifications   Sampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointModes12 modesSTANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSEMemory4 + ManualNominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +7 dBuInput ImpedanceINPUT A/MONO, B: 2 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +7 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY/TAP switchMODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knobTAP DIVISION button, MEMORY buttonDisplay7 segments, 3 characters (LED)IndicatorTAP DIVISION indicator, MEMORY (MAN, 1--4) indicatorsConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone typeCTL 1, 2/EXP jack: 1/4-inch TRS phone typeMIDI (IN, OUT) jacks: Stereo miniature phone typeDC IN jackUSB port: USB micro B-type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adaptor (sold separately)Current Draw225 mAExpected Battery Life Under Continuous UseAlkaline: Approx. 4 Hours* These figures will vary depending on the actual conditions of use.AccessoriesOwner's ManualLeaflet USING THE UNIT SAFELYAlkaline battery (AA, LR6) x 3Rubber foot x 4Options (sold separately)AC adaptor: PSA-S seriesFootswitch: FS-5UDual footswitch: FS-6, FS-7Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5TRS/MIDI cable: BMIDI-5-35Width101 mm4 inchesDepth138 mm5-7/16 inchesHeight63 mm2-1/2 inchesHeight (including rubber foot)65 mm2-9/16 inchesWeight610 g1 lb 6 ozWeight (including battery)680 g1 lb 8 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
