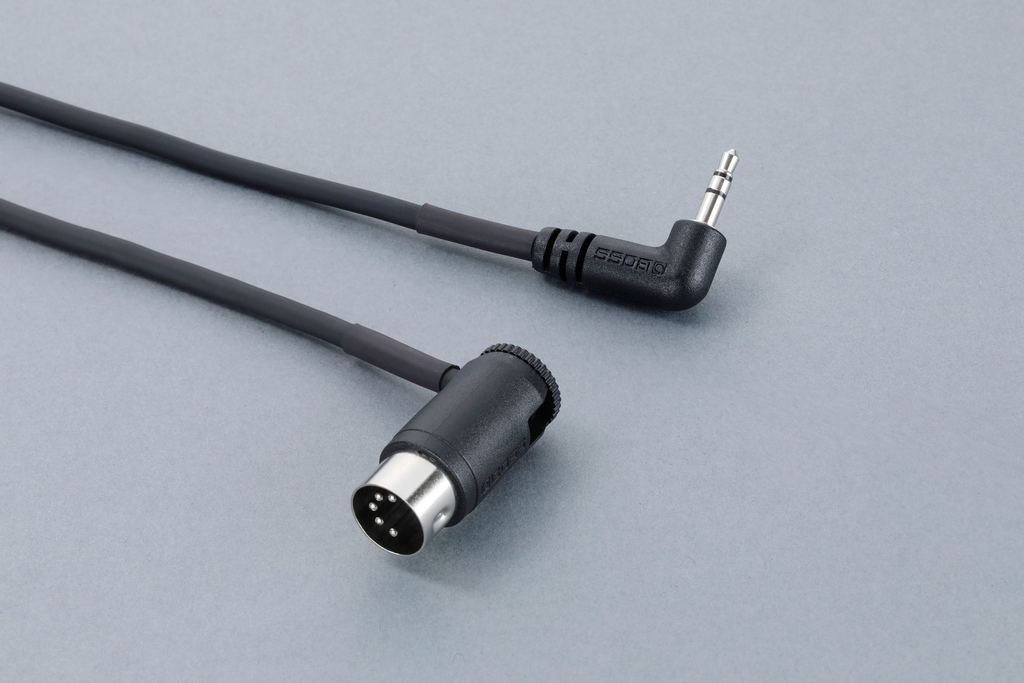

BOSS BMIDI-1-35 MIDI to Mini TRS cable (1ft)

The BMIDI-1-35 cable provides premium connectivity for the expanding lineup of BOSS pedals with space-saving 3.5 mm TRS MIDI jacks.

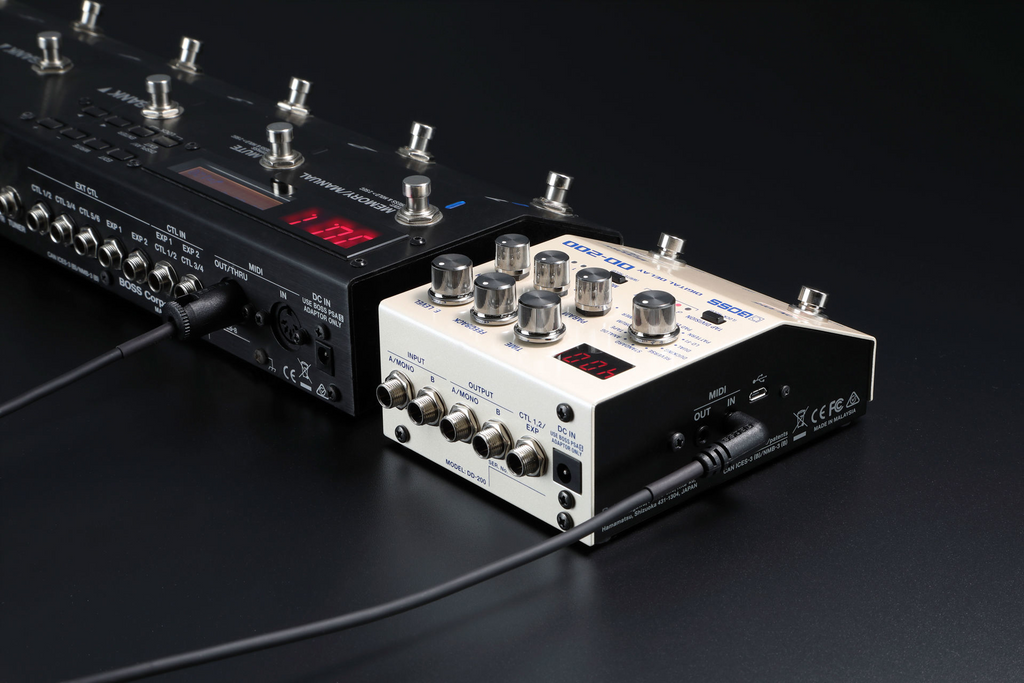

These rugged and reliable cables feature 3.5 mm TRS and 5-pin DIN connectors, allowing you to connect products such as the BOSS 200 series, EV-1-WL, and others to gear equipped with traditional MIDI jacks, from pedals, loop switchers, and multi-effects units to keyboards and MIDI interfaces for computers.

The low-profile plugs fit into tight spaces on your pedalboard, with a slim right-angle plug housing on the TRS side and three-way cable adjustment on the 5-pin DIN connector.

Features

• MIDI cable with right-angle 3.5 mm TRS and 5-pin DIN* connectors
• Compatible with all BOSS products with 3.5 mm TRS MIDI jacks
• Designed to fit in tight spaces with a slim right-angle housing on the TRS plug and three-way cable exit direction on the 5-pin connector
• Rugged and robust design
• Oxygen-free copper wire and shielding
• Flexible and durable PVC outer jacket
• Available in two lengths: 1 ft./30 cm (BMIDI-1-35) and 2 ft./60 cm (BMIDI-2-35)
• For applications where you need a longer cable, check out the 5 ft./1.5 m BMIDI-5-35

*The BMIDI-1-35 and BMIDI-2-35 are three-conductor cables. Pins 1 and 3 on the 5-pin DIN are unconnected.

Specifications

• BMIDI-1-35: BOSS 3.5mm TRS/MIDI Cable
• Cable Length: BMIDI-1-35: 30 cm; BMIDI-1-35: 12 inches
• Plug:

  • TRS: 3.5 mm Stereo Mini Plug Angled (Nickel Plated)
  • MIDI: DIN 5 - pin (Nickel Plated)
• Plug dimensions:

  • TRS: 29.7 (W) x 14 (D) x 9 (H) mm
  • 1-3/16 (W) x 9/16 (D) x 3/8 (H) inches
  • MIDI:16 (W) x 16 (D) x 36.6 (H) mm
  • 11/16 (W) x 11/16 (D) x 1-1/2 (H) inches
