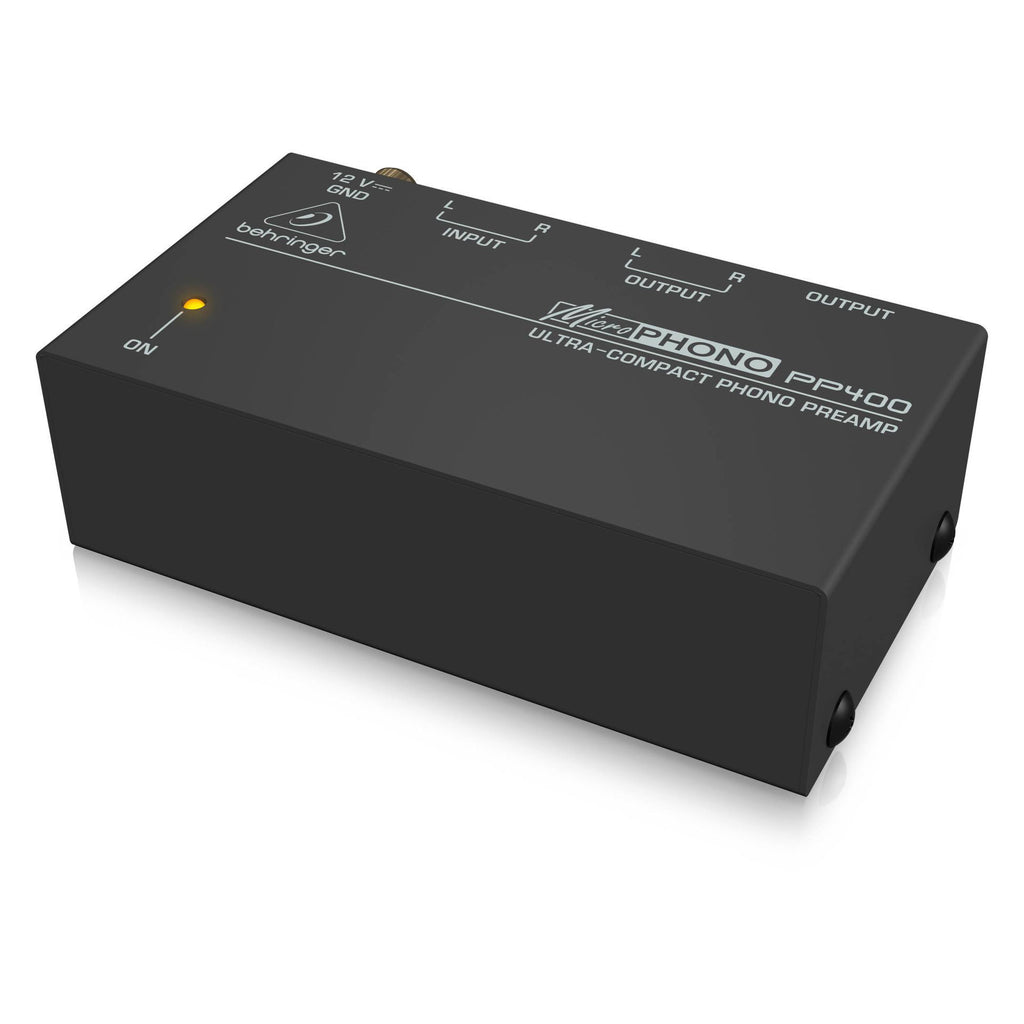

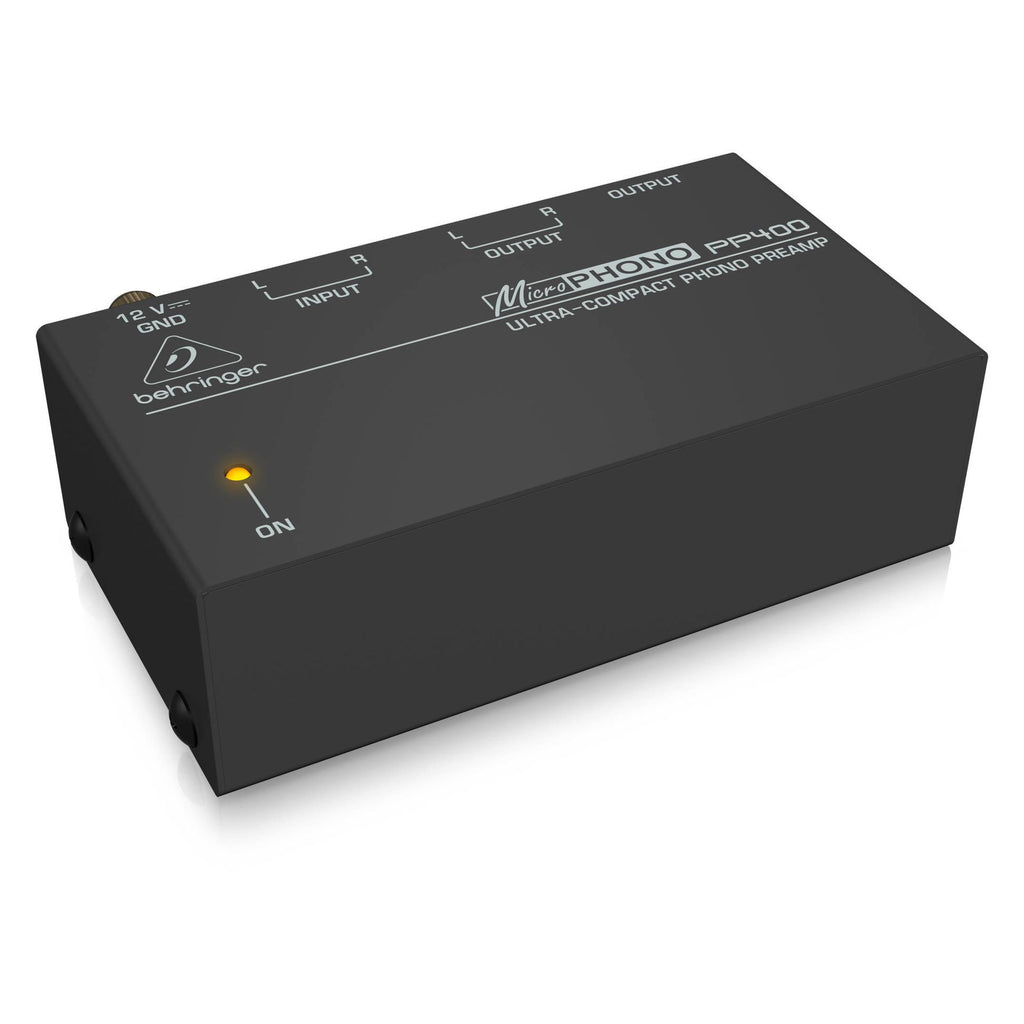

Behringer PP400 MicroPhono Preamp

In the present age of the mp3 and other digital audio formats, it can be easy to forget that turntable signals needs a little help before your mixer, or home entertainment system, can bring those memories back to life.

Thanks to the MICROPHONO PP400 phono preamp, your turntable will get the boost it needs, and you can relive all those precious memories – or create some new ones!

Features

Specifications

Input

• Type: RCA connector
• Impedance: approx. 47 kO
• Max. input level: -23.5 dBV @ 1kHz

Output

• Type: RCA and 1/4" TRS, stereo connectors
• Impedance: approx. 50 O
• Max. output level: +11.5 dBV @ 1 kHz

System Specification

• Frequency Response: RIAA
• THD: 0.06% typ. @ -40 dBu/1 kHz
• Gain: 35 dB
• Signal-to-noise ratio: 68 dBu @ 0 dBu, A-weighted
• Input Sensitivity: 5.3 mV @ 1kHz

Power Supply

• Mains connection: external power supply, 12 V - / 150 mA
• Main Voltage: 240 V~, 50 Hz
• Power consumption: approx. 1.5 W

Dimension/Weight

• Dimension (HxDxW): approx. 1 1/4 x 4 x 2 1/2" approx. 32 x 103 x 64 mm
• Weight: approx. 0.40 lbs/0.180 kg

WATCH: MICROPHONO PP400 Ultra-Compact Phono Preamp
