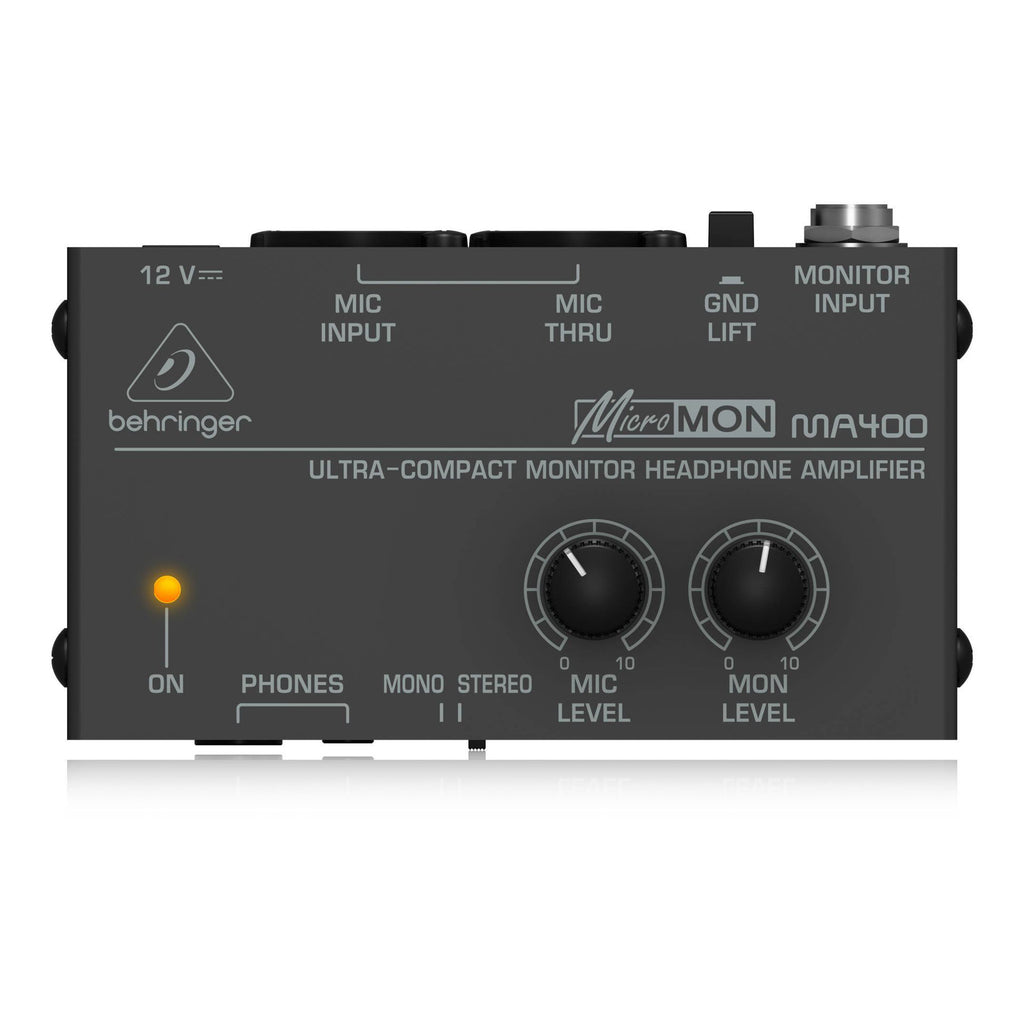

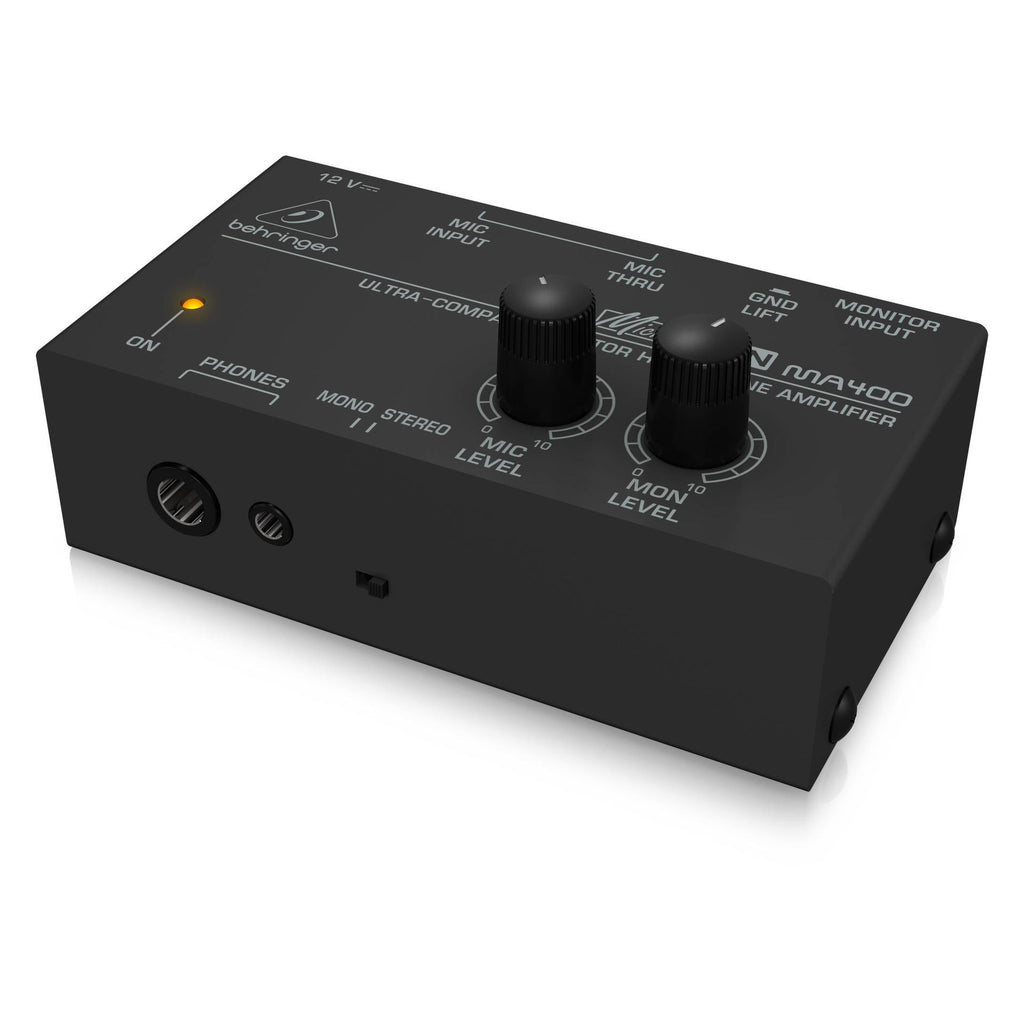

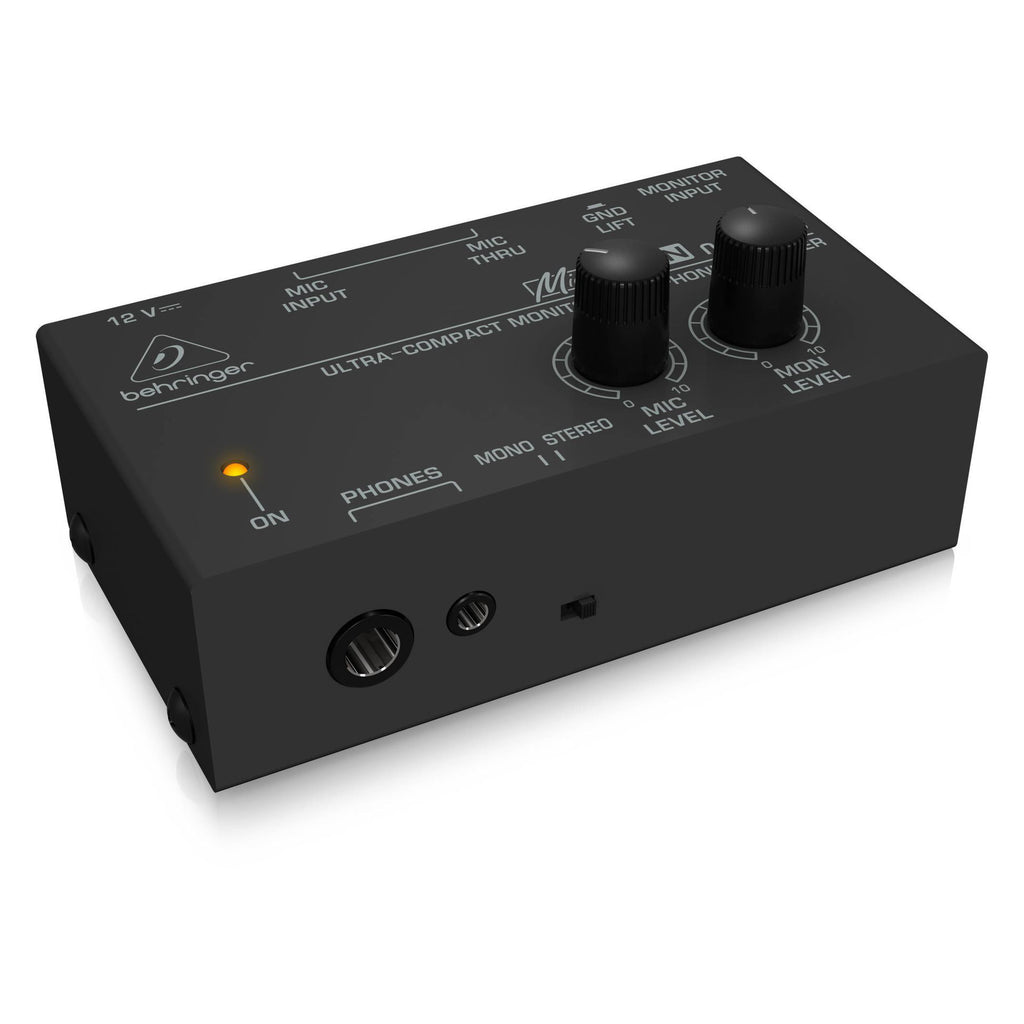

Behringer MA400 MicroMon Headphone Amp

The ultra-compact MICROMON MA400 is the ideal personal monitor mixer for the performer who is always asking for “more me.” Featuring a flexible Mic In and Mic Thru connectors and Ground Lift switch, as well as stereo Monitor input with a dedicated Monitor Level control and Mono/Stereo switch, the MA400 has everything you need to satisfy even the most-demanding performer on stage.

Features

• Ultra-compact monitor headphone amplifier for studio and stage applications
• Personal ''more me'' mixer – mix a mic plus a monitor signal and hear them via headphones
• Flexible Mic In and Mic Through connectors plus Ground Lift switch
• Stereo Monitor input with dedicated Monitor Level control and Mono/Stereo switch
• High-power headphone output on 1/4'' and 1/8'' jack connectors
• DC 12 V adapter included
• 3-Year Warranty Program*
• Designed and engineered in Germany

Specifications

Mic Input

• Type: XLR connector
• Impedance: approx. 2 kO (balanced)
• Max. input level: typically 40 dB, >50 dB @ 1 kHz
• Gain: 40 dB
• Bandwidth: 15 Hz to 25 kHz

Mic Thru

• Type: XLR connector

Monitor Input

• Type: 1/4" TRS or 1/4" TS connector
• Gain: 10 dB
• Bandwidth: 10 Hz to 80 kHz

Phones Output

• Type: 1/4" TRS or 1/8" TRS connectors
• Impedance: min. 30 O
• Max. output level: approx. +10 dBu (60 mW) @ 100 O load

System Specifications

• THD: 0.005% typ. (100 O loading)
• Signal-to-noise ratio: -90 dBu @ 0 dBu, A-weighted

Powersupply

• Mains connection: external power supply, 12 V/ 150 mA
• Power Range: 240 V~, 50 Hz
• Power consumption: Approx. 2 W

Dimension/Weight

• Dimension: approx. 1 5/6" x 4" x 2 1/2" (approx. 41 x 103 x 64 mm)
• Weight: approx. 0.84 lbs / 0.38 kg
