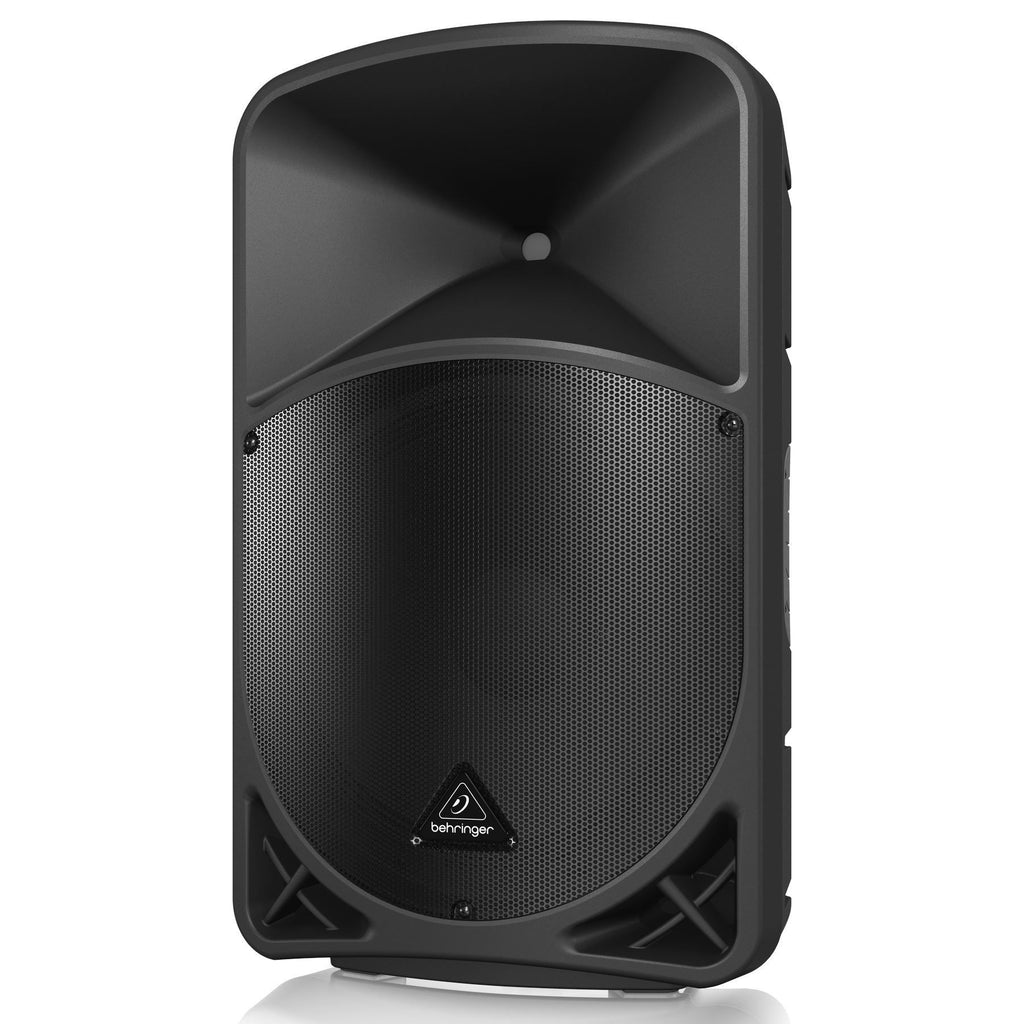

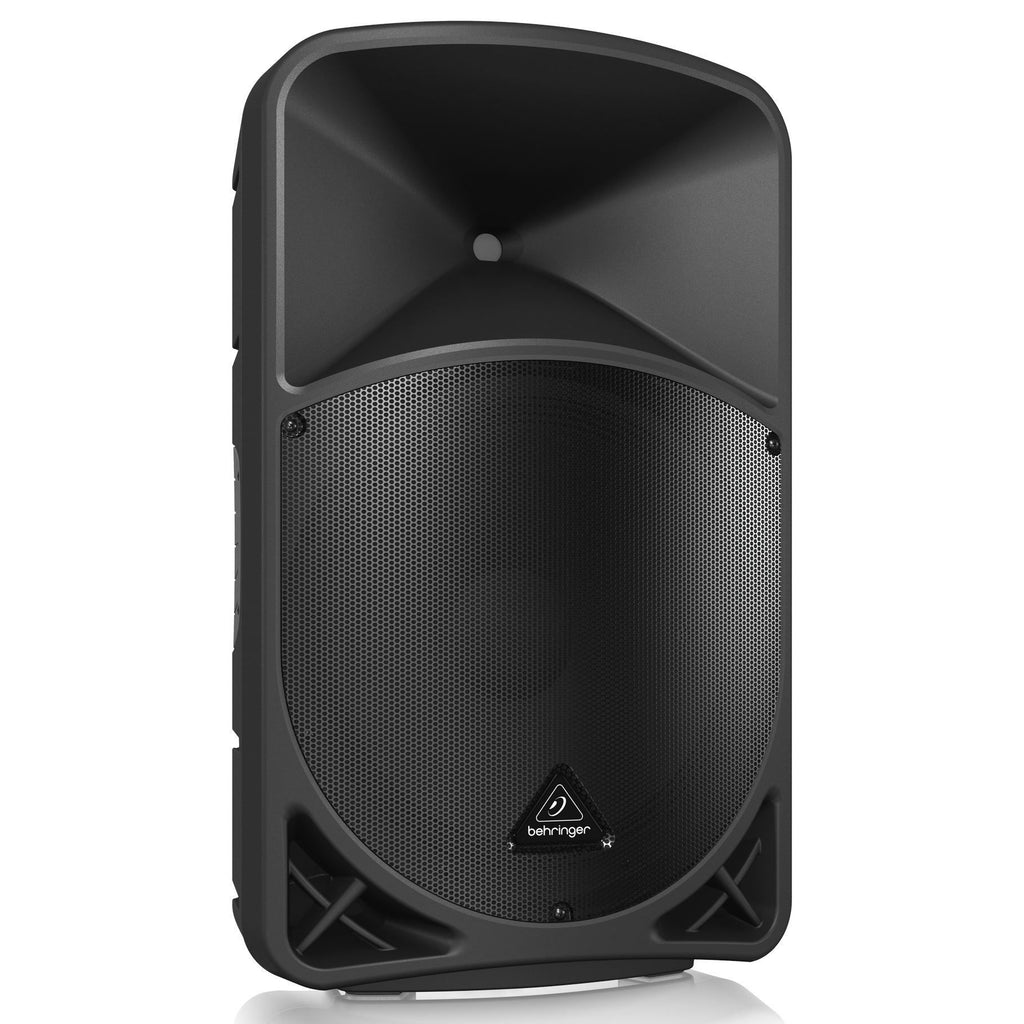

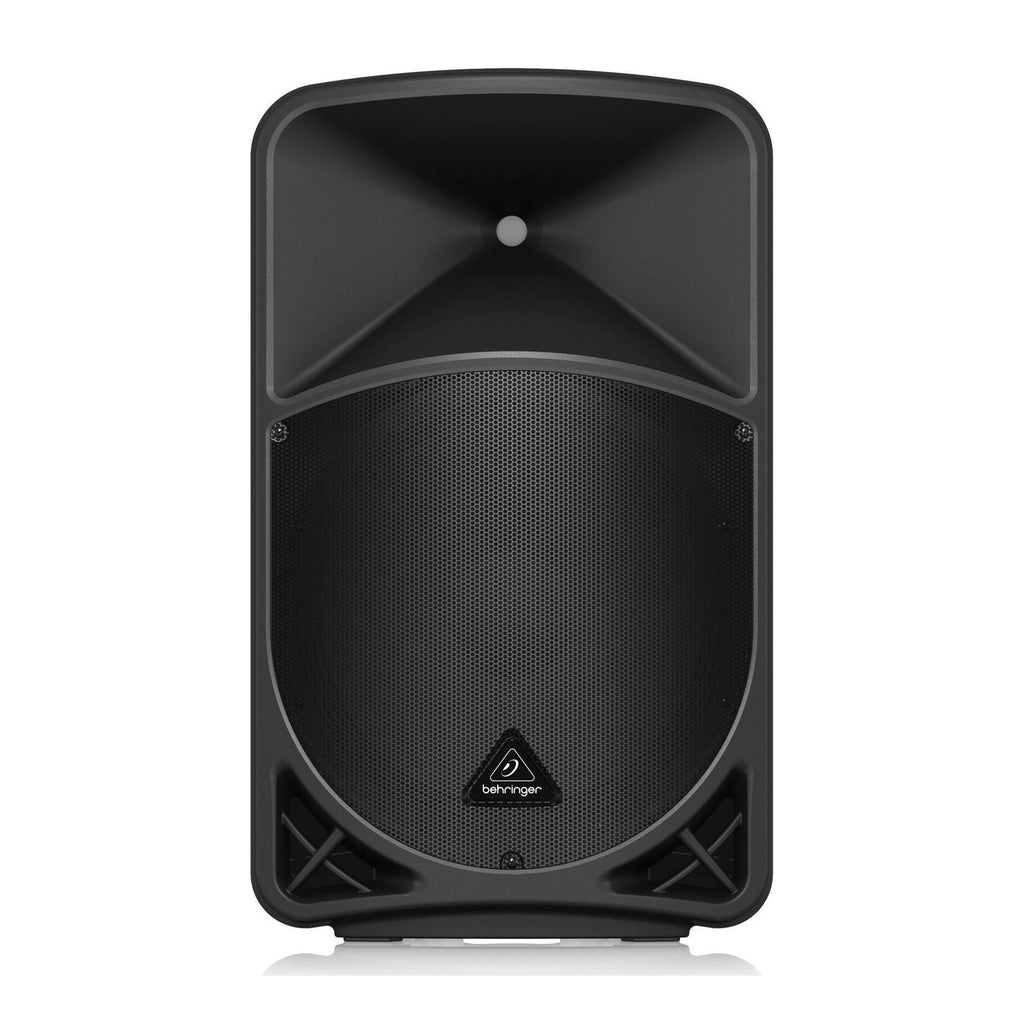

Behringer B15X Eurolive Speaker

Our engineers have created a powered loudspeaker that merges 1000-Watt Class-D power amp technology, a 3-channel digital mixer with gain setting recall that is “wireless ready” for our ULM Series digital microphones (available separately), integrated DSP – and exceptional portability.

Then we loaded the B15X with our best 12" long-excursion driver for incredibly deep bass, and a state-of-the-art 1'' phenolic-diaphragm compression driver for exceptional high-frequency reproduction.

Built-in Bluetooth connectivity allows you to stream music from your smart-phone, tablet or other Bluetooth-equipped device – and you can even control the system via our free iOS*/ Android* mobile apps.

The B15X professional active loudspeaker is destined to become a legend in its own right, alongside the other EUROLIVE models that have made BEHRINGER the world leader in active loudspeakers.

Features

• High-power 1000-Watt 2-way PA sound reinforcement speaker system for live and playback applications
• Remote control 3-channel digital mixer with gain setting recall
• "Wireless-ready" for high-quality Behringer digital wireless system (not included)
• Comprehensive remote control via iOS*/ Android* mobile app available free of charge
• High quality Bluetooth* stereo audio streaming
• DSP presets for application type and speaker positioning
• Klark Teknik Digital Signal Processing for total system control
• Revolutionary Class-D amplifier technology: enormous power, incredible sonic performance and super-light weight
• Extremely powerful 15'' long-excursion driver provides incredibly deep bass and acoustic power
• State-of-the-art 1.35'' aluminum-diaphragm compression driver for exceptional high-frequency reproduction
• Intuitive single rotary control user interface with LCD display for ease of navigation
• Ultra-wide dispersion, large-format exponential horn
• Versatile trapezoidal enclosure design allows different positioning:

  • Stand mounting with 35-mm pole socket
  • Tilts on its side for use as a floor monitor
• Ergonomically shaped handles for easy carrying and setup
• 3-Year Warranty Program*
• Designed and engineered in Germany

Specifications

Amplifier

• Maximum output power: 1000 W*
• Type: Class-D
• Protection: Short circuit, open circuit, thermal

Controls

• Hardware: Rotary push-encoder
• Software: Apple iOS / Android interface via Bluetooth

Loudspeaker / System Data

• Woofer: 385 mm (1 x 15") LF driver
• Tweeter: 25.4 mm (1 x 1") HF compression driver
• Frequency response: 50 Hz – 20 kHz (±3 dB); 45 Hz – 20 kHz (-10 dB)
• Nominal dispersion: 85 °H X 60° V @ -6 dB
• Maximum SPL: 127 dB
• Crossover: 2-way, active
• Limiter: Independent HF, LF

Audio Connections

• Input A / B: 2 x XLR / ¼" TRS combo jacks (servo-balanced)
• Impedance: 33 kO, balanced / 16 kO, unbalanced
• Sensitivity: 4 dBu, nominal
• Max. input level: +22 dBu
• Output: 1 x XLR
• Impedance: 440 O balanced, 220 O balanced
• Max. output level: +22 dBu

Digital Signal Processor (DSP)

• Display: LCD 128 x 32, amber backlit
• Factory EQ presets: Positioning, sound mode, phase
• Equalization:

  • Bass ±10 dB @ 80 Hz, shelving
  • Middle ±10 dB @ 2.5 kHz, parametric, Q = 0.5
  • QTreble ±10 dB @ 12 kHz, shelving
• Crossover: High pass, L-R 24 db/Oct.
• Protection: Lockout function for all settings

Wireless System

• USB dongle: USB socket accepts signals from 2 independent; BEHRINGER ULM mics
  Signal indicator LED: 2 (green)

Bluetooth / MP3**

• Frequency range: 2402 MHz ~ 2480 MHz
• Channel number: 79
• Version: Bluetooth spec 4.0 compliant
• Compatibility: Supports GATT, A2DP 1.2 profiles
• Max. communication range: 30 m (without interference)
• Connectivity: Master-slave stereo pairing link

Power Supply / Voltage (Fuses)

• Power consumption: @ 1/8 max power 80 W
• Mains connection: Standard IEC receptacle

Dimension / Weight

• Dimensions: (H x W x D): 712.5 x 426.7 x 312.9 mm (28.1 x 16.8 x 12.3")
• Weight: 18.2 kg (40.0 lbs)
