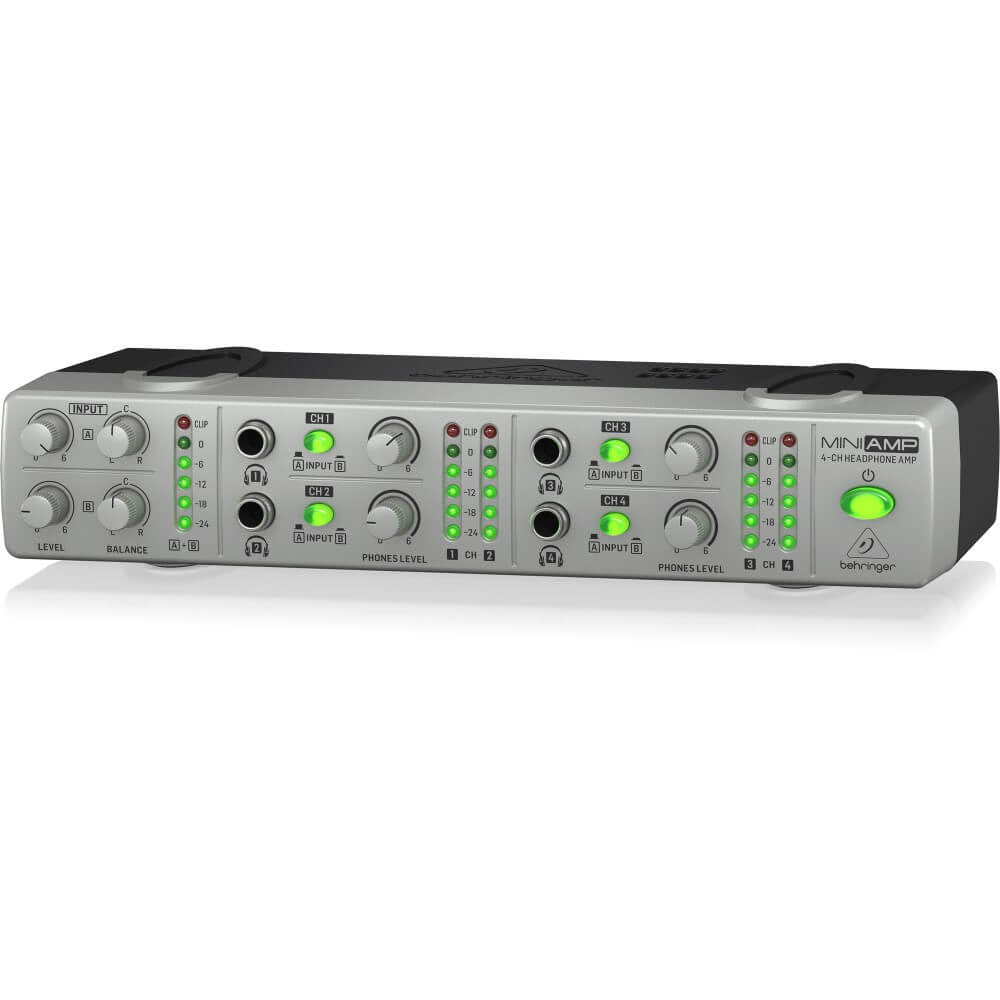

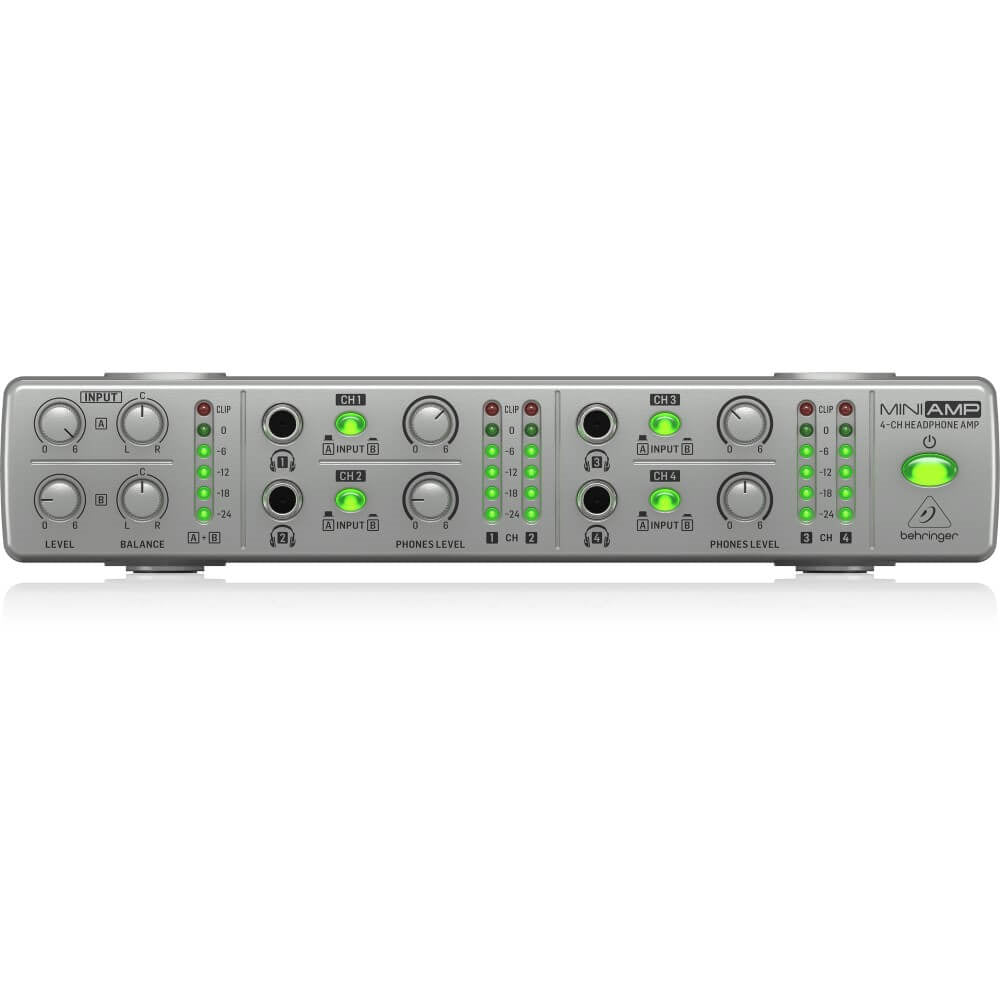

Behringer AMP800 V2 Ultra-Compact 4-Channel Stereo Headphone Amplifier

When you're recording more than one musician at a time, or if each member of a group needs to listen to playback, you need a monitoring distribution system. Enter the Behringer AMP800, the compact, versatile headphone amplifier is capable of delivering 2 separate stereo mixes while powering up to eight pairs of headphones.

• Ultra-compact headphone amplifier system for studio and stage applications
• 4 independent stereo high-power amplifier sections
• Highest audio quality with virtually all types of headphones even at maximum volume
• Phones Level control plus accurate 6-segment LED output meter per channel for easy level monitoring
• 2 balanced stereo main inputs with independent Level and Balance controls for individual mixes, selectable for all 4 headphone amplifiers
• Accurate 6-segment LED main level meter for precise level indication of both line inputs
• 2 headphone outputs per channel (front and rear panel) allow a total of 8 headphones to be simultaneously connected
• Parallel Link Output allows cascading of several headphone amplifiers
• High-quality potentiometers and illuminated switches for long-term reliability

Altogether Now

With four completely independent high-powered stereo amplifier sections, each with dual outputs, the AMP800 allows you to use the Phones Level control, as well as the 6-digit LED output meter for streamlined level monitoring per channel. Featuring 2 balanced Stereo Main Inputs with independent Level and Balance controls for dedicated mixes, selectable for each of the four headphone amplifiers.

Link Up

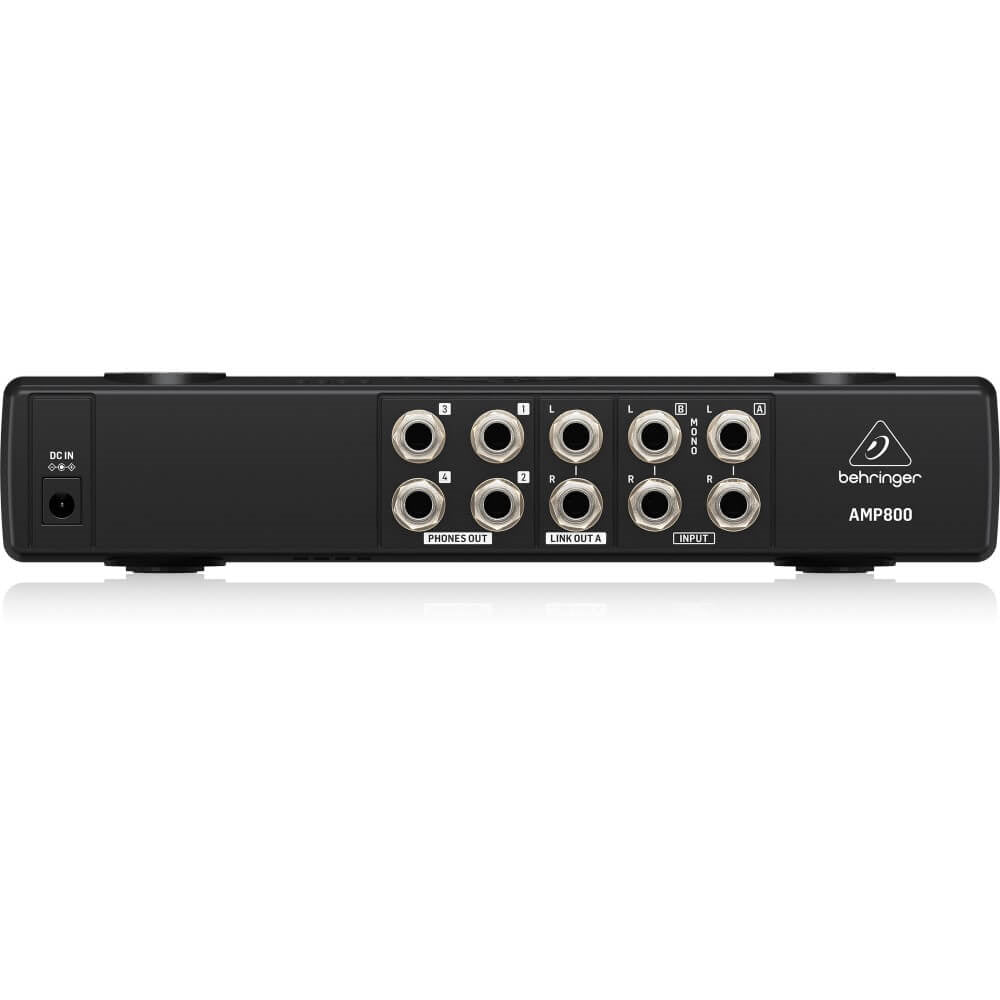

The inclusion of a convenient Link Out A connector allows you to cascade additional AMP800s for when you need to accommodate more than eight listeners. Thanks to high-quality components and backlit switches, the AMP800 guarantees long-term reliability, and the ultra low-noise operational amplifiers deliver impeccable sonic performance.

Great Sound, Great Value

When a recording session calls for everyone's heads and ears to be in the game, the AMP800 is the perfect solution – and a real money-saver! Let your ears guide you by checking out the amazing AMP800 at a Behringer dealer near you or order yours online today!

• Input
  • Connector: ¼" TRS Connector, Balanced
  • Impedance: approx. 20 kΩ, Balanced/Approx. 10 kΩ, Unbalanced
  • CMMR: 40dB typ. @1kHz
• Phones Out
  • Connector: ¼" TRS Connector, Stereo
  • Impedance: min. 100Ω
  • Max. Output Level: +13dBu @ 100Ω Load
• Link Out A
  • Connector: ¼" TRS Connector, Balanced
• System Specifications
  • Frequency Response: 10Hz to 120kHz, -3dB
  • Dynamic Range: 108dB, 10Hz to 22kHz (100Ω Load)
  • Distortion: 0.007% typ. (100Ω Load)
  • Crosstalk: >80dB @1kHz
  • Signal-to-Noise Ratio: 10Hz to 22kHz >95dB @0dBu, A-Weighted
• Amplifier
  • Max. Output Level: +21dBm/124mW (100Ω Load)
  • Min. Output Impedance: 47Ω
• Power Supply
  • Mains Connection: External Power Supply, 12V DC/1A
  • Mains Voltage: 240V, 50Hz
  • Power Consumption: 12W
• Dimensions
  • approx. 48mm (H) x 242.6mm (W) x 120mm (D)
  • approx. 0.77kg
