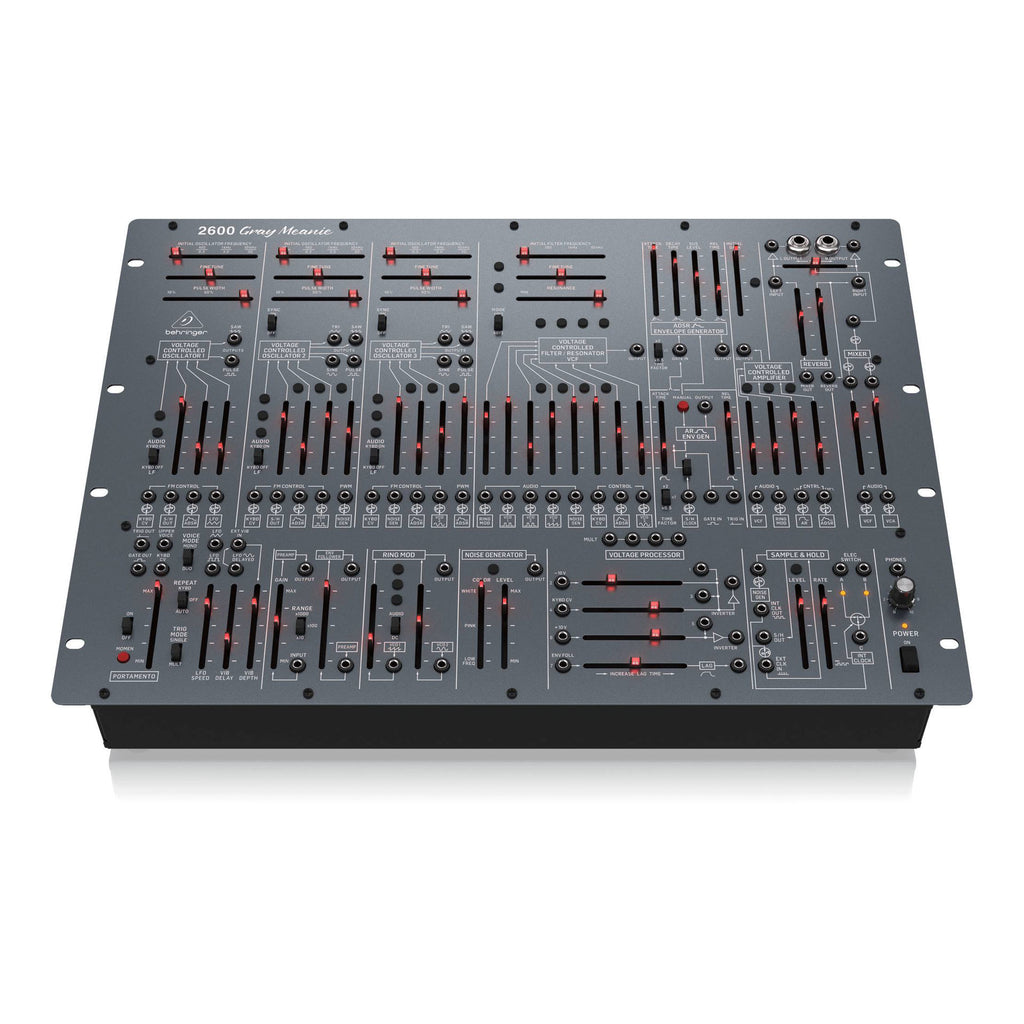

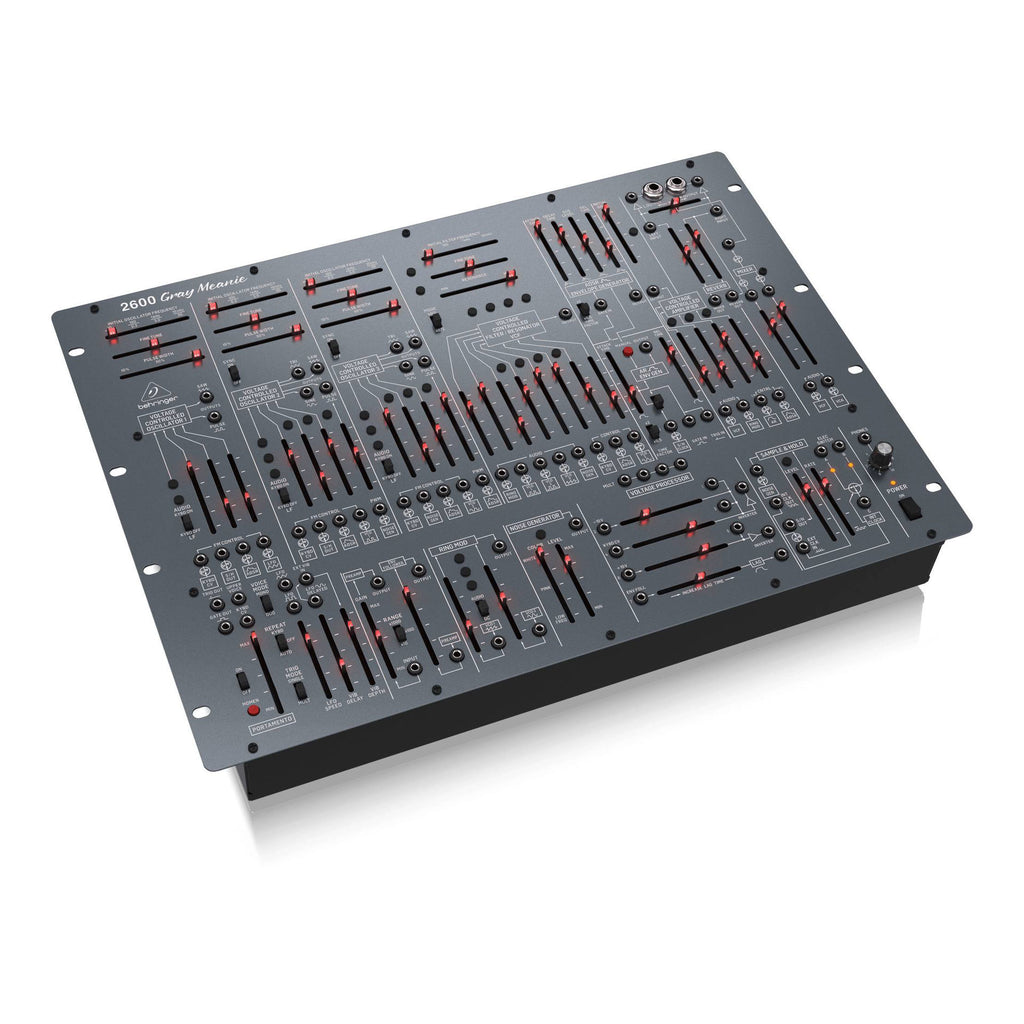

Behringer 2600 Gray Meanie Analog Synthesizer 8RU

Features

• Amazing analog synthesizer with triple VCO design allows for insanely fat music creation
• Authentic reproduction of ultra-rare ARP* Grey Meanie circuitry from the ‘70s with specially selected opamps and transistors
• Semi-modular architecture requires no patching for immediate performance
• 3 VCOs, each with LFO mode, FM inputs and multiple wave-shape outputs for an awe-inspiring palette of tonal possibilities
• Multi-mode VCF with dedicated low-pass output and additional switched high/notch output
• Incredible range of modules including ring modulator, lag processor, sample & hold, Schmitt trigger, and envelope follower
• ADSR and AR envelope generators with switchable time factor
• Fitted with a mechanical spring reverb for inspiring sound effects
• Noise Generator with continuously variable color
• 2 dedicated LFOs with pulse and sine wave outputs
• Switched Post Filter Distortion (PFD) / Inverter option on voltage processor
• Differential (+/-) input VCA with both linear and exponential control inputs
• Additional functions include attenuator, mixer, inverter, slew rate limiter and 4-way multiple for creative patching flexibility
• External audio input for processing of external sound sources
• 78 controls give you hands-on direct and real time access to all parameters
• 93 patchable inputs/outputs for the ultimate in configuration flexibility
• Comprehensive MIDI implementation with MIDI channel and Voice Priority selection

Specifications

Inputs

Inputs VCO 1 / 2 / 3

• Frequency modulation (FM) control : 11 x 3.5 mm TS jacks, CV range: -10 V to +10 V
• Pulse width modulation (PWM): 2 x 3.5 mm TS jack, CV range: -5 V to +5 V, 1 V/10%

VCF

• Audio: 5 x 3.5 mm TS jacks, 50 kO unbalanced
• Control: 3 x 3.5 mm TS jacks, CV range: -10 V to +10 V

ADSR / AR envelope generator

• S&H clock: 1 x 3.5 mm TS jack, threshold: > 6 V
• Gate in: 1 x 3.5 mm TS jack, threshold: +4 V
• Trig in: 1 x 3.5 mm TS jack, threshold: +5 V

VCA

• Audio: 2 x 3.5 mm TS jacks, 50 kO unbalanced
• Control (linear): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V
• Control (exponential): 1 x 3.5 mm TS jack, CV range: -10 V to +10 V

Mixer / reverb

• Audio: 2 x 3.5 mm TS jacks, 50 kO unbalanced
• Left / right inputs: 2 x 3.5 mm TS jacks, 50 kO unbalanced

Outputs

VCO 1 / 2 / 3

• Outputs (saw): 3 x 3.5 mm TS jacks, 1 kO unbalanced
• Outputs (pulse): 3 x 3.5 mm TS jacks, 800 O unbalanced
• Outputs (tri): 2 x 3.5 mm TS jacks, 1 kO unbalanced (VCO 2 / 3 only)
• Outputs (sine): 2 x 3.5 mm TS jacks, 1 kO unbalanced (VCO 2 / 3 only)

VCF

• Outputs: 1 x 3.5 mm TS jack, 1 kO unbalanced

ADSR / AR Envelope Generator

• Output: 2 x 3.5 mm TS jacks, CV range: 0 V to +10 V

VCA

• Output: 1 x 3.5 mm TS jack, 1 kO unbalanced

Mixer / reverb

• Post-attenuator outputs: 2 x 3.5 mm TS jacks, 1 kO unbalanced
• Post-mixer output: 1 x 3.5 mm TS jack, 1 kO unbalanced
• L / R outputs: 2 x 1/4" TS, 500 O unbalanced | 2 x 3.5 mm TS jacks, 500 O unbalanced

Physical

• Standard operating temperature range: 5° C to 40° C (41° F to 104° F)
• Dimensions: 482 x 356 x 108 mm (19 x 14 x 4.3")
• Rack units: 95 HP
• Weight: 5.1 kg (11.22 lbs)
