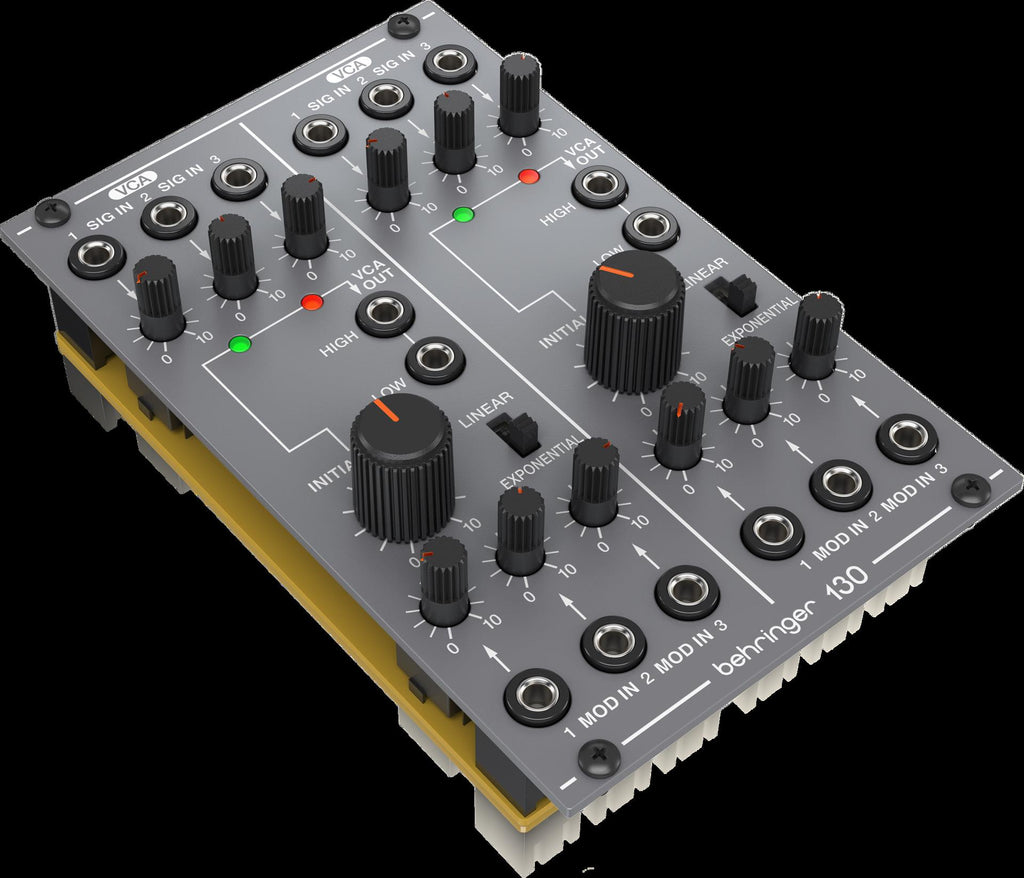

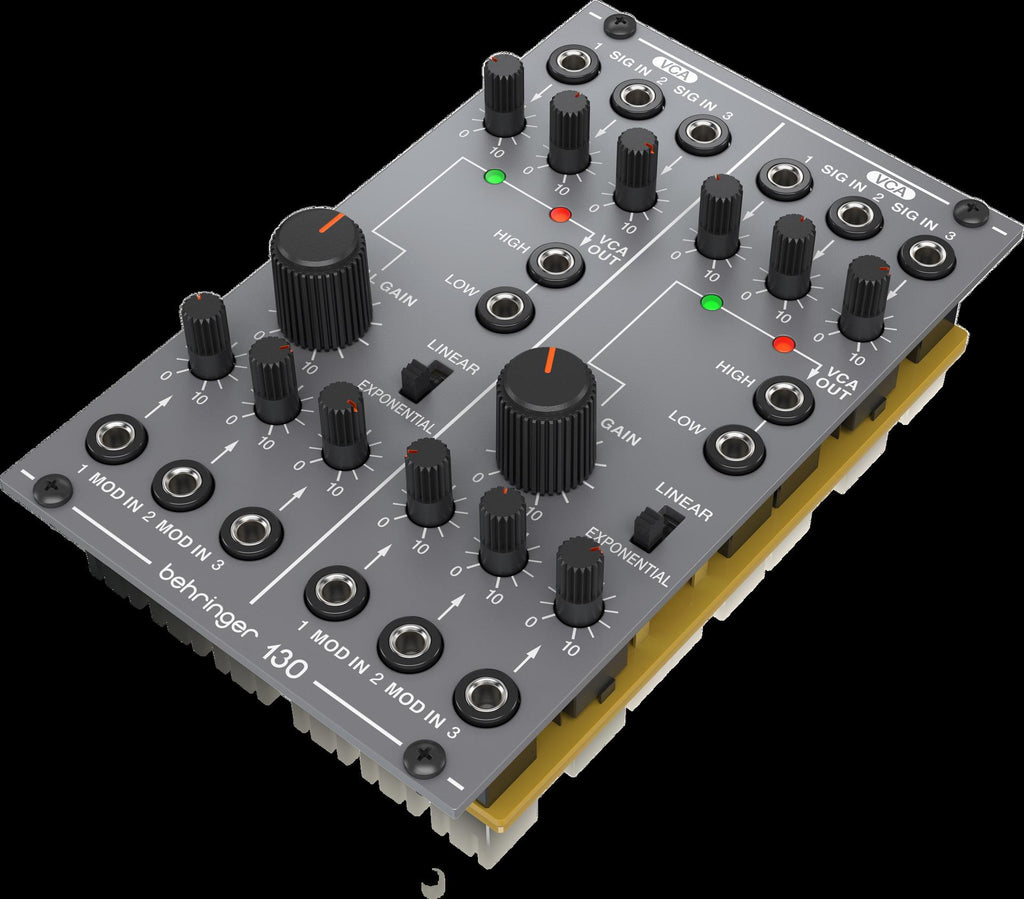

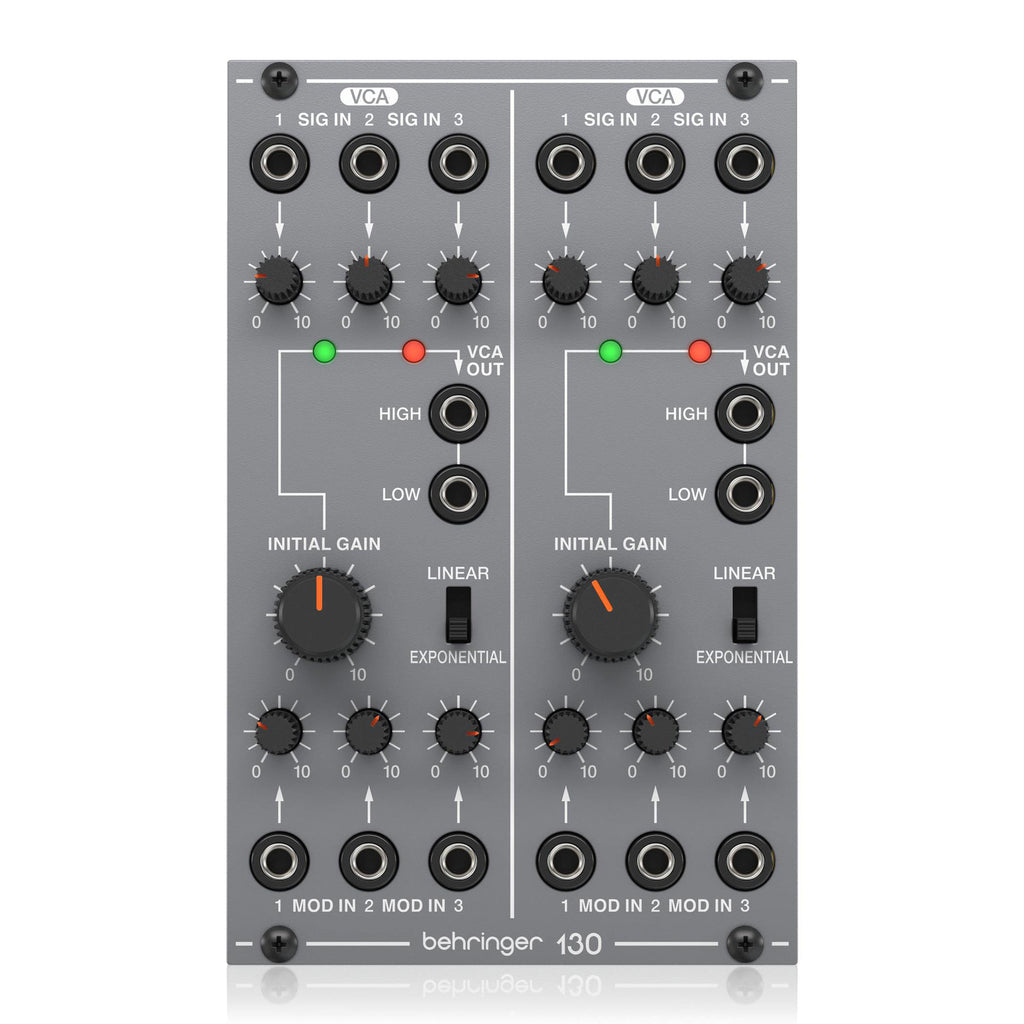

Behringer 130 Analogue DUAL VCA Eurorack Module

Features

• Amazing Dual VCA module from the 80’s
• Authentic reproduction of original “System 100M*“ circuitry
• Each VCA features manual gain control and 2 audio outputs (low/high) with signal & clip indicators
• Linear/Exponential switch per VCA allows for increased flexibility
• 3-channel mixer per VCA allows independent mixing of all input signals
• 16 controls and switches give you real-time access to all important parameters
• Eurorack specs: 16 HP, 30 mA +12 V, 20 mA -12 V
• 3-Year Warranty Program*
• Designed and engineered in the U.K.

Specifications

Signal Connections

• Signal: in 6 x 3.5 mm jack, summed
  • Impedance > 50 kO unbalanced
  • Maximum input level +18 dBu @ unity gain
• VCA out high / low 4 x 3.5 mm jack
  • High output Impedance: 1 kO unbalanced
  • Low output Impedance: 3 kO unbalanced
  • High maximum output level: +18 dBu
  • Low maximum output level: -2 dBu
  • High output noise: < -66 dBu, 22 Hz - 22 kHz
  • Low output noise: < -86 dBu, 22 Hz - 22 kHz
• Mod in 6 x 3.5 mm jack
  • Impedance: > 50 kO unbalanced
  • CV input range: 0 V to +10 V
  • CV scaling in EXP mode: Typically 1 V/10 dB

Controls

• Initial gain: 2 x rotary knob Linear / exponential, switchable
• Sig in level: 6 x rotary knob
• Mod in level: 6 x rotary knob
• Linear / exponential CV: 2 x sliding switch

Power

• Power supply: Eurorack
• Current draw: 30 mA (+12 V), 20 mA (-12 V)

Physical

• Dimensions (H x W x D): 44 x 81 x 129 mm (1.7 x 3.2 x 5.1")
• Rack units: 16 HP
• Weight: 0.18 kg (0.4 lbs)
