Engineered and built in Austria, the high sensitivity and low self-noise means OC18 can handle anything from a whisper, to extreme SPLs without distortion, making it a perfect tool for studio, live and broadcast situations. The unique ceramic capsule design is so consistent, the OC18 can be match-paired with any other OC18 or with any OC818 set in cardioid mode.
KEY FEATURES
-
The same handcrafted design as the OC818 - Classic cardioid
-
Handcrafted CKR6 ceramic capsule - like the CKR12 capsule, but with single diaphragm
-
Every Austrian Audio OC18 and OC818 is within 1dB of each other - Making any two microphones a stereo pair.
The heart of the OC18, the CKR6 Ceramic Capsule - Making Passion Heard
Nobody brings more than Austrian Audio's engineering team. Every CKR6 ceramic capsule is handmade in-house at our facility in Vienna and now we are developing the next generation of transducer and microphone builders to serve our expanding customer-base.

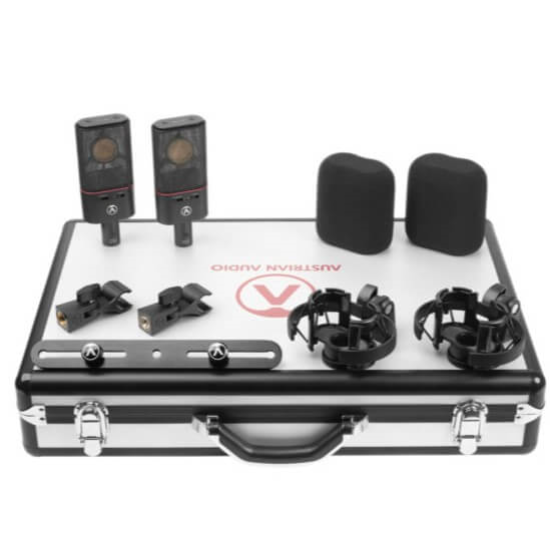

The OC18 Dual Set Plus, a kit with two of the critically-acclaimed OC18 large capsule condenser microphones as well as a host of accessories:
- 2x OC18 large diaphragm condenser microphones with cardioid polar pattern
- 2x OCS8 microphone shock mounts
- 2x OCW8 foam windscreens
- 2x OCH8 mic clips
- 1x SB1 stereo bar
- all in a protective carrying case
Technical Specifications:
-
Directional Characteristics: Single
-
Polar Pattern: Cardioid
-
Frequency Range: 20hZ - 20kHz
-
Sensitivity: 13mV/Pa
-
Equivalent Noise Level: 9 dB (A)
-
Impedance: 275 Ω (symmetrical)
-
Load Impedance: > 1 kΩ
-
Supply Voltage: 48 V (< 2.2mA)
-
Main Connector: XLR 3 pin
-
Max. SPL: 148 dB SPL (158 dB SPL)
-
Switchable Pad: -10 dB, -20 dB
-
Analog Low Cut Filter: 40 Hz (2nd order), 80 Hz (2nd order), 160 Hz (1st order down to 80Hz, 2nd order below)
