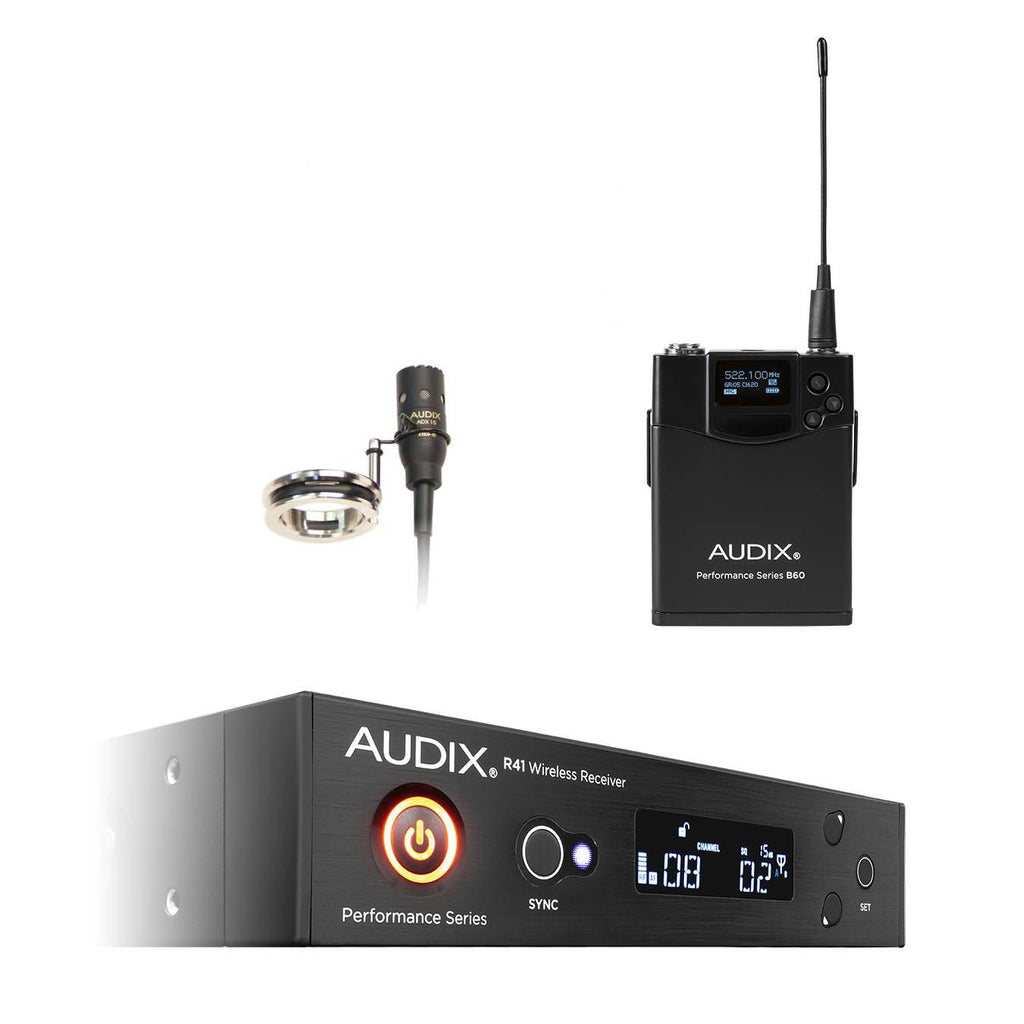

Audix AP41 Flute Wireless Microphone System R41 Diversity Receiver B60 Bodypack with ADX10FLP

The ADX10FL reproduces the natural tone and percussive nature of the flute with detail and accuracy. The tight pickup pattern of the mic helps to isolate the flute from the rest of the instruments on stage.

Specifically designed for use with a standard-sized flute, the ADX10FL includes an integrated clip that attaches to the headstock of the flute.

Features

R41 Diversity Receiver

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy, and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam

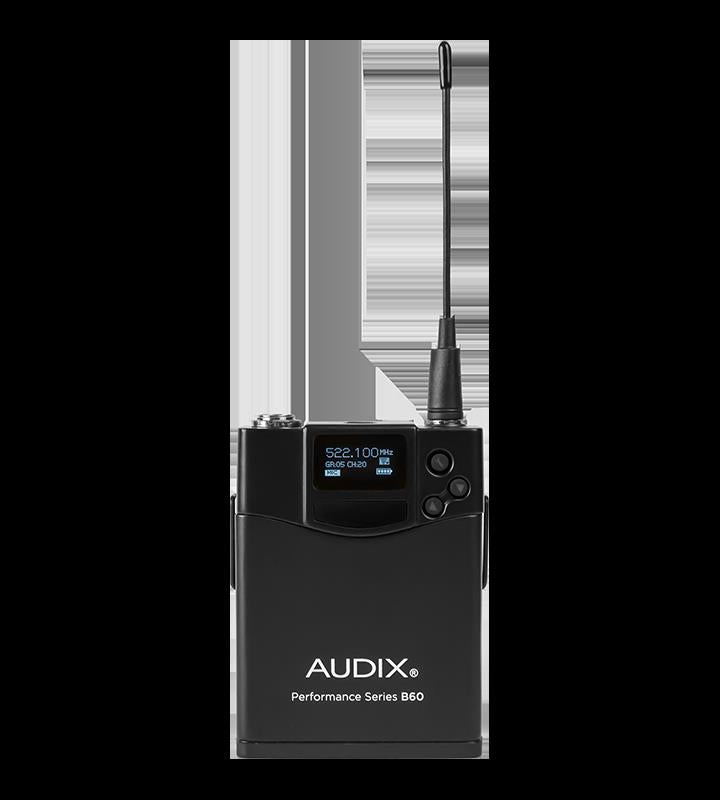

B60 ADX10FLP Bodypack Transmitter

• 64 MHz Wide spectrum transmitter with ADX10FLP condenser microphone and mount
• Durable metal housing
• 14 Hour run time – AA batteries

Specifications

• Frequency Range: 522 MHz – 554 MHz / 554 MHz - 586 MHz
• Bandwidth : 32 MHz
• Compatible Systems: 16 Compatible system operation
• Switchable Frequencies : 106 Preset frequencies
• Manual Mode: n/a
• Frequency Response : 45 Hz – 18 kHz
• Compander System : 0.0840277777777778
• Pilot Tone : 32 kHz
• Receiving System: Single tuner, diversity
• Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion : .7% (33 kHz deviation at 1 kHz)
• Sensitivity : 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (AF=0): Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
• Output Connectors: 1/4", XLR
• Audio Level Adjust: Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps)
• Range: 300', (91 M)
• Power Supply: 100 - 240V / 50 - 60 Hz, 12V DC, 1A
• Dimensions: 205 mm (W) x 206 mm (D) x 44 mm (H) 406 mm (W) x 209 mm (D) x 44 mm (H) (R42
• Net Weight: 1.92 lbs. / 870 g 4.4 lbs. / 2.0 kg (R42)

What's in the box

• 1x R41 32 MHz Diversity Receiver
• 1x B60 Bodypack Transmitter with ADX10FLP Condenser Microphone and Mount
• 2x Antennas
• 1x Audio Cable
• 1x WS10 Windscreen
• 2x AA Batteries
• 1x Carrying Case
• 1x Power Supply
• 1x User Guide
• 1x Rackmount Hardware
