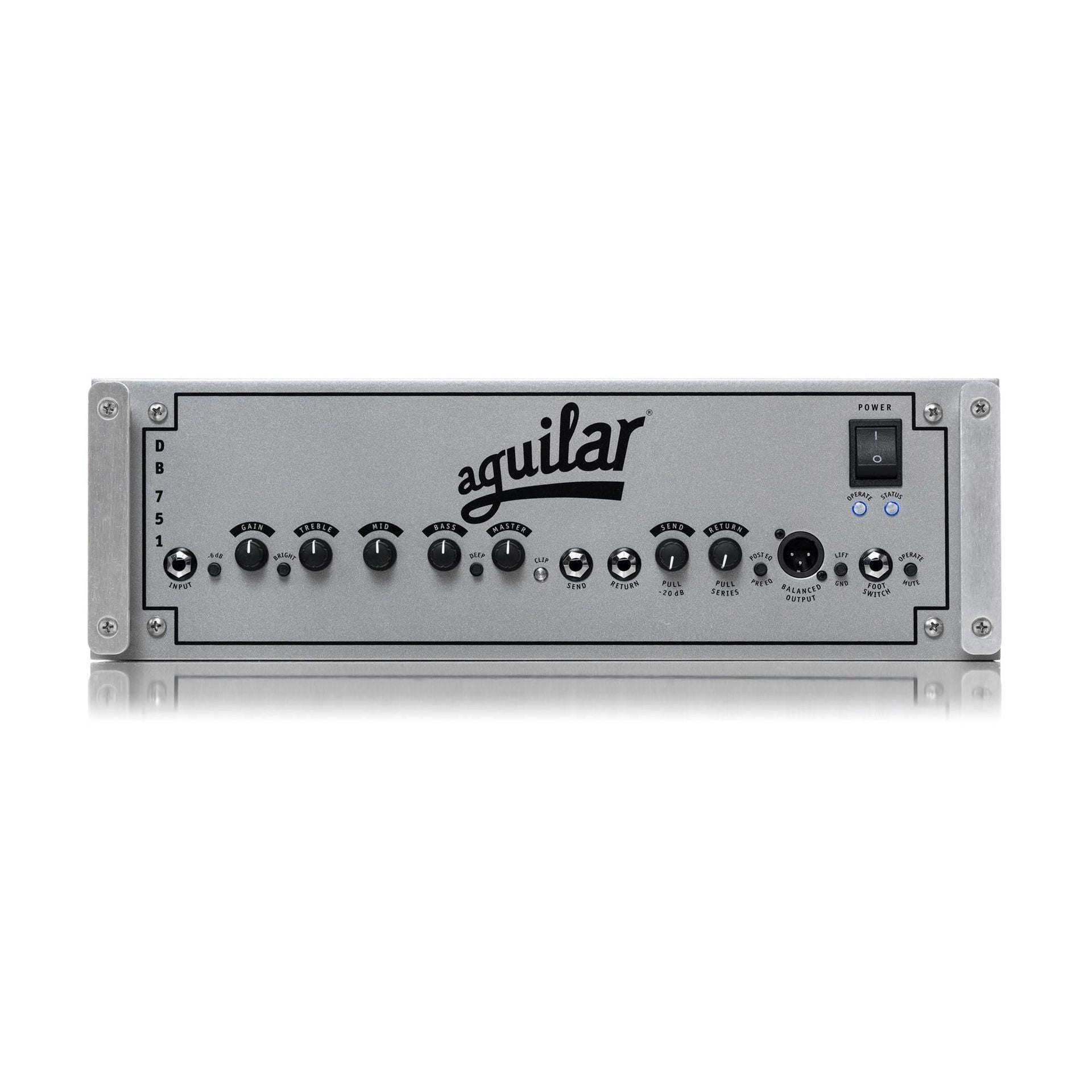

Aguilar DB 751 Bass Head Amplifier

A perfect combination of raw power and excellent tone, the DB® 751 continues the legacy set by the world famous DB® 750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.

Specifications

• Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)
• Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms
• Preamp Section: Three 12AX7’s
• Power Section: 12 complimentary lateral MOSFETs
• Transformer: Custom Aguilar toroidal power transformer
• EQ Section: passive tone stack with active midrange element
• Bass: +12 / -12 @ 40Hz
• Midrange: +12 / -12 @ 750Hz
• Treble: +12 / -7 @ 4kHz
• Deep Switch: Adds 5 dB of broadband boost at 30 Hz
• Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz
• Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation
• Inputs: One 1/4″ input jack with an active/passive switch

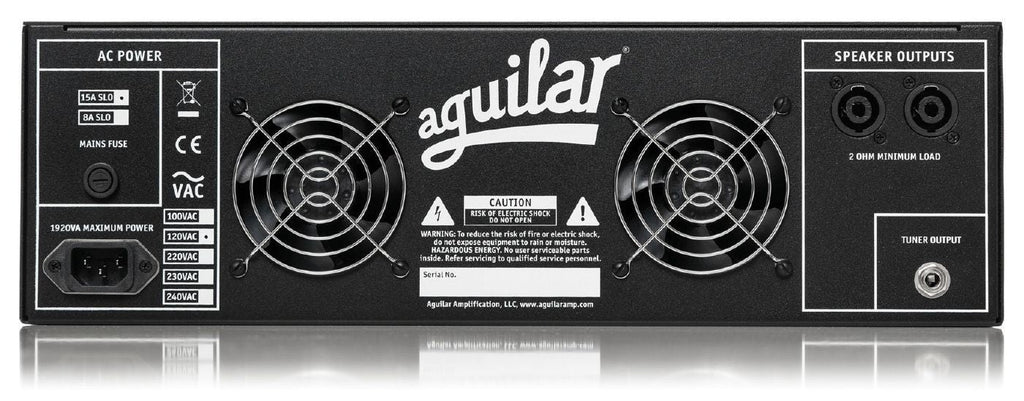

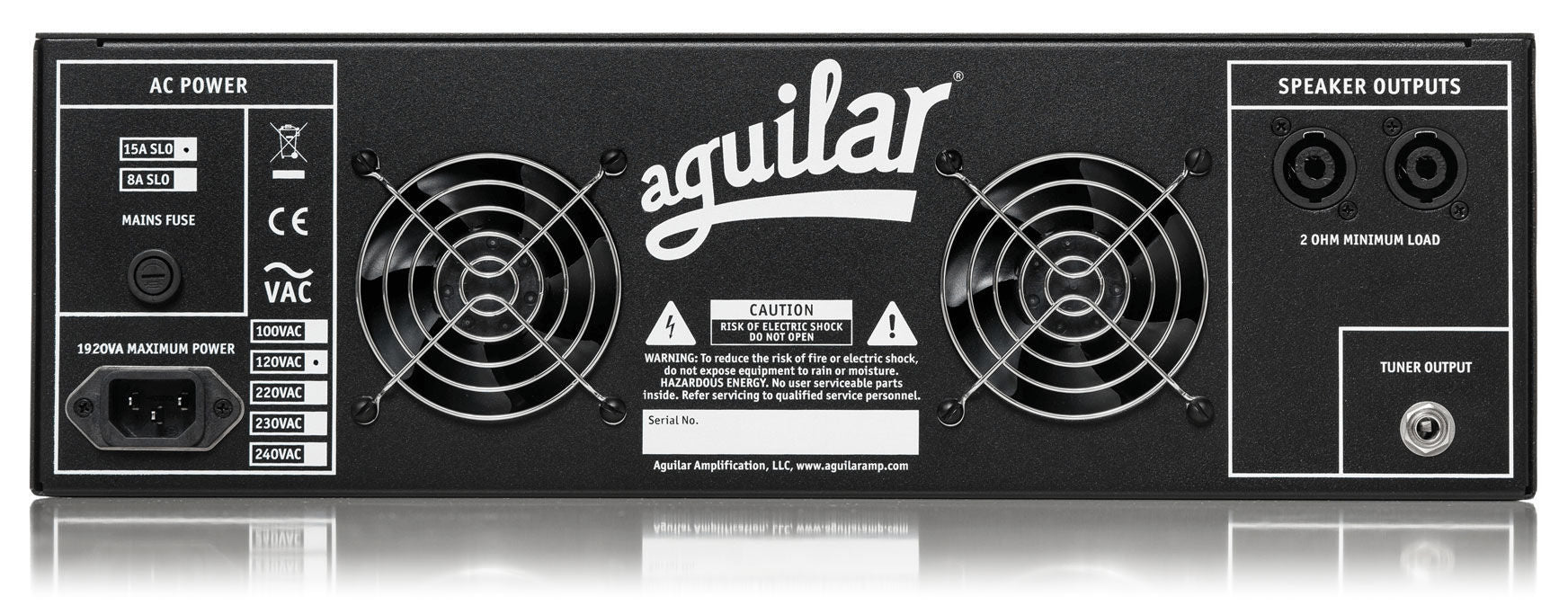

• Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.
• Cooling: Two high-quality whisper fans with thermal speed control
• Dimensions: 17″ W x 14″ D x 5.25″ H
• Rack Size: Three Spaces, Includes detachable rack ears
• Weight: 42 lbs
• Warranty: Ten Year Limited
• Includes: Rack Ears
• Optional: Head Cases in DB Colors
