He’s known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder’s tone ablaze.

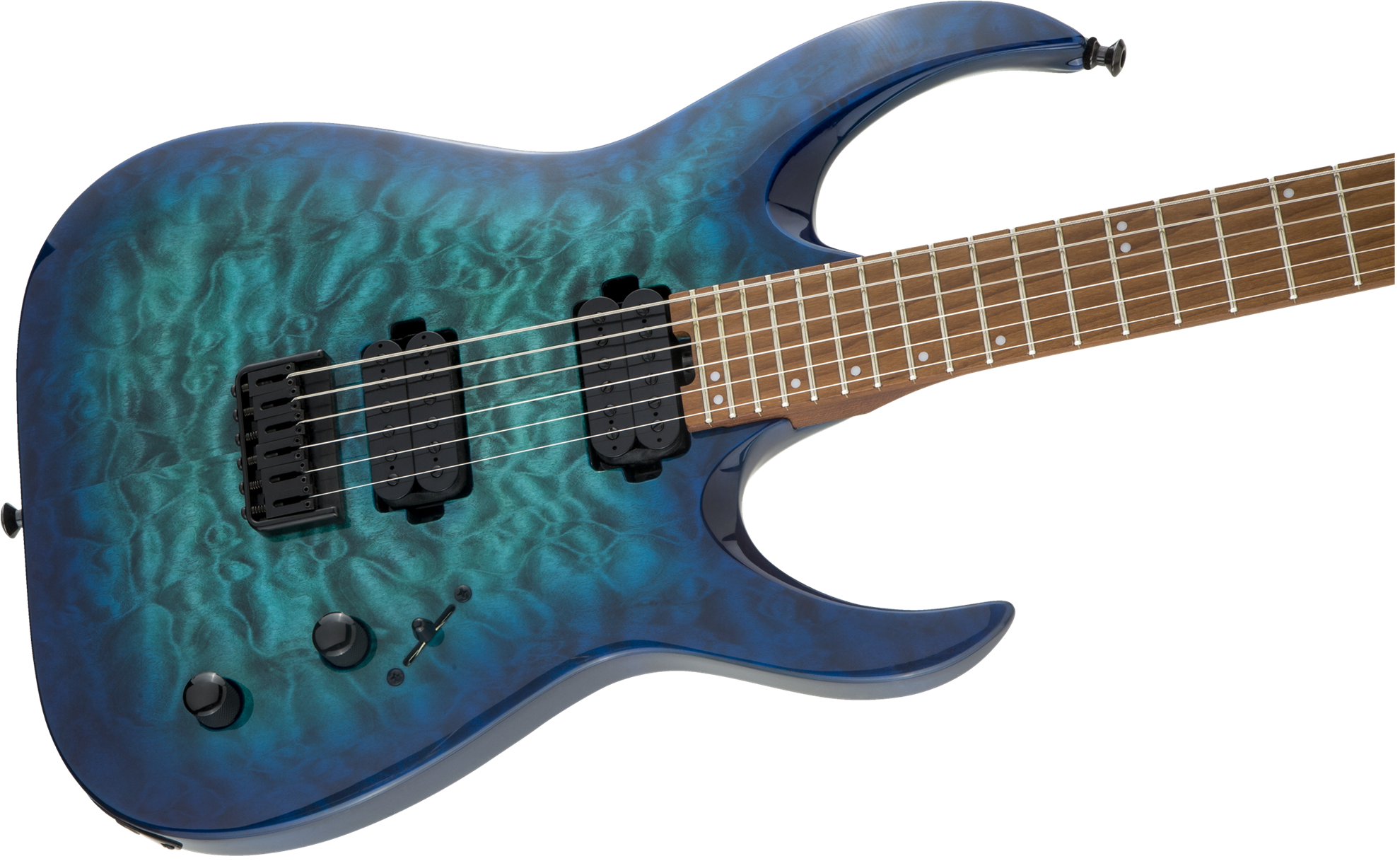

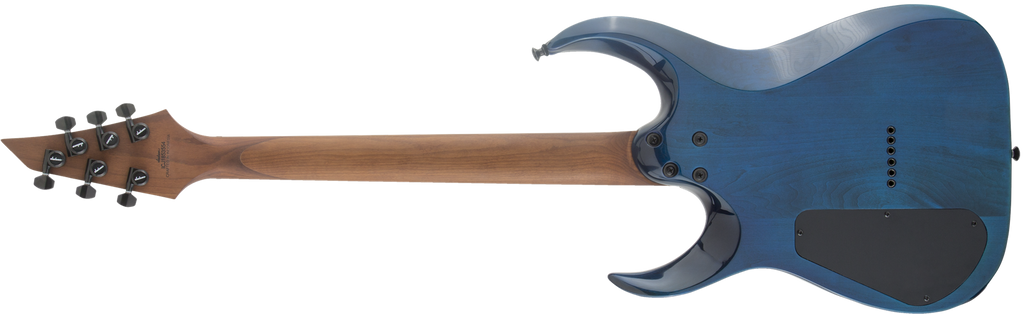

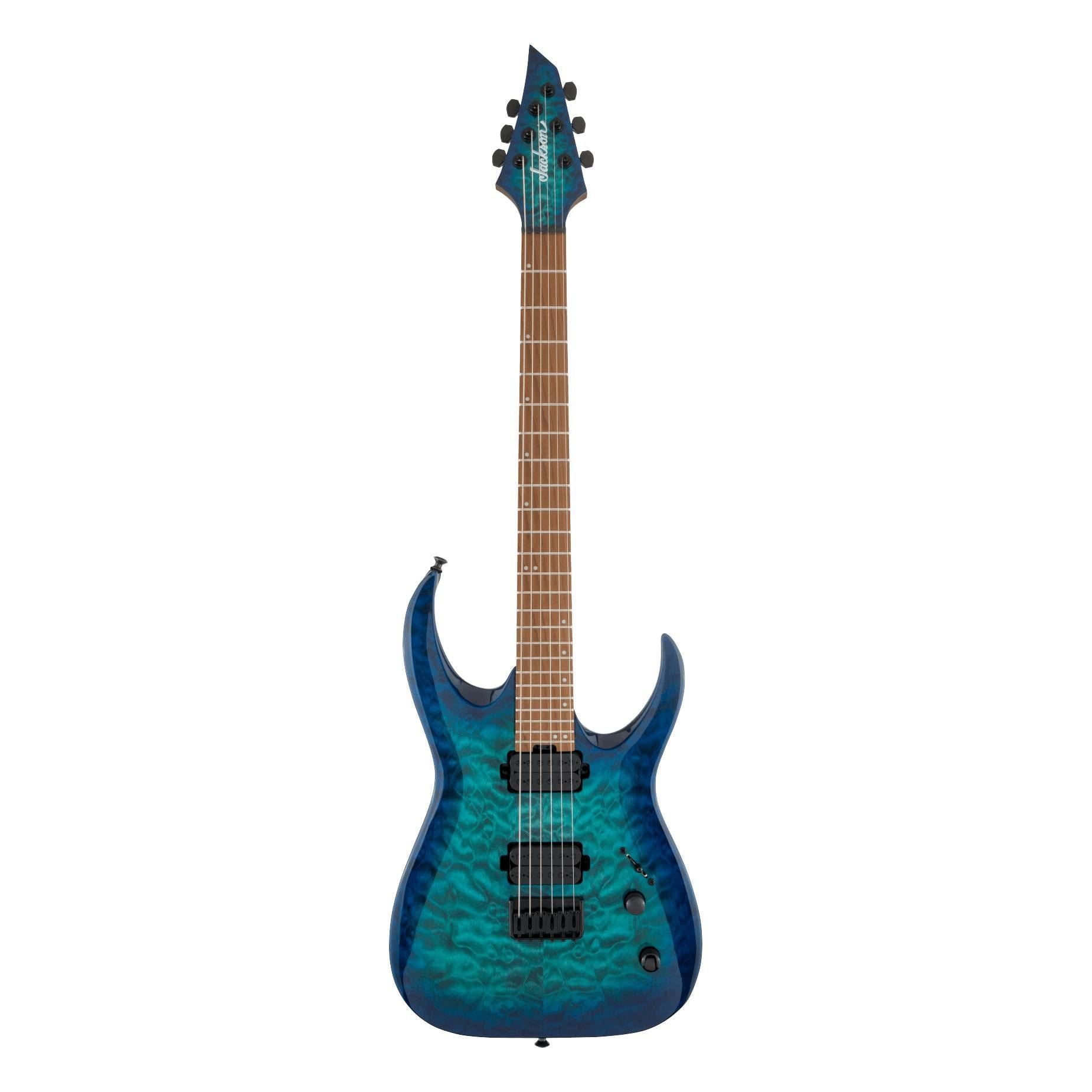

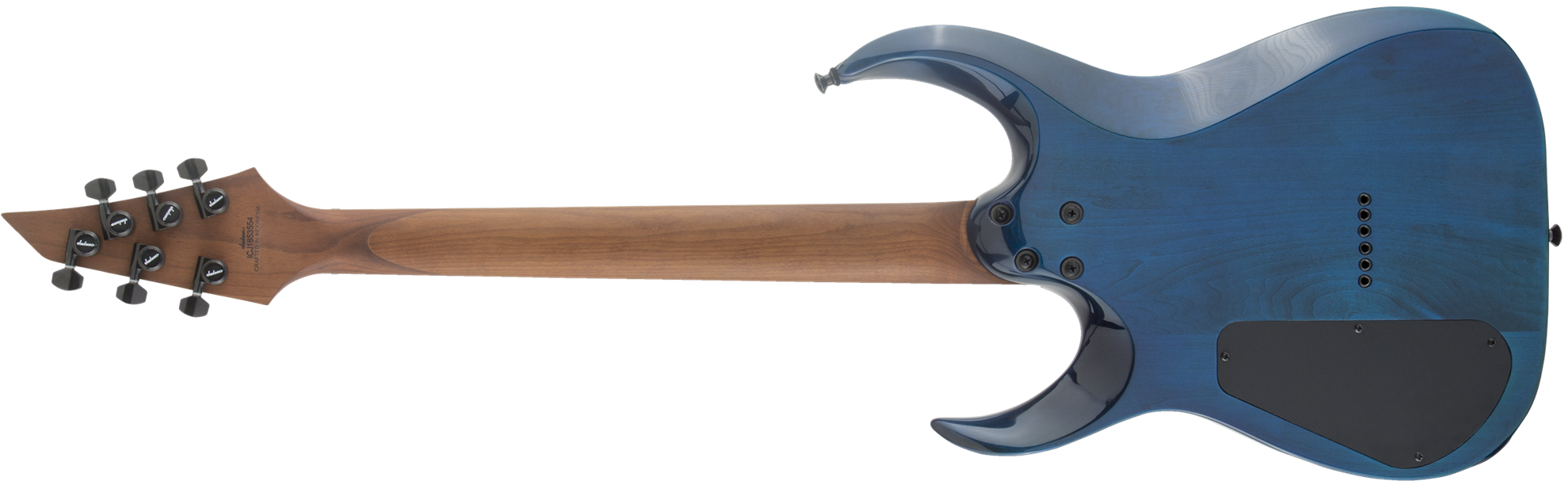

The Pro Series Signature Misha Mansoor Juggernaut HT6QM features a basswood body with an elegant quilt maple top and a bolt-on caramelized maple neck with graphite reinforcement, wrap-around heel and oiled back finish for greater playing comfort.
Enjoy blazing fast leads with a 20” flat radius caramelized maple fingerboard featuring rolled edges, 24 jumbo frets and offset dot inlays. Luminous side dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.

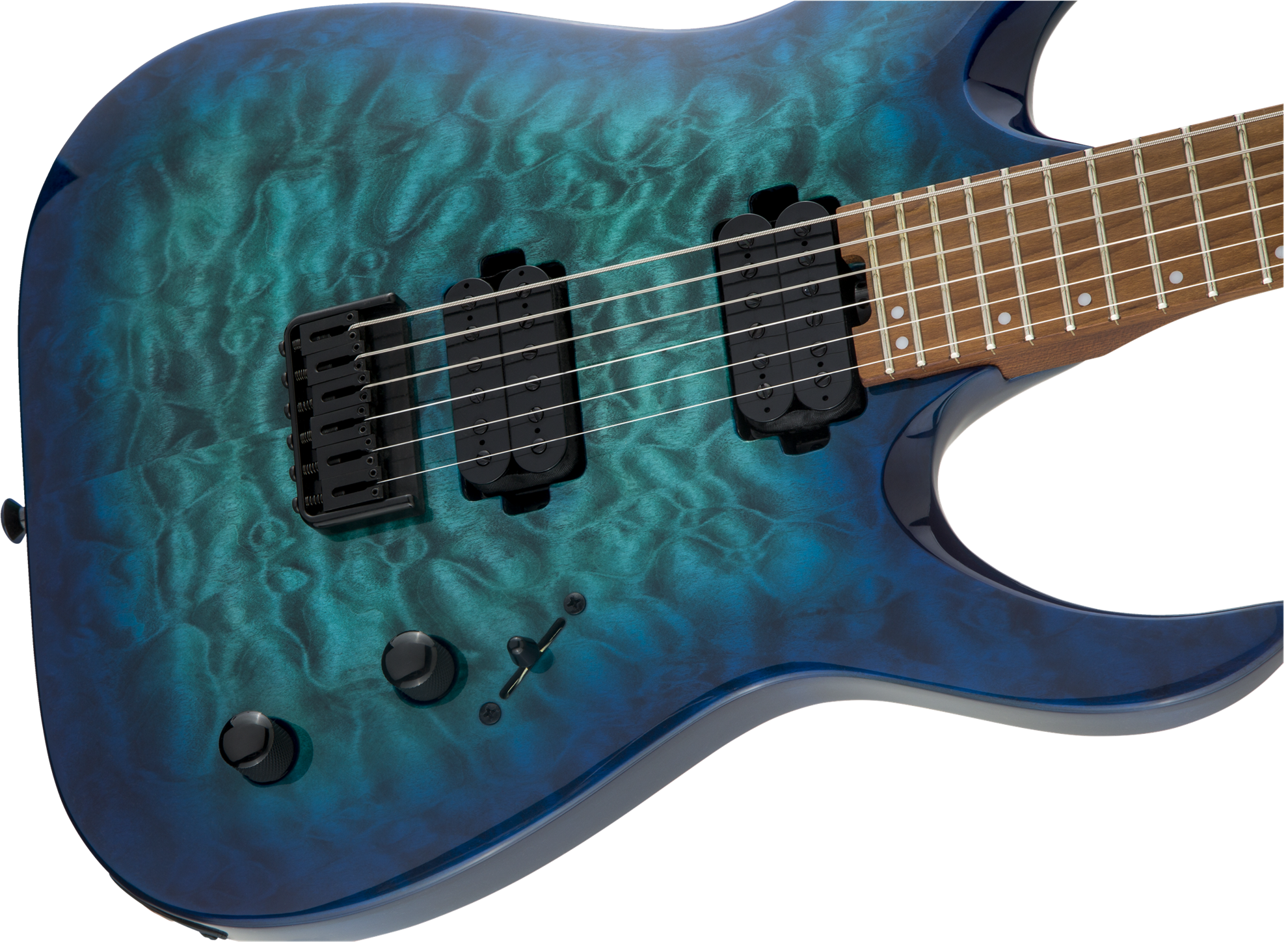

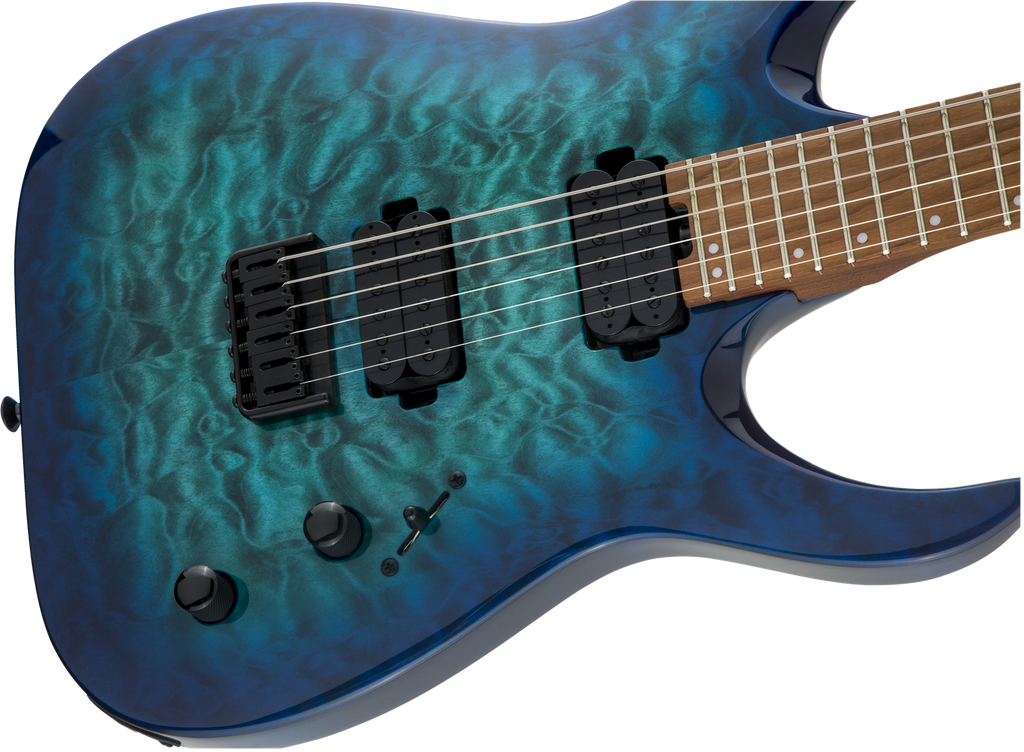

Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding uncovered direct mount Jackson MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull select feature.

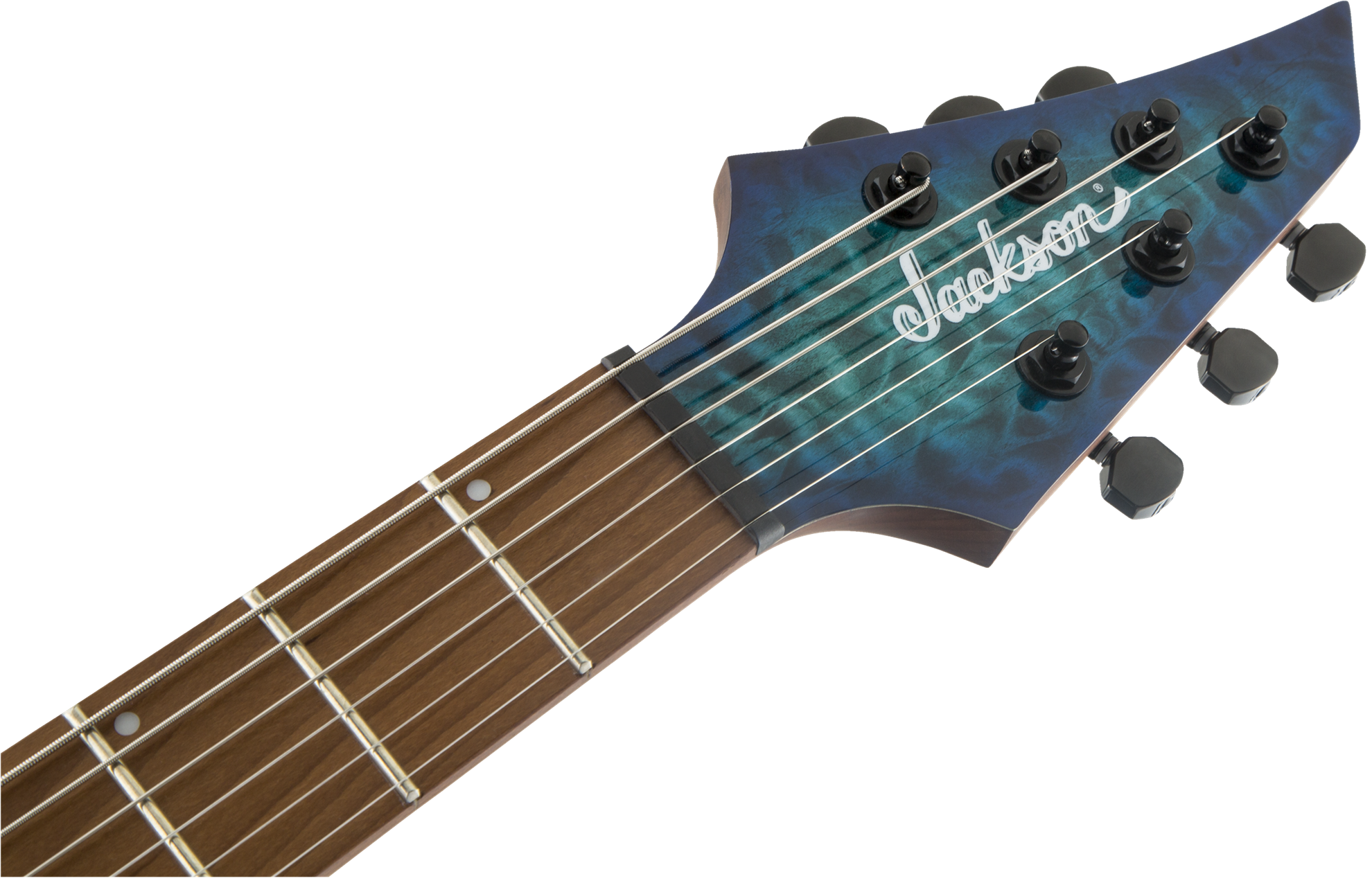

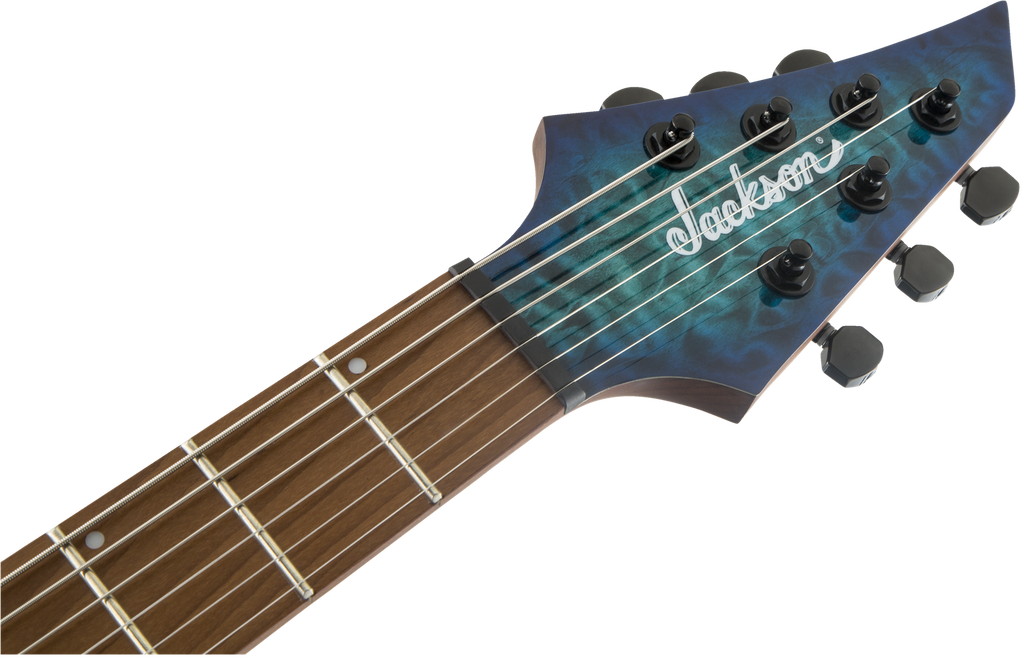

Available in a stage-stealing Chlorine Burst finish with matching reverse Jackson 3x3 AT-1 headstock, this axe also features a Jackson HT6 string-through-body hardtail bridge, Jackson-sealed die-cast locking tuners and black hardware.
Mansoor’s pursuit of perfect tone led to the custom-voiced MM1 pickups. They feature balanced tone and dynamic sound that respond well to aggressive pick attacks but remain clear to let every chord ring through.
Specifications
GENERAL
- MODEL NUMBER: 2914006521
- SERIES: Artist Signature
- COLOR: Chlorine Burst
- NUMBER OF STRINGS: 6
- ORIENTATION: Right-Hand
BODY
- BODY FINISH: Gloss
- BODY SHAPE: Juggernaut
- BODY MATERIAL: Basswood
- BODY TOP: Quilt Maple
MISCELLANEOUS
- STRINGS: Nickel Plated Steel (.009-.042 Gauges)
- STRAP :BUTTONS Dunlop® Dual-Locking
NECK
- NECK MATERIAL: Caramelized Maple
- NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement and Scarf Joint
- NECK FINISH: Oiled
- NECK BINDING: None - Rolled Fingerboard Edges
- SCALE LENGTH: 25.5" (648 mm)
- FINGERBOARD RADIUS: 20" (508 mm)
- FINGERBOARD MATERIAL: Caramelized Maple
- NUMBER OF FRETS: 24
- FRET SIZE: Jumbo
- NUT MATERIAL: Black Plastic
- NUT WIDTH: 1.6875" (42.86 mm)
- POSITION INLAYS: Offset White Dot
- TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel

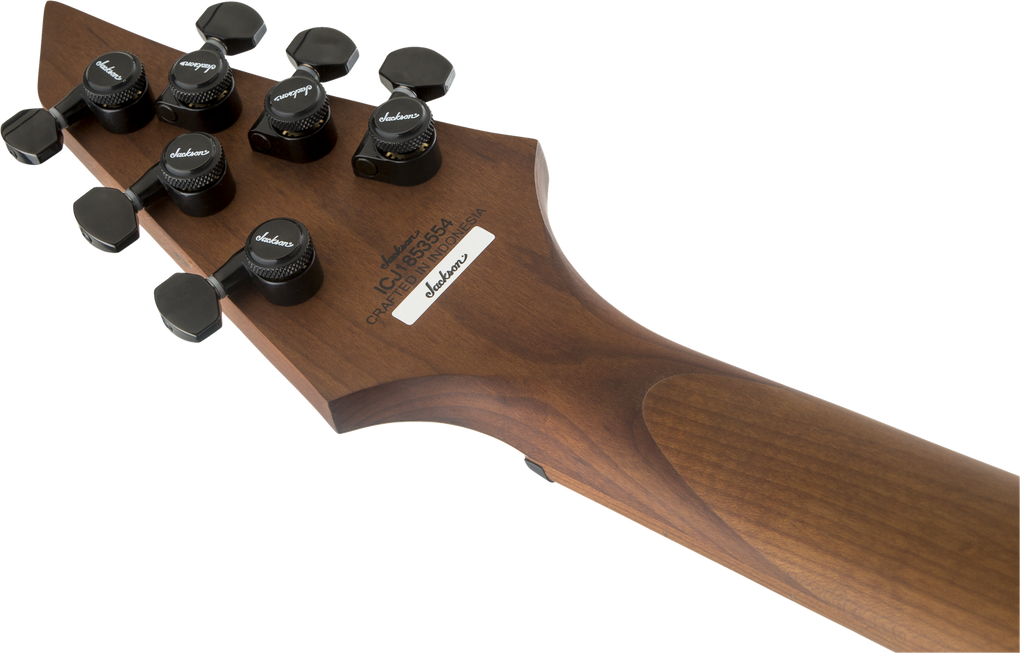

- HEADSTOCK: Reverse Jackson® AT-1 3x3 (3 Over/3 Under)
- NECK PLATE: 4-Bolt (recessed screws)
HARDWARE
- BRIDGE: Jackson® HT6 String-Through-Body Hardtail
- HARDWARE FINISH: Black

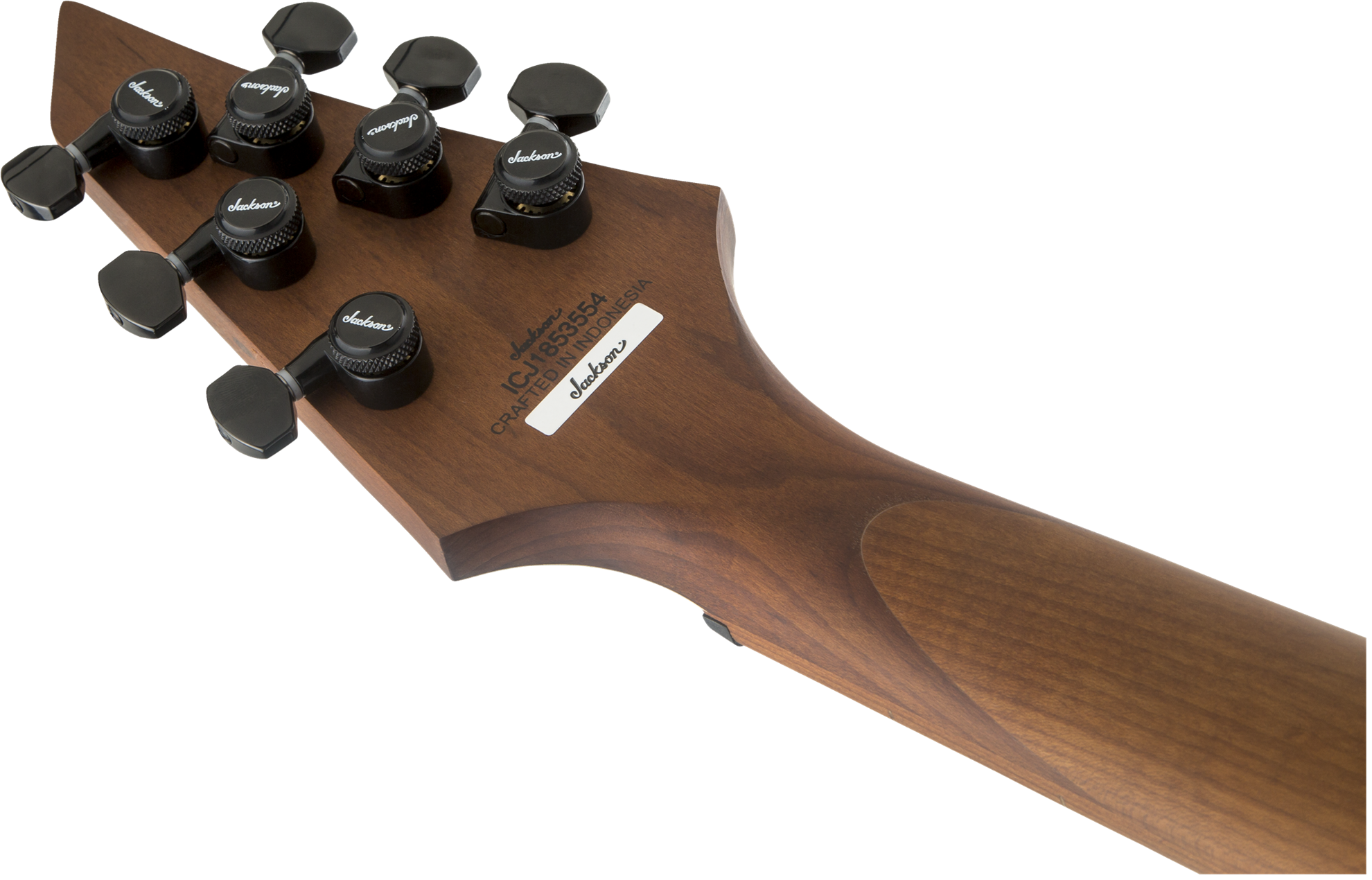

- TUNING MACHINES: Jackson® Sealed Die-Cast Locking
- PICKGUARD: None
- CONTROL KNOBS: Dome-Style
- SWITCH TIP: Black
- SADDLE HEIGHT WRENCH: Yes
ELECTRONICS
- BRIDGE PICKUP: Jackson® Uncovered MM1
- NECK PICKUP: Jackson® Uncovered MM1
- PICKUP COLOR: Black
- CONTROLS: Volume, Tone (with Push/Pull Select Feature)
- PICKUP SWITCHING: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
- CONFIGURATION: HH
